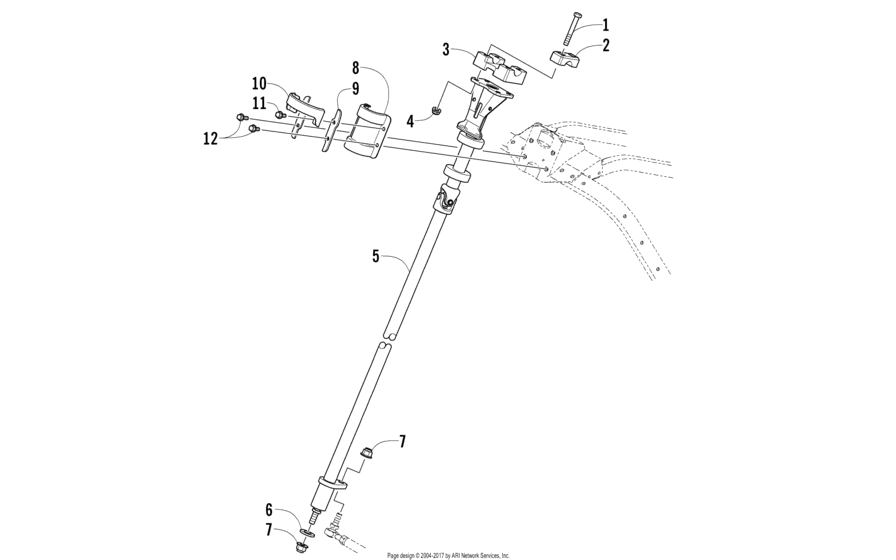

Steering Post Assembly (98208) Diagram Arctic Cat F5 F5 EFI
- Model code
- S2013F5CEFUSO
- Engine Capacity
- 499
- Year
- 2013
- Commercial Name
- F5 EFI
- Sales region
- General
- Colour
- Orange
- Model
- F5 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8002-138 ScrewCap (inc. 25) |
8002-138 |
US $6.70 |
||
|
2
|
2
0605-506 CapAdjusting block (inc. 25) |
0605-506 |
US $13.99 |
||
|
3
|
3
0605-507 BlockAdjusting (inc. 25) |
0605-507 |
US $61.36 |
||
|
4
|
4
8047-426 NutLock (inc. 25) |
8047-426 |
US $8.80 |
||
|
5
|
5
1705-353 PostSteering (inc. 25) |
1705-353 |
US $391.95 |
||
|
6
|
6
8050-282 Washer(inc. 25) |
8050-282 |
from US $1.60 |
||
|
7
|
7
8427-002 NUT,HEX FLG-NYL LOCK M10X1.25Lock (inc. 25) |
8427-002 |
from US $5.56 |
||
|
8
|
8
1705-087 BracketBearing (inc. 25) |
1705-087 |
US $58.43 |
||
|
9
|
9
1705-201 PlateBearing bracket (inc. 25) |
1705-201 |
US $6.88 |
||
|
10
|
10
0605-993 BracketWire protector (inc. 25) |
0605-993 |
US $15.91 |
||
|
11
|
11
8408-621 ScrewCap (inc. 25) |
8408-621 |
US $5.36 |
||
|
12
|
12
8408-617 ScrewCap (inc. 25) |
8408-617 |
US $9.04 |
