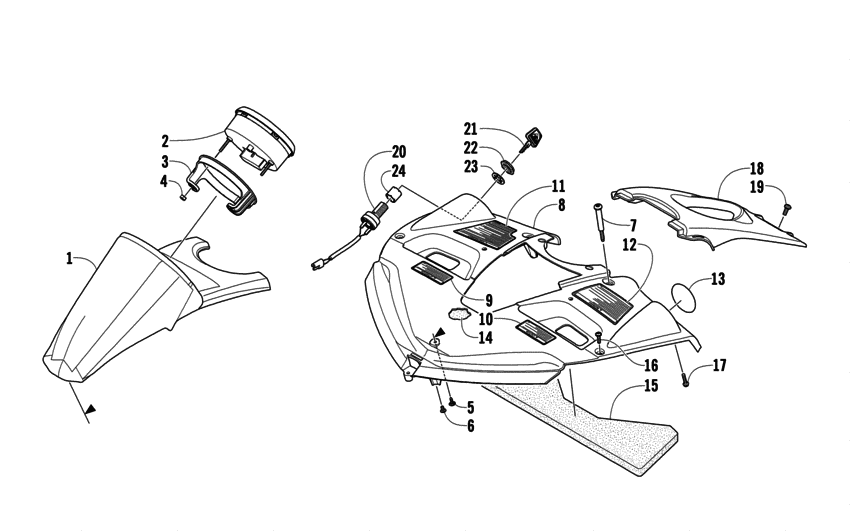

Console Assembly Diagram Arctic Cat F8 F8 EFI Sno Pro
- Model code
- S2010F8HEFUSG
- Engine Capacity
- 794
- Year
- 2010
- Commercial Name
- F8 EFI Sno Pro
- Sales region
- General
- Colour
- Green
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- F8 EFI Sno Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4606-575
Housing
|
4606-575 |
— | ||
|
2
|
2
0620-356 Speedometer/tachometer |
0620-356 |
US $513.12 |
||
|
3
|
3
0620-322 BracketRetaining |
0620-322 |
US $10.94 |
||
|
4
|
4
0423-493 Nut w/washer |
0423-493 |
US $2.15 |
||
|
5
|
5
1623-129 ScrewSelf-tapping |
1623-129 |
US $3.34 |
||
| replacement | |||||
|
5
|
5
2623-166 Screw, Self-Tapping |
2623-166 |
US $10.40 |
||
|
6
|
6
1623-661 ScrewSelf-tapping |
1623-661 |
US $16.95 |
||
|
7
|
7
1623-669 ScrewShoulder |
1623-669 |
US $50.44 |
||
|
8
|
8
2718-831
Console
inc. 9-13 ; |
2718-831 |
— | ||
|
9
|
9
7611-574 DecalFrench; caution |
7611-574 |
US $15.39 |
||
|
10
|
10
7611-575 DecalEnglish; caution |
7611-575 |
US $15.39 |
||
|
11
|
11
8611-848 DecalFrench; warning |
8611-848 |
US $16.80 |
||
|
12
|
12
8611-849 DecalEnglish; warning |
8611-849 |
US $16.80 |
||
|
13
|
13
1411-798 DecalAircat |
1411-798 |
US $12.18 |
||
|
14
|
14
0617-558 FoamFront; console |
0617-558 |
US $28.06 |
||
|
15
|
15
0617-559 FoamRear; console |
0617-559 |
US $47.53 |
||
|
16
|
16
1623-618 ScrewSelf-tapping |
1623-618 |
US $9.22 |
||
|
17
|
17
0623-785 ScrewSelf-tapping |
0623-785 |
US $8.80 |
||
|
18
|
18
4606-477 Close-offHandlebar |
4606-477 |
US $29.71 |
||
|
19
|
19
0423-396 ScrewSelf-tapping |
0423-396 |
US $8.92 |
||
|
20
|
20
0609-728 SwitchIgnition inc. 21 ; |
0609-728 |
US $50.82 |
||
|
22
|
22
0609-113 NutRetaining |
0609-113 |
US $36.25 |
||
|
23
|
23
0123-899
Washer
|
0123-899 |
— | ||
|
24
|
24
0609-450
Spacer
|
0609-450 |
— | ||
