	Description	OEM Part #	Price
	2611-461 Template Side pod Not Illustrated;	2611-461	US $5.35
	0639-052 Optional kit	0639-052	—
1	1 0602-785 Lever Shift	0602-785	US $29.86
2	2 0602-152 Knob Shift lever	0602-152	US $14.04
3	3 0702-281 Arm Shift lever	0702-281	US $65.97
4	4 8070-312 Pin Roll	8070-312	US $10.80
	replacement
4	4 0623-542 Pin Roll	0623-542	US $12.80
5	5 0702-278 Bracket Shift pivot	0702-278	US $118.34
6	6 8043-422 Nut Lock	8043-422	US $3.40 ~~US $3.40~~
7	7 0617-094 Seal Shift lever	0617-094	US $3.79
8	8 0623-130 Washer Spring	0623-130	US $7.60
9	9 0123-458 Pin Cotter	0123-458	US $5.80
10	10 8002-132 Screw Cap	8002-132	US $4.80
11	11 8050-242 Washer	8050-242	US $28.20
12	12 1611-583 Decal Caution-reverse	1611-583	US $23.50
13	13 0702-216 Link	0702-216	—
14	14 0602-322 Rod End	0602-322	US $22.37
15	15 0123-144 Nut Jam	0123-144	US $0.22
16	16 0602-611 Rod Shift	0602-611	US $21.77
17	17 0623-260 Nut L.h. thds.; jam	0623-260	US $5.45
18	18 0602-305 Rod end	0602-305	US $21.03
19	19 0602-297 Bearing Spherical	0602-297	US $54.78
20	20 0630-011 Switch	0630-011	US $65.60
21	21 0630-013 Boot	0630-013	US $21.03
22	22 0686-121 Harness Reverse alarm	0686-121	US $47.30
23	23 0630-010 Alarm Reverse	0630-010	US $84.69
24	24 0630-017 Ring Rev alarm; retaining	0630-017	US $13.42
25	25 8050-242 Washer	8050-242	US $28.20
26	26 0645-221 Spacer	0645-221	US $7.42
27	27 8050-247 Washer	8050-247	US $9
28	28 0645-233 Bracket Support	0645-233	US $24.33
29	29 8002-139 Screw	8002-139	—

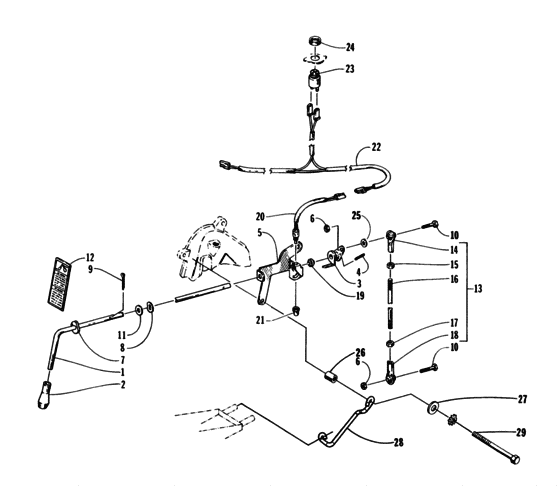

Reverse shift lever assembly Diagram Arctic Cat JAG JAG Liquid General 10950281-696829
