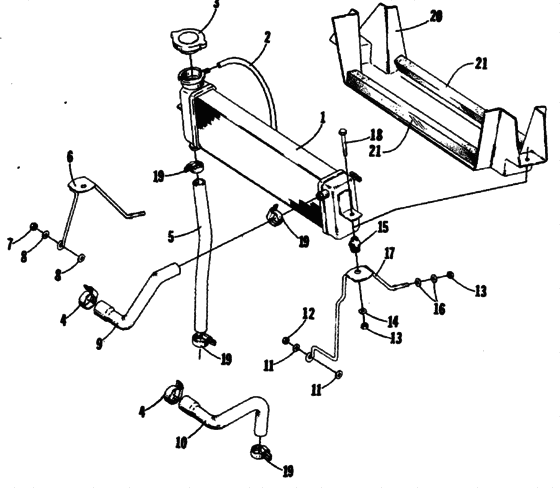

Cooling system Diagram Arctic Cat PANTERA Pantera
- Model code
- 0650-004-1986
- Year
- 1986
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0115-649
Radiator
|
0115-649 |
— | ||
|
2
|
2
0610-016 Hose25 ft |
0610-016 |
US $123.18 |
||
|
3
|
3
0115-151
Cap
|
0115-151 |
— | ||
|
4
|
4
0214-015 ClampHose |
0214-015 |
US $6.66 |
||
|
5
|
5
0115-081
Hose
|
0115-081 |
— | ||
|
6
|
6
0115-609
Bracket-right
|
0115-609 |
— | ||
|
7
|
7
8041-486 NutLock |
8041-486 |
US $5.80 |
||
|
8
|
8
8050-277 Washer |
8050-277 |
US $10.75 |
||
|
9
|
9
0115-082
Hose
|
0115-082 |
— | ||
|
10
|
10
0115-080
Hose
|
0115-080 |
— | ||
|
11
|
11
8050-272 Washer |
8050-272 |
US $2.15 |
||
|
12
|
12
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
13
|
13
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
14
|
14
8050-222 Washer |
8050-222 |
US $17.60 |
||
|
15
|
15
0123-868 MountRadiator |
0123-868 |
US $58.63 |
||
|
16
|
16
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
17
|
17
0115-079 Bracket-left |
0115-079 |
US $14.87 |
||
|
18
|
18
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
19
|
19
0214-012
Clamp
|
0214-012 |
— | ||
|
20
|
20
0115-612
Air duct-lower
|
0115-612 |
— | ||
|
21
|
21
0115-686 Foam |
0115-686 |
US $37.05 |
||
| replacement | |||||
|
21
|
21
0617-035
Foam
|
0617-035 |
— | ||
