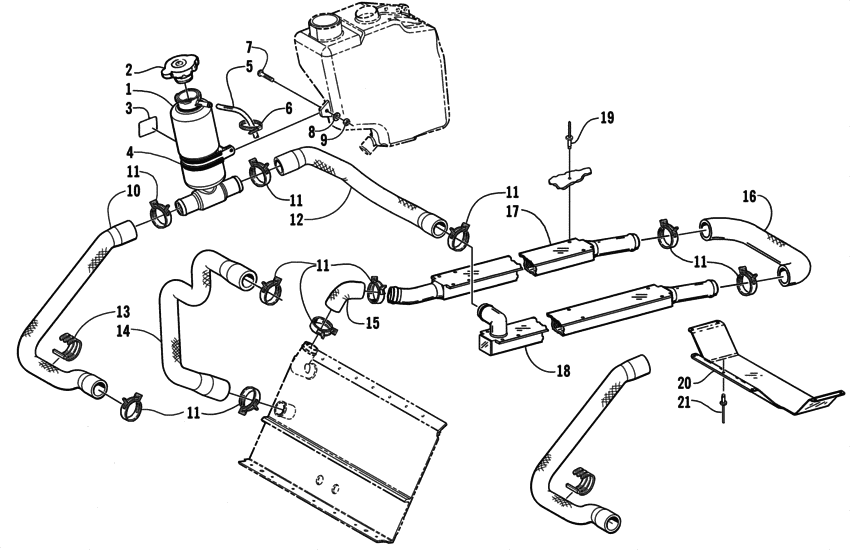

Cooling assembly Diagram Arctic Cat PANTERA Pantera 550
- Model code
- S2002PTCCAUSC
- Engine Capacity
- 550
- Year
- 2002
- Commercial Name
- Pantera 550
- Sales region
- General
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1606-396
Tank
|
1606-396 |
— | ||
|
2
|
2
0606-268 Cap |
0606-268 |
US $22.94 |
||
|
3
|
3
2611-758 DecalFuel tank; fill level |
2611-758 |
US $9.93 |
||
|
4
|
4
0623-761 Clamp |
0623-761 |
US $3.86 |
||
|
5
|
5
0610-016 Hose25 ft |
0610-016 |
US $123.18 |
||
|
5
|
5
0610-015 Hose100 ft |
0610-015 |
US $326.26 |
||
|
6
|
6
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
7
|
7
8017-580 ScrewCap |
8017-580 |
US $28.80 |
||
|
8
|
8
8050-217 Washer |
8050-217 |
US $3 |
||
|
9
|
9
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
10
|
10
0610-378 HoseEngine/coolant pump |
0610-378 |
US $49.78 |
||
|
11
|
11
0623-736 ClampHose |
0623-736 |
US $7.88 |
||
|
12
|
12
0610-379 HoseCoolant tank/left exchanger |
0610-379 |
US $72.38 |
||
|
13
|
13
0623-540 ProtectorHose |
0623-540 |
US $12 |
||
|
14
|
14
0610-336 HoseEngine/front exchanger; coolant |
0610-336 |
US $60.74 |
||
|
15
|
15
0610-244 HoseFront exchanger/left; coolant |
0610-244 |
US $24.24 |
||
|
16
|
16
0610-361 HoseRear; coolant |
0610-361 |
US $44.81 |
||
|
17
|
17
0716-838 Heat exchangerRight tube |
0716-838 |
US $193.14 |
||
|
18
|
18
0716-839 Heat exchangerLeft tube |
0716-839 |
US $251.71 |
||
|
19
|
19
8060-706 Rivet |
8060-706 |
US $5.80 |
||
|
20
|
20
1606-411 GuardCoolant hose |
1606-411 |
US $130.43 |
||
|
21
|
21
8060-504 Rivet |
8060-504 |
US $8.60 |
