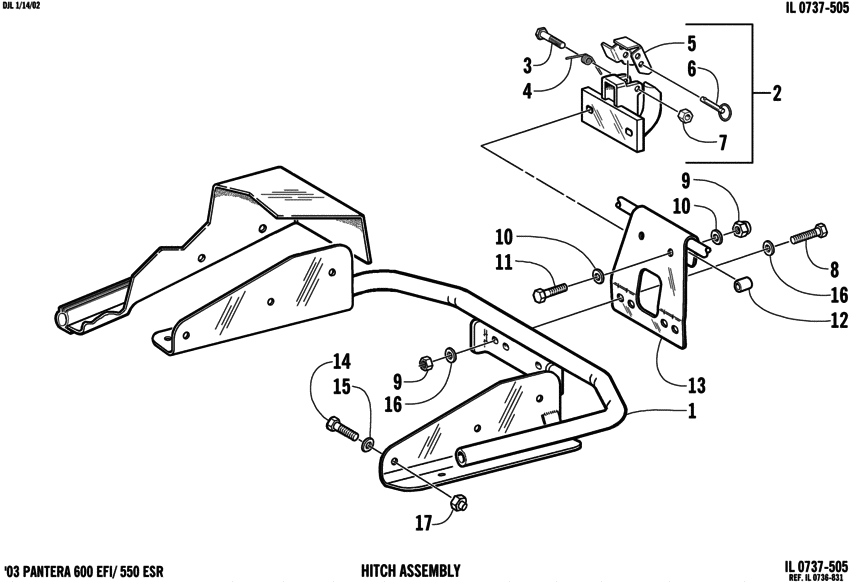

Hitch Assembly (International) Diagram Arctic Cat PANTERA Pantera 550
- Model code
- S2003PTCCAUSC
- Engine Capacity
- 550
- Year
- 2003
- Commercial Name
- Pantera 550
- Sales region
- General
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1706-093 SupportHitch |
1706-093 |
US $202.19 |
||
|
2
|
2
0706-727 Hitch assemblyinc. 3-7 ; |
0706-727 |
US $110.50 |
||
|
3
|
3
8002-046 ScrewCap |
8002-046 |
US $15 |
||
|
4
|
4
0623-335 Spring |
0623-335 |
US $15.39 |
||
|
5
|
5
0606-997 LatchHitch |
0606-997 |
US $15.39 |
||
| replacement | |||||
|
5
|
5
2706-229 LatchHitch |
2706-229 |
US $15.39 |
||
|
6
|
6
0623-213 Pin |
0623-213 |
US $24.45 |
||
|
7
|
7
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
8
|
8
8002-134
Screw
|
8002-134 |
— | ||
|
9
|
9
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
10
|
10
8050-247 Washer |
8050-247 |
US $9 |
||
|
11
|
11
8002-135 ScrewCap |
8002-135 |
US $2.85 |
||
|
12
|
12
0605-066 AxleDrag link |
0605-066 |
US $27.16 |
||
|
13
|
13
2606-098
Bracket
|
2606-098 |
— | ||
| replacements | |||||
|
13
|
13
2706-230
Bracket
|
2706-230 |
— | ||
|
13
|
13
2606-014
BRKT,HITCH/RACK MTG,TOURING(RB 2706-230)
|
2606-014 |
— | ||
|
14
|
14
8002-039 ScrewCap |
8002-039 |
US $2.30 |
||
|
15
|
15
8050-217 Washer |
8050-217 |
US $3 |
||
|
16
|
16
8050-252 Washer |
8050-252 |
US $8.80 |
||
|
17
|
17
0123-108 NutNylon cap |
0123-108 |
US $8.80 |
||
