Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1670-300 Pump Assembly; fuel inc. 2-16 ;	1670-300	US $598.25
2	2 2639-572 Kit inc. 3-4 ;	2639-572	—
3	3 0670-380 Connector Harness	0670-380	US $4.33
4	4 0670-381 O-ring Cylinder	0670-381	US $13.58
5	5 1670-412 Screw Harness; machine	1670-412	US $2.46
6	6 1670-119 Nut Fuel pump; retaining	1670-119	US $11.10
7	7 1670-118 Seal Fuel pump housing	1670-118	US $38.96
8	8 1670-414 Regulator Fuel	1670-414	US $156.99
9	9 1670-411 Spring Fuel pump assembly	1670-411	US $6.46
10	10 1670-244 Ring Retaining	1670-244	US $0.98
11	11 0670-460 Float arm Assembly; fuel sensor	0670-460	US $80.96
12	12 2639-571 Kit Fuel sensor	2639-571	US $54.54
13	13 1670-520 Clamp Hose	1670-520	US $5.90
14	14 1670-521 Hose Top; fuel pump	1670-521	US $72.22
15	15 1670-153 Pump Fuel	1670-153	US $428.02
16	16 1670-413 Housing Fuel pump	1670-413	US $69.43
17	17 0610-075 Hose 10' roll; gas	0610-075	US $138.92
18	18 1670-140 Pickup Fuel	1670-140	US $69.43
	replacement
18	18 1670-619 Pickup Fuel	1670-619	US $64.45
19	19 1670-088 Pickup Fuel	1670-088	US $85.56
	replacement
19	19 1670-618 Pickup Fuel	1670-618	US $85.56
20	20 0610-563 Clamp Hose	0610-563	US $9.40
21	21 0670-235 Fitting	0670-235	—
22	22 0610-419 Clamp Hose	0610-419	US $10.12
23	23 0623-373 Clamp Hose	0623-373	US $7.68

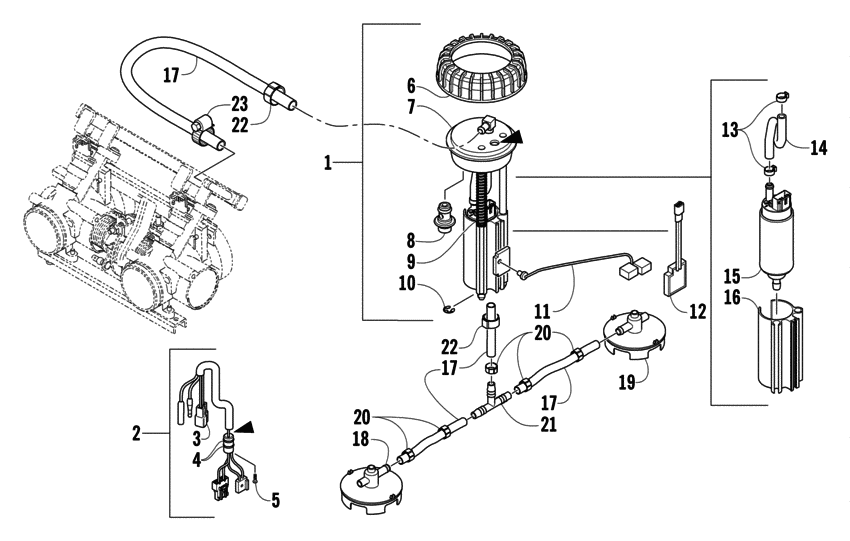

Fuel Pump Assembly Diagram Arctic Cat PANTERA Pantera 800 EFI Black General 10998596-698012
