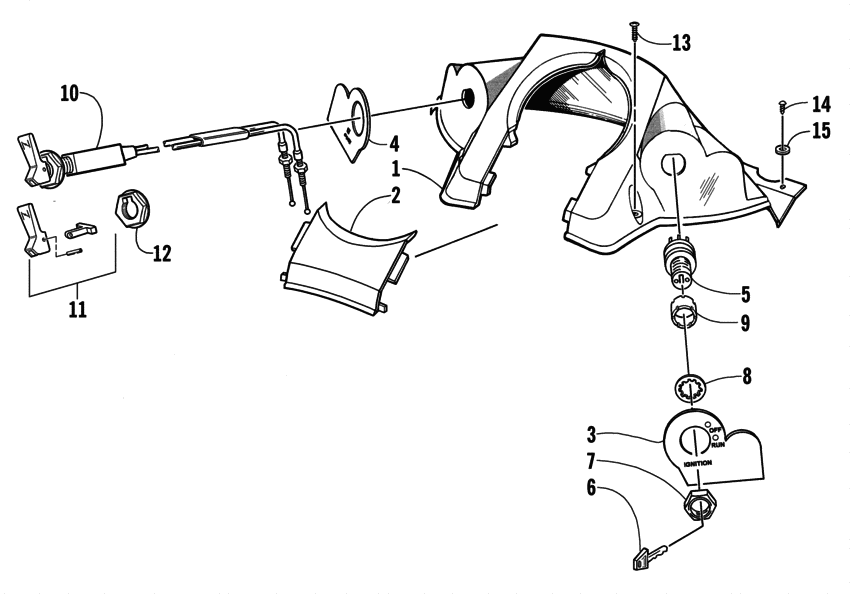

Console And Switch Assembly Diagram Arctic Cat PANTHER Panther 440
- Model code
- S2002PABFCUSG
- Engine Capacity
- 431
- Year
- 2002
- Commercial Name
- Panther 440
- Sales region
- General
- Colour
- Green
- Power
- 50 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Panther 440
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2606-060 Console |
2606-060 |
US $142.64 |
||
| replacement | |||||
|
1
|
1
1606-735 Console |
1606-735 |
US $142.64 |
||
|
2
|
2
2606-068 DoorConsole |
2606-068 |
US $43.98 |
||
|
3
|
3
2611-678 DecalRight; console |
2611-678 |
US $36.08 |
||
|
4
|
4
2611-867 DecalLeft; console |
2611-867 |
US $36.08 |
||
|
5
|
5
0609-286 SwitchMulti-key; ignition inc. 6 ; |
0609-286 |
US $61.98 |
||
|
7
|
7
0609-113 NutRetaining |
0609-113 |
US $36.25 |
||
|
8
|
8
0123-899
Washer
|
0123-899 |
— | ||
|
9
|
9
0609-450
Spacer
|
0609-450 |
— | ||
|
10
|
10
0687-007 CableChoke inc. 11 ; |
0687-007 |
US $149.76 |
||
|
11
|
11
0636-062 Choke lever kit |
0636-062 |
US $11.54 |
||
|
12
|
12
0623-054 NutChock lever; retaining |
0623-054 |
US $10.41 |
||
|
13
|
13
0623-219 ScrewTapping |
0623-219 |
US $5.20 |
||
|
14
|
14
0623-378 ScrewSelf-tapping |
0623-378 |
US $5.35 |
||
|
15
|
15
8050-157 Washer |
8050-157 |
US $33 |
||
