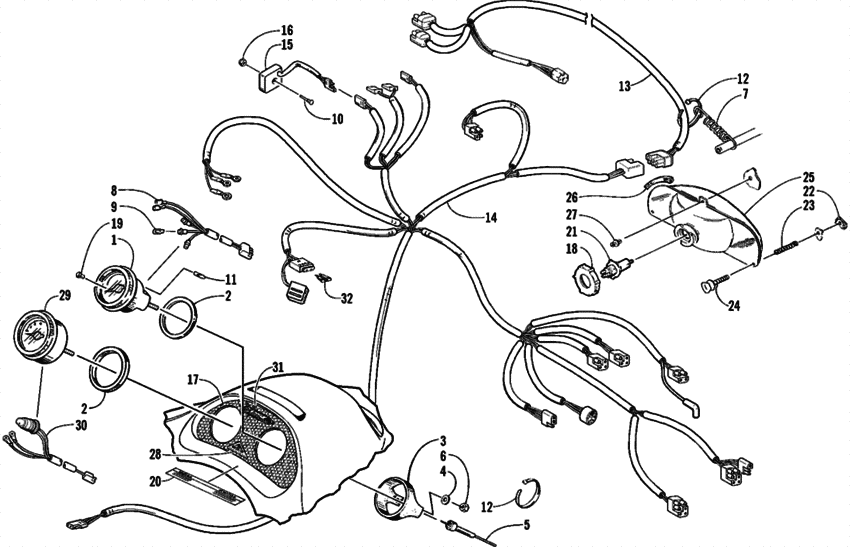

Headlight, Instruments, And Wiring Assemblies Diagram Arctic Cat PANTHER Panther 550
- Model code
- S2000PACAAUS-2000
- Engine Capacity
- 550
- Year
- 2000
- Commercial Name
- Panther 550
- Sales region
- General
- Colour
- Silver
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Panther 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0620-238 SpeedometerInc. 7-8 |
0620-238 |
US $203.11 |
||
|
1
|
1
0620-239 Speedometer |
0620-239 |
US $257.96 |
||
|
2
|
2
0620-135 RingRubber cushion |
0620-135 |
US $3.64 |
||
|
3
|
3
0620-134 BackclampSpeedometer/tachometer |
0620-134 |
US $16.06 |
||
|
4
|
4
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
5
|
5
0620-113 SpeedometerCable |
0620-113 |
US $63.21 |
||
| replacement | |||||
|
5
|
5
0620-269 CableSpeedometer |
0620-269 |
US $63.21 |
||
|
6
|
6
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
7
|
7
0623-199 SpringHood |
0623-199 |
US $29.90 |
||
|
8
|
8
0620-151 HarnessSpeedometer bulb |
0620-151 |
US $118.70 |
||
|
9
|
9
0620-149 BulbSpeedometer |
0620-149 |
US $5.87 |
||
|
10
|
10
8002-045
Screw
|
8002-045 |
— | ||
|
11
|
11
0230-020 Bulb |
0230-020 |
US $5.92 |
||
|
12
|
12
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
13
|
13
0686-513 HarnessHeadlight |
0686-513 |
US $90.93 |
||
|
14
|
14
0686-637 HarnessMain |
0686-637 |
US $285.36 |
||
|
15
|
15
0630-105 RegulatorVoltage |
0630-105 |
US $65.71 |
||
|
16
|
16
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
17
|
17
3611-438 DecalHood; instrument |
3611-438 |
US $19.87 |
||
|
18
|
18
0609-296 CollarLocking |
0609-296 |
US $12.71 |
||
|
19
|
19
0620-073 KnobTripmeter |
0620-073 |
US $15.39 |
||
|
20
|
20
2611-973 DecalFuel; caution |
2611-973 |
US $135.79 |
||
|
21
|
21
0109-724 BulbQuartz |
0109-724 |
US $34.67 |
||
| replacement | |||||
|
21
|
21
0609-956 BULB,H4 60/55 LL |
0609-956 |
US $15.58 |
||
|
22
|
22
0123-539
Nut
|
0123-539 |
— | ||
|
23
|
23
0623-466 SpringHeadlight; adjuster |
0623-466 |
US $11.80 |
||
|
24
|
24
0623-695 ScrewThumb |
0623-695 |
US $12.88 |
||
|
25
|
25
0609-245 Lens/reflectorHeadlight |
0609-245 |
US $145.13 |
||
|
26
|
26
0617-173
Seal
|
0617-173 |
— | ||
|
27
|
27
0623-362 RivetPlastic |
0623-362 |
US $4.40 |
||
|
28
|
28
3611-611
Decal
|
3611-611 |
— | ||
|
29
|
29
0620-236 TachometerInc. 30 |
0620-236 |
US $310.30 |
||
|
30
|
30
0620-215 HarnessTachometer bulb |
0620-215 |
US $118.70 |
||
|
31
|
31
3611-581 Decal"esr" |
3611-581 |
US $19.89 |
||
|
32
|
32
0630-100
Fuse
|
0630-100 |
— | ||
