Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0620-238 Speedometer Inc. 7-8 inc. 2-5 ;	0620-238	US $203.11
2	2 0620-073 Knob Tripmeter	0620-073	US $15.39
3	3 0620-151 Harness Speedometer bulb inc. 4-5 ;	0620-151	US $118.70
4	4 0620-149 Bulb Speedometer	0620-149	US $5.87
5	5 0230-020 Bulb	0230-020	US $5.92
6	6 0620-135 Ring Rubber cushion	0620-135	US $3.64
7	7 0620-134 Backclamp Speedometer/tachometer	0620-134	US $16.06
8	8 8050-212 Washer	8050-212	US $10.20
9	9 0623-038 Nut w/washer	0623-038	US $2.15
10	10 0620-269 Cable Speedometer	0620-269	US $63.21
11	11 0123-788 Tie Cable	0123-788	US $2.90
12	12 0686-515 Harness Hood	0686-515	US $121.53
13	13 0686-576 Harness Main	0686-576	US $194.40
14	14 0630-142 Regulator Voltage	0630-142	US $68.17
15	15 8002-044 Screw Cap	8002-044	US $28.90 ~~US $28.90~~
16	16 8041-366 Nut Lock	8041-366	US $4.30
17	17 8050-217 Washer	8050-217	US $3
18	18 0623-466 Spring Headlight; adjuster	0623-466	US $11.80
19	19 0623-467 Screw Thumb	0623-467	US $0.48
20	20 0623-757 Nut Speed	0623-757	US $13.50
21	21 0609-250 Lens/reflector Headlight	0609-250	US $168.68
22	22 0609-252 Bulb Low beam; headlight	0609-252	US $28.47
23	23 0609-251 Bulb High beam; headlight	0609-251	US $34.98
24	24 0623-847 Clip Hairpin	0623-847	US $6.65
25	25 2606-069 Plug Gauge hole Included in Hood w/Decals;	2606-069	US $5.48
26	26 4611-662 Decal Hood; instrument Included in Hood w/Decals;	4611-662	US $44.60
27	27 3611-611 Decal Included in Hood w/Decals;	3611-611	—

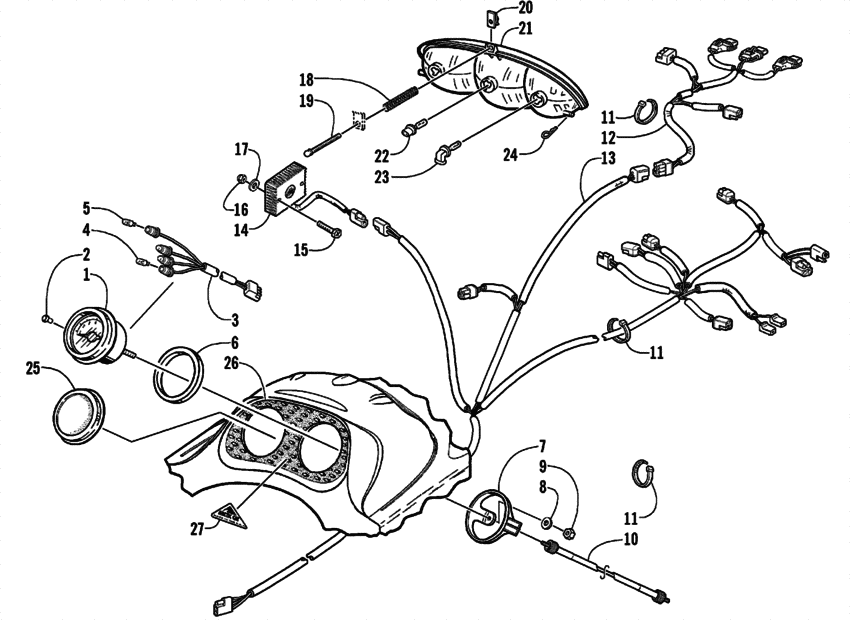

Headlight, Instruments, And Wiring Assemblies Diagram Arctic Cat Z-series Z570 Green General 10992311-697778
