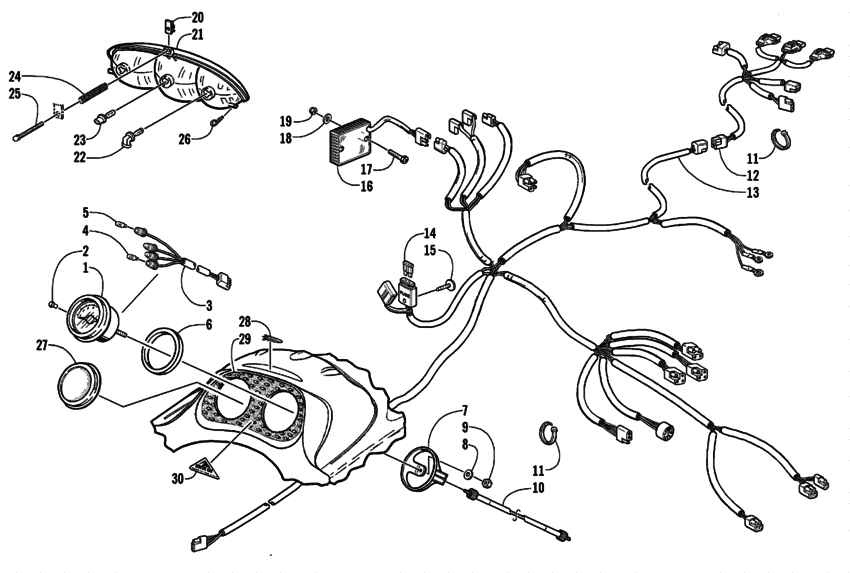

Headlight, Instruments, And Wiring Assemblies (ESR) Diagram Arctic Cat Z-series Z570
- Model code
- S2003ZADFCUSG
- Engine Capacity
- 565
- Year
- 2003
- Commercial Name
- Z570
- Sales region
- General
- Colour
- Green
- Power
- 70 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Z570
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0620-238 SpeedometerInc. 7-8 inc. 2-5 ; |
0620-238 |
US $203.11 |
||
|
2
|
2
0620-073 KnobTripmeter |
0620-073 |
US $15.39 |
||
|
3
|
3
0620-151 HarnessSpeedometer bulb inc. 4-5 ; |
0620-151 |
US $118.70 |
||
|
4
|
4
0620-149 BulbSpeedometer |
0620-149 |
US $5.87 |
||
|
5
|
5
0230-020 Bulb |
0230-020 |
US $5.92 |
||
|
6
|
6
0620-135 RingRubber cushion |
0620-135 |
US $3.64 |
||
|
7
|
7
0620-134 BackclampSpeedometer/tachometer |
0620-134 |
US $16.06 |
||
|
8
|
8
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
9
|
9
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
10
|
10
0620-269 CableSpeedometer |
0620-269 |
US $63.21 |
||
|
11
|
11
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
12
|
12
0686-515 HarnessHood |
0686-515 |
US $121.53 |
||
|
13
|
13
0686-765 HarnessMain inc. 14 ; |
0686-765 |
US $200.63 |
||
|
14
|
14
0630-100
Fuse
|
0630-100 |
— | ||
|
15
|
15
0623-589 RetainerClip |
0623-589 |
US $5.50 |
||
|
16
|
16
0630-143 RegulatorVoltage |
0630-143 |
US $86.78 |
||
|
17
|
17
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
18
|
18
8050-217 Washer |
8050-217 |
US $3 |
||
|
19
|
19
8041-366 NutLock |
8041-366 |
US $4.30 |
||
|
20
|
20
0623-757 NutSpeed |
0623-757 |
US $13.50 |
||
|
21
|
21
0609-250 Lens/reflectorHeadlight |
0609-250 |
US $168.68 |
||
|
22
|
22
0609-251 BulbHigh beam; headlight |
0609-251 |
US $34.98 |
||
|
23
|
23
0609-252 BulbLow beam; headlight |
0609-252 |
US $28.47 |
||
|
24
|
24
0623-466 SpringHeadlight; adjuster |
0623-466 |
US $11.80 |
||
|
25
|
25
0623-467 ScrewThumb |
0623-467 |
US $0.48 |
||
|
26
|
26
0623-847 ClipHairpin |
0623-847 |
US $6.65 |
||
|
27
|
27
2606-069 PlugGauge hole Included in Hood w/Decals; |
2606-069 |
US $5.48 |
||
|
28
|
28
3611-581 Decal"esr" Included in Hood w/Decals; |
3611-581 |
US $19.89 |
||
|
29
|
29
4611-634 DecalHood; instrument Included in Hood w/Decals; |
4611-634 |
US $40.89 |
||
|
30
|
30
3611-611
Decal
Included in Hood w/Decals; |
3611-611 |
— |
