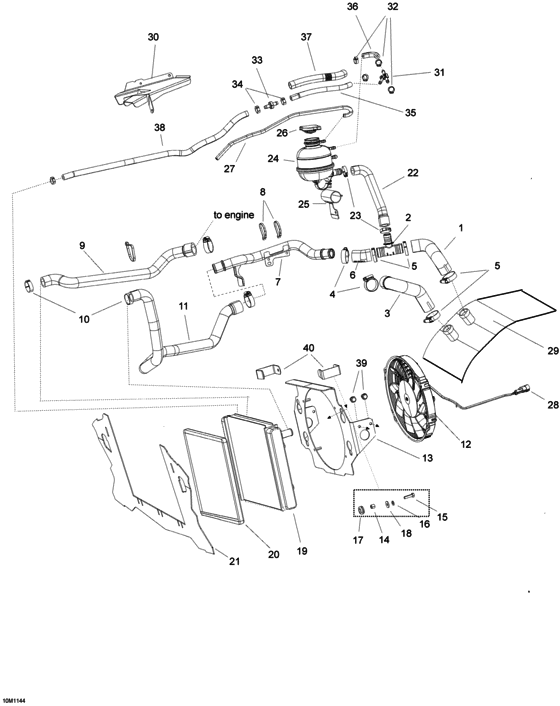

01- Cooling System Diagram Bombardier Expedition
- Year
- 2011
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000779
HOSE, T-FITTING->FRONT RADIATOR
|
509000779 |
— | ||
|
2
|
2
509000372 T-fitting |
509000372 |
US $10.52 |
||
|
3
|
3
509000592 HOSE, THERMOSTAT (RADIATOR) |
509000592 |
US $36.69 |
||
|
4
|
4
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
5
|
5
509000181 Bride serrage *gear clamp |
509000181 |
US $5.71 |
||
|
6
|
6
509000675 ENGINE INLET HOSE |
509000675 |
US $16.29 |
||
|
7
|
7
509000724 WATER PIPE ALUMINUM |
509000724 |
US $147.85 |
||
|
8
|
8
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
9
|
9
509000780 HOSE, FRONT RADIATOR ( AIR ENGINE) |
509000780 |
US $41.99 |
||
|
10
|
10
293650016 Bride serrage *clamp-tridon |
293650016 |
US $61.10 |
||
|
11
|
11
509000781 HOSE, FRONT RADIATOR (ENGINE) |
509000781 |
US $28.31 |
||
|
12
|
12
509-000-547
Cooling fan
|
509-000-547 |
— | ||
|
13
|
13
509000791 RADIATOR SUPPORT |
509000791 |
US $87.67 |
||
|
14
|
14
605453745 Douille *bushing |
605453745 |
US $11.17 |
||
|
15
|
15
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
16
|
16
M20052
Washer
|
M20052 |
— | ||
| replacement | |||||
|
16
|
16
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
17
|
17
293720053 Passe-fils *grommet |
293720053 |
US $40.50 |
||
|
18
|
18
234062410 Washer-flat din.9021b |
234062410 |
US $10 |
||
|
19
|
19
509000787 Radiator |
509000787 |
US $207.01 |
||
|
20
|
20
509000718 D- SEAL 9 X10 |
509000718 |
US $54.03 |
||
|
21
|
21
509000700 AIR DEFLECTOR |
509000700 |
US $42.81 |
||
|
22
|
22
509000663 FILLING HOSE |
509000663 |
US $55.03 |
||
|
23
|
23
509000442 Clamp |
509000442 |
US $6.95 |
||
|
24
|
24
509000421 Res.antigel *tank-coolant |
509000421 |
US $84.61 |
||
|
25
|
25
509000782 TANK SUPPORT |
509000782 |
US $33.61 |
||
|
26
|
26
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
27
|
27
509000729
Hose
|
509000729 |
— | ||
|
28
|
28
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
29
|
29
509000645 RADIATOR TUNNEL |
509000645 |
US $744.58 |
||
|
30
|
30
509000751 HEAT DEFLECTOR |
509000751 |
US $42.81 |
||
|
31
|
31
293710140 Y-FITTING |
293710140 |
US $7.09 |
||
|
32
|
32
293650047 Bride serrage *clamp-oetiker |
293650047 |
US $21.70 |
||
|
33
|
33
509000153 Soupape retenue*valve-check |
509000153 |
US $17.29 |
||
|
34
|
34
293650140 Bride serrage *clamp-oetiker |
293650140 |
US $3.57 |
||
|
35
|
35
509000765 BOYAU FORME *HOSE-FORMED |
509000765 |
US $13.21 |
||
|
36
|
36
509000776 BOYAU *HOSE |
509000776 |
US $11.17 |
||
|
37
|
37
513033461
Gaine *protector tube
|
513033461 |
— | ||
|
38
|
38
509000758
Hose
|
509000758 |
— | ||
|
39
|
39
M40870
Screw-hex.taping
|
M40870 |
— | ||
|
40
|
40
509000703 DEFLECTOR CLIP |
509000703 |
US $36.69 |
||
