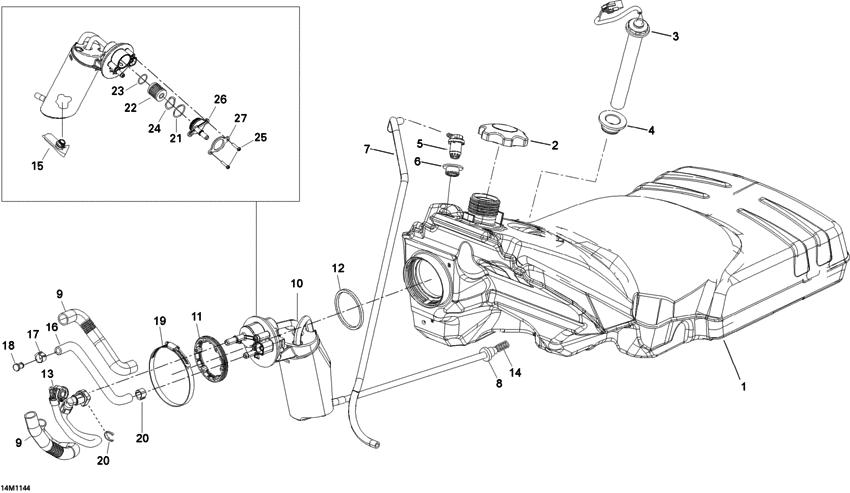

02- Fuel System Diagram Bombardier Expedition
- Year
- 2011
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513033386
Fuel tank
|
513033386 |
— | ||
|
2
|
2
513033025 Bouchon *cap |
513033025 |
US $27.27 |
||
|
3
|
3
513033538 Fuel sensor |
513033538 |
US $127.48 |
||
|
4
|
4
293720058 Passe-fils *grommet |
293720058 |
US $12.43 |
||
|
5
|
5
513033188
Check valve
|
513033188 |
— | ||
| replacement | |||||
|
5
|
5
513033842 CHECK VALVE |
513033842 |
US $46.82 |
||
|
6
|
6
513033596 GROMMET |
513033596 |
US $18.34 |
||
|
7
|
7
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
8
|
8
M28037
Passe-fil *grommet
|
M28037 |
— | ||
|
9
|
9
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
10
|
10
513033587
FUEL PUMP ASS Y
|
513033587 |
— | ||
| replacement | |||||
|
10
|
10
513033694 FUEL PUMP ASS Y |
513033694 |
US $457.44 |
||
|
11
|
11
513033180 Bague *ring |
513033180 |
US $22.44 |
||
|
12
|
12
513033334 Gasket |
513033334 |
US $25.82 |
||
|
13
|
13
513033583 BOYAU ASSEMBLEE*HOSE ASS`Y |
513033583 |
US $79.53 |
||
|
14
|
14
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
15
|
15
415129451
FUEL FILTER
|
415129451 |
— | ||
|
16
|
16
513033544 Boyau forme *hose-formed |
513033544 |
US $24.45 |
||
|
17
|
17
293650047 Bride serrage *clamp-oetiker |
293650047 |
US $21.70 |
||
|
18
|
18
293000107 PLUG, 8 MM |
293000107 |
US $8.45 |
||
|
19
|
19
513033628 ABA GEAR CLAMP |
513033628 |
US $19.87 |
||
|
20
|
20
513033582 BOYAU ASSEMBLEE*HOSE ASS`Y |
513033582 |
US $73.41 |
||
|
21
|
21
415129509 O-RING |
415129509 |
US $22.44 |
||
|
22
|
22
415129510 Filter, fuel |
415129510 |
US $30.26 |
||
|
23
|
23
415129511 O-RING |
415129511 |
US $21.47 |
||
|
24
|
24
415129512 RONDELLE*WAVE WASHER |
415129512 |
US $22.44 |
||
|
25
|
25
415129513 VIS*SCREW |
415129513 |
US $9.50 |
||
|
26
|
26
415-129-514
Couvercle*cover
|
415-129-514 |
— | ||
| replacement | |||||
|
26
|
26
415129685 COVER |
415129685 |
US $37.11 |
||
|
27
|
27
415129569 FUEL PUMP RING |
415129569 |
US $19.06 |
||
