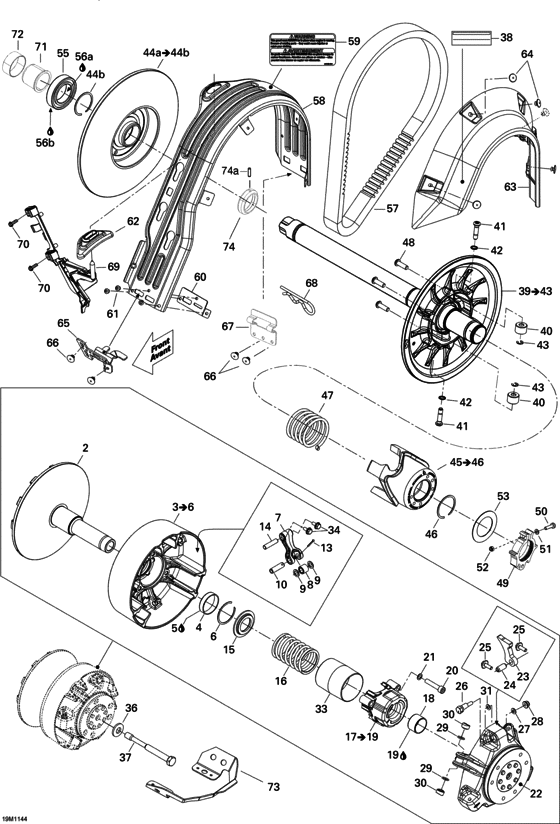

05- Pulley System Diagram Bombardier Expedition
- Year
- 2011
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
XXX
Not Sold
|
XXX |
— | ||
|
2
|
2
417222980 Flasque fixe as*flange-fixe ass |
417222980 |
US $426.33 |
||
|
3
|
3
417-223-065
Flasque coul.as*flange-slid.assy
|
417-223-065 |
— | ||
| replacement | |||||
|
3
|
3
417223093 Flasque ass. *flange ass y |
417223093 |
US $316.68 |
||
|
4
|
4
417223086 Coussinet *bushing |
417223086 |
US $41.99 |
||
|
5
|
5
293800118 Loctite 680 *loctite 680 |
293800118 |
US $60.23 |
||
|
5
|
5
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
6
|
6
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
7
|
7
417222671 Levier ass. *lever-assy |
417222671 |
US $54.71 |
||
|
8
|
8
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
9
|
9
417004302 Rondelle butee *washer-stopper |
417004302 |
US $20.49 |
||
|
10
|
10
417222594 Goupille *pin |
417222594 |
US $17.58 |
||
|
13
|
13
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
14
|
14
417223164 LEVER AXLE |
417223164 |
US $5.30 |
||
|
15
|
15
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
16
|
16
415015200 Ressort *spring |
415015200 |
US $49.93 |
||
|
17
|
17
417222759 Couv.ressort as*cover-spring assy. |
417222759 |
US $45.10 |
||
|
18
|
18
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
19
|
19
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
20
|
20
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
21
|
21
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
22
|
22
417222923
GOVERNOR CUP ASS.
|
417222923 |
— | ||
| replacement | |||||
|
22
|
22
417223473 CUVETTE REGUL.A*GOVERN.CUP ASSY. |
417223473 |
US $586.47 |
||
|
23
|
23
417223088 Rampe 617 *ramp 617 |
417223088 |
US $31.25 |
||
|
24
|
24
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
25
|
25
250000418 SERRATED HEX. FLANGE BOLT S.GR |
250000418 |
US $32.76 |
||
|
26
|
26
417223197 CALIBRATION SCREW |
417223197 |
US $57.99 |
||
|
27
|
27
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
28
|
28
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
29
|
29
732401030
Joint torique *o-ring
|
732401030 |
— | ||
|
30
|
30
417223021 Glissiere *shoe-slider |
417223021 |
US $7.96 |
||
|
31
|
31
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
33
|
33
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
34
|
34
250000416 SERRATED HEX. FLANGE BOLT M6 |
250000416 |
US $32.76 |
||
|
36
|
36
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
37
|
37
417300285 Boulon tra iv *bolt tra iv |
417300285 |
US $49.52 |
||
|
38
|
38
516004303 DECAL |
516004303 |
US $0.02 |
||
|
39
|
39
417-127-199
Flasque fixe as*flange-fix.ass
|
417-127-199 |
— | ||
| replacement | |||||
|
39
|
39
417127408 FLASQUE FIXE AS*FLANGE-FIX.ASS |
417127408 |
US $426.33 |
||
|
40
|
40
417127189 ROLLER |
417127189 |
US $31.25 |
||
|
41
|
41
417-127-128
Pivot *stud
|
417-127-128 |
— | ||
|
42
|
42
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
43
|
43
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
44a
|
44a
417126955 Flasque coul.as*flange-slid.as |
417126955 |
US $402.70 |
||
| replacement | |||||
|
44a
|
44a
417127317 SLIDING FLANGE ASS Y |
417127317 |
US $403.77 |
||
|
44b
|
44b
293370049 Anneau retenue *circlip |
293370049 |
US $6.68 |
||
|
45
|
45
417-127-206
Came assemble *cam ass y
|
417-127-206 |
— | ||
|
46
|
46
293370049 Anneau retenue *circlip |
293370049 |
US $6.68 |
||
|
47
|
47
417127151 Ressort rappel *spring-release |
417127151 |
US $35.65 |
||
|
48
|
48
250000283 Screw-torx button head m8 x 25 s.grip |
250000283 |
US $32.36 |
||
|
49
|
49
417127248
Adjustment Pulley Ass'y
|
417127248 |
— | ||
|
50
|
50
205052544 Screw-socket hd.din.912 |
205052544 |
US $21.40 |
||
|
51
|
51
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
52
|
52
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
53
|
53
417127155 Rondelle *washer |
417127155 |
US $10.08 |
||
|
55
|
55
504152574 Roulement bille*ball bearing |
504152574 |
US $40.04 |
||
|
56a
|
56a
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
56b
|
56b
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
57
|
57
417300377
Courroie *drive belt
|
417300377 |
— | ||
| replacement | |||||
|
57
|
57
417300531 DRIVE BELT |
417300531 |
US $240.69 |
||
|
58
|
58
417300382 Garde courroie *belt guard |
417300382 |
US $84.61 |
||
|
59
|
59
516004649 SECURITY LABEL, BELT GUARD |
516004649 |
US $9.13 |
||
|
60
|
60
417300380 Renfort *reinforcement |
417300380 |
US $5.07 |
||
|
61
|
61
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
62
|
62
417300381 Guide *guide |
417300381 |
US $8.13 |
||
|
63
|
63
417300356 Prot.lateral *side protector assy |
417300356 |
US $16.71 |
||
|
64
|
64
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
65
|
65
417300363 Belt guard bracket |
417300363 |
US $12.19 |
||
|
66
|
66
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
66
|
66
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
67
|
67
417300373 BELT GUARD BRACKET |
417300373 |
US $37.11 |
||
|
68
|
68
114045200 Goup.surete *pin-hair |
114045200 |
US $53.45 |
||
|
69
|
69
417300396 BELT GUARD BRACKET |
417300396 |
US $12.19 |
||
|
70
|
70
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
71
|
71
504-152-989
Protective rubber
|
504-152-989 |
— | ||
|
72
|
72
504153034 PROTECTIVE RING |
504153034 |
US $20.37 |
||
|
73
|
73
518326566 PULLEY COVER PLATE |
518326566 |
US $44.83 |
||
|
74
|
74
417300401 RETAINER |
417300401 |
US $18.33 |
||
|
74a
|
74a
417127203 SOCKET SET SCREW M6X6 DIN 916 |
417127203 |
US $10.17 |
||
