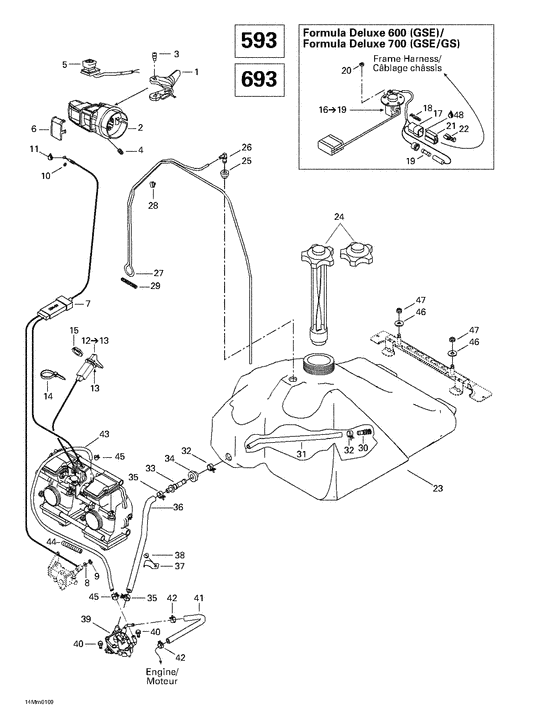

02- fuel system (593, 693) Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
513032988
Reservoir essen*tank-fuel
Formula Deluxe 600. Formula Deluxe 700.; |
513032988 |
— | ||
|
|
513032988
Reservoir essen*tank-fuel
Formula Deluxe 700.; |
513032988 |
— | ||
|
|
572039600 Bouchon *capFormula Deluxe 600. Formula Deluxe 700.; |
572039600 |
US $28.59 |
||
|
1
|
1
512059107
Manette ass. *handle-assy
Formula Deluxe 600. Formula Deluxe 700.; |
512059107 |
— | ||
| replacement | |||||
|
1
|
1
512059481 Manette ass. *handle-assyFormula Deluxe 600. Formula Deluxe 700.; |
512059481 |
US $85.65 |
||
|
2
|
2
512059109
Logement acc. *housing-throttle
Formula Deluxe 600. Formula Deluxe 700.; |
512059109 |
— | ||
| replacement | |||||
|
2
|
2
512059763 Logem. accel. *housing throttleFormula Deluxe 600. Formula Deluxe 700.; |
512059763 |
US $28.51 |
||
|
3
|
3
732601143 Screw-shoulderFormula Deluxe 600. Formula Deluxe 700.; |
732601143 |
US $38.90 |
||
|
4
|
4
414440800 Screw-set din 916-a2Formula Deluxe 600. Formula Deluxe 700.; |
414440800 |
US $19.45 |
||
|
5
|
5
515175410
Inter.urgence *switch-kill
Formula Deluxe 600. Formula Deluxe 700.; |
515175410 |
— | ||
| replacement | |||||
|
5
|
5
548872536
Inter.urgence *switch-kill
Formula Deluxe 600. Formula Deluxe 700.; |
548872536 |
— | ||
|
6
|
6
572100901 Couv.interrupt.*cover-switchFormula Deluxe 600. Formula Deluxe 700.; |
572100901 |
US $14.35 |
||
|
7
|
7
512059388 Cable accelerat*cable-throttleFormula Deluxe 600. Formula Deluxe 700.; |
512059388 |
US $101.97 |
||
|
8
|
8
414753300
Rondelle *washer
Formula Deluxe 600. Formula Deluxe 700.; |
414753300 |
— | ||
|
9
|
9
414753500 Circlip-type bs nFormula Deluxe 600. Formula Deluxe 700.; |
414753500 |
US $9.20 |
||
|
10
|
10
414274500 Circlip-black chromateFormula Deluxe 600. Formula Deluxe 700.; |
414274500 |
US $11.70 |
||
|
11
|
11
293550004 Graisse dielect*grease-dielect dc4Formula Deluxe 600. Formula Deluxe 700.; |
293550004 |
US $59.94 |
||
|
12
|
12
512059110 Cable etrang. *cable-chokeIncludes 12 - 13. Formula Deluxe 600. Formula Deluxe 700.; |
512059110 |
US $82.57 |
||
|
13
|
13
394103300
Washer-lock int.teeth
Formula Deluxe 600. Formula Deluxe 700.; |
394103300 |
— | ||
|
14
|
14
515175220 Tie rap *tie-rapFormula Deluxe 600. Formula Deluxe 700.; |
515175220 |
US $9.90 |
||
|
15
|
15
512059094 Ecrou plastique*nut-plasticFormula Deluxe 600. Formula Deluxe 700.; |
512059094 |
US $5.87 |
||
|
16
|
16
515175170
Capt.niv.ess. *sensor-fuel
Includes 16 - 19. (GSE/GS) Formula Deluxe 600. Formula Deluxe 700.; |
515175170 |
— | ||
|
17
|
17
409204500
Logement male *housing-male
(GSE/GS) Formula Deluxe 600. Formula Deluxe 700.; |
409204500 |
— | ||
|
18
|
18
409210000 Cosse male *terminal-maleFormula Deluxe 600. Formula Deluxe 700.; |
409210000 |
US $58.30 |
||
|
19
|
19
410112400
Fusible 0.25amp*fuse-0.25amp.
Formula Deluxe 600. Formula Deluxe 700.; |
410112400 |
— | ||
|
20
|
20
232551414 Nut-stop elastic din.985Formula Deluxe 600. Formula Deluxe 700.; |
232551414 |
US $11.20 |
||
|
21
|
21
409204600 Logement femel.*housing-femaleFormula Deluxe 600. Formula Deluxe 700.; |
409204600 |
US $40.50 |
||
|
22
|
22
561503100 Cosse femelle *terminal-femal.Formula Deluxe 600. Formula Deluxe 700.; |
561503100 |
US $52 |
||
|
23
|
23
513032987
Reservoir essen*tank-fuel
Formula Deluxe 600.; |
513032987 |
— | ||
|
24
|
24
513032901
Bouchon res.ess*cap-fuel tank
Formula Deluxe 600.; |
513032901 |
— | ||
| replacement | |||||
|
24
|
24
513033020 Bouchon res.ess*cap-fuel tankFormula Deluxe 600.; |
513033020 |
US $28.51 |
||
|
25
|
25
513032908 Passe-fils *grommetFormula Deluxe 600. Formula Deluxe 700.; |
513032908 |
US $98.80 |
||
|
26
|
26
414814100 Raccord male *connector-maleFormula Deluxe 600. Formula Deluxe 700.; |
414814100 |
US $14.35 |
||
|
27
|
27
415080100 Boyau amorce *line-primerFormula Deluxe 600. Formula Deluxe 700.; |
415080100 |
US $75.90 |
||
|
28
|
28
513032923 Bride de tube *clamp-tubeFormula Deluxe 600. Formula Deluxe 700.; |
513032923 |
US $8.55 |
||
|
29
|
29
414818200 Ressort *springFormula Deluxe 600. Formula Deluxe 700.; |
414818200 |
US $3.01 |
||
|
30
|
30
414872100 Crepine *filter-fuelFormula Deluxe 600. Formula Deluxe 700.; |
414872100 |
US $14.03 |
||
|
31
|
31
415005700 Boyau polyure *hose-polyurethaneFormula Deluxe 600. Formula Deluxe 700.; |
415005700 |
US $9.78 |
||
|
32
|
32
513033010 Bride serrage *clampFormula Deluxe 600. Formula Deluxe 700.; |
513033010 |
US $42.75 |
||
|
33
|
33
414872700 Raccord male *connector-maleFormula Deluxe 600. Formula Deluxe 700.; |
414872700 |
US $9.80 |
||
|
34
|
34
570273900 Passe-fils *grommetFormula Deluxe 600. Formula Deluxe 700.; |
570273900 |
US $11.76 |
||
|
35
|
35
513032979 Bride a ressort*clamp-springFormula Deluxe 600. Formula Deluxe 700.; |
513032979 |
US $194.50 |
||
|
36
|
36
513032903 Boyau forme *hose-formedFormula Deluxe 600. Formula Deluxe 700.; |
513032903 |
US $29.53 |
||
|
37
|
37
415018200 Pince *clipFormula Deluxe 600. Formula Deluxe 700.; |
415018200 |
US $3.83 |
||
|
38
|
38
390406500 Rivet-pop 3/16 *rivet-pop 3/16Formula Deluxe 600. Formula Deluxe 700.; |
390406500 |
US $58.50 |
||
|
39
|
39
403901804
Pompe a essence*pump-fuel
Formula Deluxe 600. Formula Deluxe 700.; |
403901804 |
— | ||
| replacement | |||||
|
39
|
39
403901808 Pompe a essence*pump-fuelFormula Deluxe 600. Formula Deluxe 700.; |
403901808 |
US $126.45 |
||
|
40
|
40
210361280 Screw-forming hex.hd.fl.din.7500Formula Deluxe 600. Formula Deluxe 700.; |
210361280 |
US $9.70 |
||
|
41
|
41
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
Formula Deluxe 600. Formula Deluxe 700.; |
415079800 |
— | ||
|
42
|
42
414415200 Bride a ressort*clamp-springFormula Deluxe 600. Formula Deluxe 700.; |
414415200 |
US $11.70 |
||
|
43
|
43
513032986
Boyau forme *tube-formed
Formula Deluxe 600. Formula Deluxe 700.; |
513032986 |
— | ||
|
44
|
44
415079900 Gaine *protector tubeFormula Deluxe 600. Formula Deluxe 700.; |
415079900 |
US $2.67 |
||
|
45
|
45
414420700 Bride a ressort*clamp-springFormula Deluxe 600. Formula Deluxe 700.; |
414420700 |
US $9.50 |
||
|
46
|
46
234082410 Washer-flat din.9021bFormula Deluxe 600. Formula Deluxe 700.; |
234082410 |
US $18.40 |
||
|
47
|
47
232581414 Nut-stop elastic din.985Formula Deluxe 600. Formula Deluxe 700.; |
232581414 |
US $7.30 |
||
|
48
|
48
293550004 Graisse dielect*grease-dielect dc4Formula Deluxe 600. Formula Deluxe 700.; |
293550004 |
US $59.94 |
||
