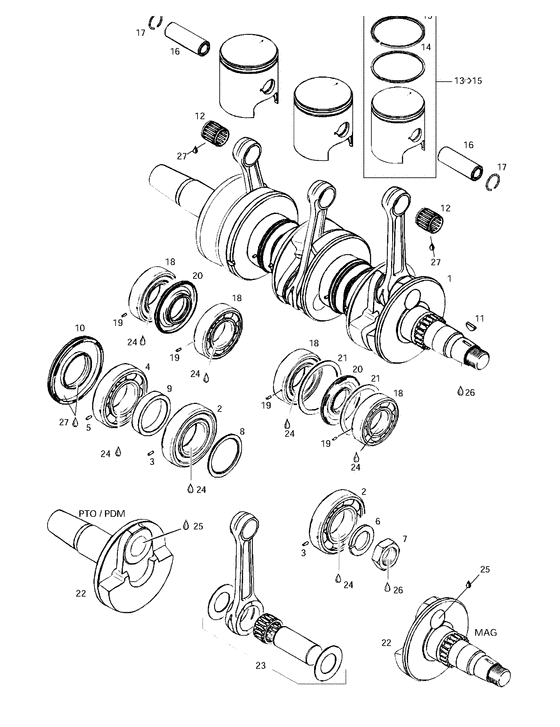

01- crankshaft and pistons Diagram Bombardier Formula
- Year
- 1997
- Sales region
- General
- Model
- Formula III
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
420886909
Ens.tige rep. *kit-rod repair
|
420886909 |
— | ||
| replacement | |||||
|
|
420887604
Ens.tige re.mag*kit-rod re.mag
|
420887604 |
— | ||
|
|
420818622
Vilebrequin, mag
|
420818622 |
— | ||
|
1
|
1
420887970
Vilebrequin *crankshaft-ass
Includes 1 - 12.; |
420887970 |
— | ||
| replacement | |||||
|
1
|
1
421000152
Vilebreq.refait*crank-rebuild 599 1996
Includes 1 - 12.; |
421000152 |
— | ||
|
2
|
2
420432278
Roulement bille*ball bearing
Includes 2 - 3.; |
420432278 |
— | ||
| replacement | |||||
|
2
|
2
420432271
Roulement bille*ball bearing
Includes 2 - 3.; |
420432271 |
— | ||
|
3
|
3
420929982
Aiguille *dowel-pin
|
420929982 |
— | ||
|
4
|
4
420432276
Roulement bille*ball bearing
Includes 4 - 5.; |
420432276 |
— | ||
| replacement | |||||
|
4
|
4
420432271
Roulement bille*ball bearing
Includes 4 - 5.; |
420432271 |
— | ||
|
5
|
5
420929982
Aiguille *dowel-pin
|
420929982 |
— | ||
|
6
|
6
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
7
|
7
420842230
Nut-hex.m22 x 1,5
|
420842230 |
— | ||
| replacement | |||||
|
7
|
7
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
8
|
8
420926130
Cale epaisseur *ring-distance
|
420926130 |
— | ||
|
9
|
9
420847855
Douille *sleeve-dista.
|
420847855 |
— | ||
| replacement | |||||
|
9
|
9
415129010 Entretoise *spacer |
415129010 |
US $19.33 |
||
|
10
|
10
420931280 Anneau etanche *seal-oil |
420931280 |
US $58.09 |
||
|
11
|
11
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
12
|
12
420832435
Roul.aiguille *needle bearing
|
420832435 |
— | ||
| replacement | |||||
|
12
|
12
420832438
Roul.aiguille *needle bearing
|
420832438 |
— | ||
|
13
|
13
420887435
Piston *piston
Includes 13 - 15.; |
420887435 |
— | ||
| replacement | |||||
|
13
|
13
420887437 Piston *pistonIncludes 13 - 15.; |
420887437 |
US $177.45 |
||
|
14
|
14
420815060
Segment r 64.5 *ring-r 64.5
|
420815060 |
— | ||
|
15
|
15
420815140 Segment semi-tr*ring-semi trap |
420815140 |
US $50.97 |
||
|
16
|
16
420916136 Axe de piston *pin-piston |
420916136 |
US $21.39 |
||
|
17
|
17
420945735 Circlip piston *circlip-piston |
420945735 |
from US $3.20 |
||
|
18
|
18
420932589
Roulement bille*ball bearing
Includes 18 - 19.; |
420932589 |
— | ||
| replacement | |||||
|
18
|
18
420832538
Roulement bille*ball bearing
Includes 18 - 19.; |
420832538 |
— | ||
|
19
|
19
420929972 Goupille ressor*pin-roll |
420929972 |
US $34 |
||
|
20
|
20
420831990 Anneau etanche *seal-oil |
420831990 |
US $22.39 |
||
|
21
|
21
420827050 Disque retenue *disk-retaining |
420827050 |
US $7 |
||
|
22
|
22
420818612
Demi-vileb.pto *half-crank pto
|
420818612 |
— | ||
|
23
|
23
420886908
Ens.tige rep. *kit-rod repair
|
420886908 |
— | ||
| replacement | |||||
|
23
|
23
420887603 Ens.tige re.pto*kit-rod re.pto |
420887603 |
US $301.89 |
||
|
24
|
24
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
|
26
|
26
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
27
|
27
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
