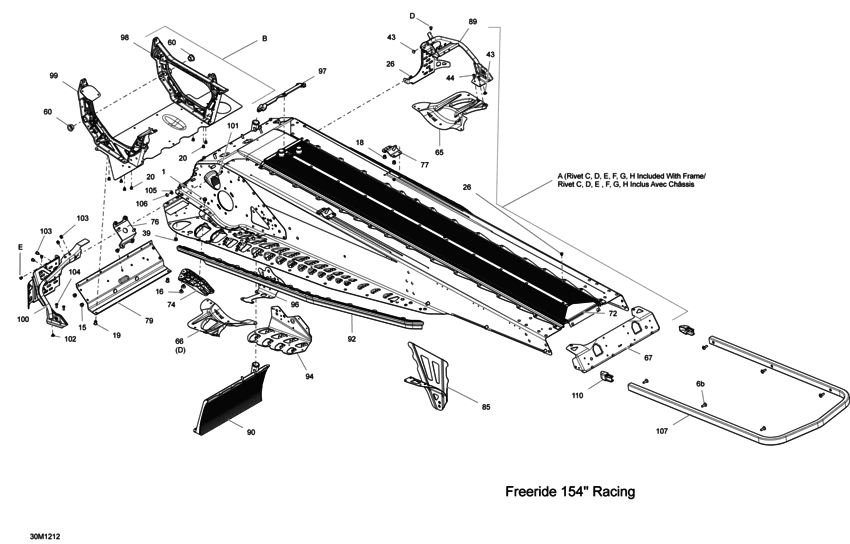

09- Frame Diagram Bombardier Freeride
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
2
|
2
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
6b
|
6b
250000402 TORX-TRUSS M/S GM6047M N.PATCH |
250000402 |
US $10.05 |
||
|
15
|
15
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
16
|
16
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
16
|
16
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
18
|
18
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
19
|
19
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
20
|
20
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
26
|
26
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
39
|
39
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
43
|
43
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
44
|
44
390407200 Rivet-pop 3/16 *rivet-pop 3/16 |
390407200 |
US $47 |
||
|
60
|
60
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
65
|
65
518324874 Renfort dr *reinforcement |
518324874 |
US $22.39 |
||
|
66
|
66
518324875 Renfort ga *reinforcement |
518324875 |
US $22.39 |
||
|
67
|
67
518325421
Capuchon *rear cap
|
518325421 |
— | ||
|
72
|
72
518326692 REAR RADIATOR ASS Y, 154" |
518326692 |
US $675.21 |
||
|
74
|
74
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
74
|
74
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
76
|
76
518325943 Support mag *mag support |
518325943 |
US $22.39 |
||
|
77
|
77
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
77
|
77
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
79
|
79
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
85
|
85
518326621 RH REAR RETAINER |
518326621 |
US $95.85 |
||
|
85
|
85
518326622 LH REAR RETAINER |
518326622 |
US $95.85 |
||
|
89
|
89
518326216 ETRIER DROIT *RH.STIRUP |
518326216 |
US $151.95 |
||
|
90
|
90
518326485 FRONT RADIATOR |
518326485 |
US $390.63 |
||
|
92
|
92
518326601 RH ROLLER |
518326601 |
US $147.85 |
||
|
92
|
92
518326602 LH ROLLER |
518326602 |
US $147.85 |
||
|
94
|
94
860200522 ALUMINUM REINFORCEMENT FRAME KIT |
860200522 |
US $73.41 |
||
|
96
|
96
518326616 RH FRONT RETAINER |
518326616 |
US $36.69 |
||
|
96
|
96
518326617 LH FRONT RETAINER |
518326617 |
US $36.69 |
||
|
97
|
97
518326656 JOINT *SEAL |
518326656 |
US $8.38 |
||
|
98
|
98
518326795 RH MEMBER |
518326795 |
US $306.88 |
||
|
99
|
99
518326796 LH MEMBER |
518326796 |
US $201.93 |
||
|
100
|
100
518326239 ETRIER GA *LH.STIRUP |
518326239 |
US $151.95 |
||
|
101
|
101
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
102
|
102
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
103
|
103
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
104
|
104
293150194 INTERLOCK RIVET 3/16 |
293150194 |
US $3.96 |
||
|
105
|
105
250200039 Rondelle plate *flat washer |
250200039 |
US $9.50 |
||
|
106
|
106
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
107
|
107
518326049 Pare-chocs *rear bumper |
518326049 |
US $103.99 |
||
|
110
|
110
520000840 Capuchon *cap |
520000840 |
US $8.38 |
||
|
A
|
A
415129638 FRAME FREERIDE 154 RACING |
415129638 |
US $3,783.20 |
||
|
B
|
B
518-326-843
Module e *module e
|
518-326-843 |
— | ||
|
C
|
C
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
D
|
D
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
E
|
E
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
F
|
F
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
G
|
G
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
H
|
H
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
