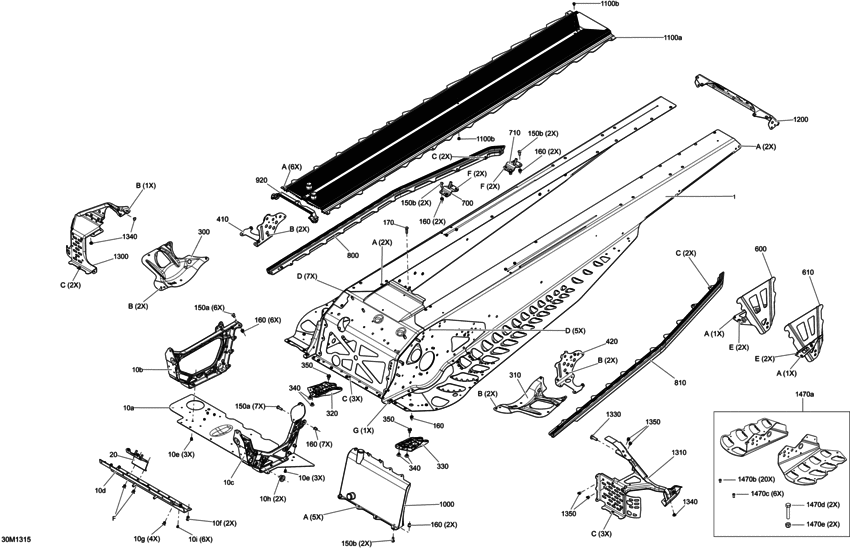

09- Frame Diagram Bombardier Freeride
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415129744 FRAME ASS Y |
415129744 |
US $3,783.20 |
||
|
10a
|
10a
518327567 FRONT E MODULE |
518327567 |
US $507.57 |
||
|
10b
|
10b
518326795 RH MEMBER |
518326795 |
US $306.88 |
||
|
10c
|
10c
518326796 LH MEMBER |
518326796 |
US $201.93 |
||
|
10d
|
10d
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
10e
|
10e
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
10f
|
10f
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
10g
|
10g
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
10h
|
10h
505073317 LEG CUSHION |
505073317 |
US $6.26 |
||
|
10i
|
10i
XXX
Not Sold
|
XXX |
— | ||
|
20
|
20
518325943 Support mag *mag support |
518325943 |
US $22.39 |
||
|
150a
|
150a
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
150b
|
150b
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
160
|
160
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
170
|
170
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
300
|
300
518324874 Renfort dr *reinforcement |
518324874 |
US $22.39 |
||
|
310
|
310
518324875 Renfort ga *reinforcement |
518324875 |
US $22.39 |
||
|
320
|
320
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
330
|
330
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
340
|
340
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
340
|
340
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
350
|
350
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
410
|
410
518326616 RH FRONT RETAINER |
518326616 |
US $36.69 |
||
|
420
|
420
518326617 LH FRONT RETAINER |
518326617 |
US $36.69 |
||
|
600
|
600
518326621 RH REAR RETAINER |
518326621 |
US $95.85 |
||
|
610
|
610
518326622 LH REAR RETAINER |
518326622 |
US $95.85 |
||
|
700
|
700
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
710
|
710
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
800
|
800
518326601 RH ROLLER |
518326601 |
US $147.85 |
||
|
810
|
810
518326602 LH ROLLER |
518326602 |
US $147.85 |
||
|
920
|
920
518326656 JOINT *SEAL |
518326656 |
US $8.38 |
||
|
1000
|
1000
518326485 FRONT RADIATOR |
518326485 |
US $390.63 |
||
|
1100a
|
1100a
518326692 REAR RADIATOR ASS Y, 154" |
518326692 |
US $675.21 |
||
|
1100b
|
1100b
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
1200
|
1200
518327105 REAR CAP |
518327105 |
US $19.92 |
||
|
1300
|
1300
518326216 ETRIER DROIT *RH.STIRUP |
518326216 |
US $151.95 |
||
|
1310
|
1310
518326239 ETRIER GA *LH.STIRUP |
518326239 |
US $151.95 |
||
|
1330
|
1330
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
1340
|
1340
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
1350
|
1350
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
1470a
|
1470a
860200522 ALUMINUM REINFORCEMENT FRAME KIT |
860200522 |
US $73.41 |
||
|
1470b
|
1470b
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
1470b
|
1470b
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
1470c
|
1470c
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
1470d
|
1470d
207205586 Screw-hex.cap iso.4014 s.grip |
207205586 |
US $4.57 |
||
|
1470e
|
1470e
233601416 Nut-locking elastic din.982 |
233601416 |
US $24 |
||
|
A
|
A
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
B
|
B
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
C
|
C
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
D
|
D
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
E
|
E
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
F
|
F
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
G
|
G
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
