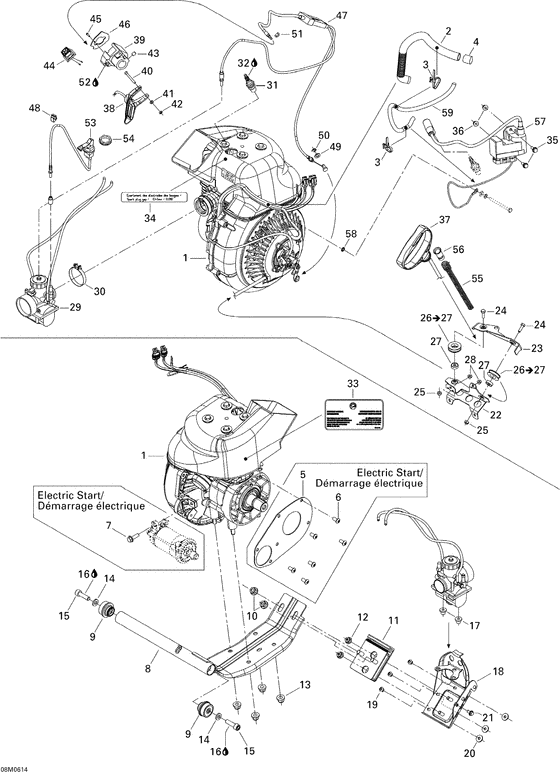

01- engine and engine support Diagram Bombardier Freestyle
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400206004
Moteur 277 *engine-277
|
400206004 |
— | ||
| replacement | |||||
|
1
|
1
400206007
Moteur 277 *engine-277
|
400206007 |
— | ||
|
2
|
2
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
5
|
5
512059922
Sup.demar.pein *star.sup-paint
Electric Start; |
512059922 |
— | ||
|
6
|
6
250000243 Screw-torx button head m8 x 16 s.gripElectric Start; |
250000243 |
US $5.83 |
||
|
7
|
7
207582544 Screw-hex.flange din.6921 s.gripElectric Start; |
207582544 |
US $21.90 |
||
|
8
|
8
512059901 Supp. moteur p.*sup.-engine p. |
512059901 |
US $201.93 |
||
|
9
|
9
512059691 Tampon ancrage *rubber mount |
512059691 |
US $53.86 |
||
|
10
|
10
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
11
|
11
512059958
Tampon ancrage *mount-rubber
|
512059958 |
— | ||
|
12
|
12
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
13
|
13
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
14
|
14
503183500 Rondelle *washer |
503183500 |
US $1.77 |
||
|
15
|
15
205003544 Screw-socket hd.din.912 |
205003544 |
US $21.80 |
||
|
16
|
16
413703400 Loctite 222ms *loctite-222ms |
413703400 |
US $19.33 |
||
|
17
|
17
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
18
|
18
512059918 Plaque app.pein*plate-paint |
512059918 |
US $40.77 |
||
|
21
|
21
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
22
|
22
512060010 Sup.poulie *pulley.sup |
512060010 |
US $17.29 |
||
|
23
|
23
512060032 Renf.poulie *guard |
512060032 |
US $11.17 |
||
|
24
|
24
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
25
|
25
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
26
|
26
512060150
Poulie ass *pulley ass y
Includes 26 to 27; |
512060150 |
— | ||
|
27
|
27
512060151 Roulement bille*ball bearing |
512060151 |
US $13.21 |
||
|
28
|
28
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
29
|
29
403138768
Carb.vm-34 *carb-vm-34
|
403138768 |
— | ||
|
30
|
30
512059834 Bride *clamp |
512059834 |
US $11.90 |
||
|
31
|
31
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
31
|
31
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
32
|
32
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
34
|
34
516000986
Decalque bougie*decal-spark plug
|
516000986 |
— | ||
|
35
|
35
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
37
|
37
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
38
|
38
512059997
Manette ass. *handle-assy
|
512059997 |
— | ||
| replacement | |||||
|
38
|
38
512060214 Manette ass. *handle-assy |
512060214 |
US $55.03 |
||
|
39
|
39
512059334
Logement acc. *housing-throttle
|
512059334 |
— | ||
| replacement | |||||
|
39
|
39
512060193 Logement acc. *housing-throttle |
512060193 |
US $23.41 |
||
|
40
|
40
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
41
|
41
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
42
|
42
414439000 Circlip *circlip |
414439000 |
US $27.35 |
||
|
43
|
43
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
44
|
44
515176091
Interrupteur *kill switch
|
515176091 |
— | ||
| replacement | |||||
|
44
|
44
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
45
|
45
250000022 Screw-thread cut.ph.pan type25 |
250000022 |
US $19.60 |
||
|
46
|
46
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
47
|
47
512059907 Cable accelerat*throttle cable |
512059907 |
US $98.89 |
||
|
48
|
48
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
49
|
49
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
50
|
50
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
51
|
51
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
52
|
52
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
53
|
53
512060005 Cable etrang. *cable-choke |
512060005 |
US $41.77 |
||
|
54
|
54
512060016 Ecrou plastique*nut-plastic |
512060016 |
US $7.09 |
||
|
55
|
55
512059535 Guide corde *guide-rope |
512059535 |
US $13.45 |
||
|
56
|
56
512059536 Tube *tube |
512059536 |
US $11.17 |
||
|
57
|
57
512060006 Module calibre *module-calib. |
512060006 |
US $638.49 |
||
|
58
|
58
394001900 Washer-lock ext.tooth |
394001900 |
US $10 |
||
|
59
|
59
515175442
Gaine *housing
|
515175442 |
— | ||
