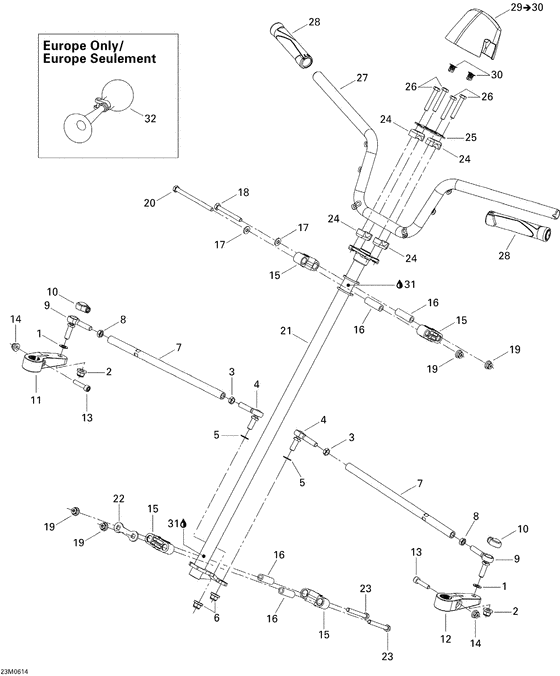

07- steering system Diagram Bombardier Freestyle
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
2
|
2
250100073
Nut-flange elastic din.6926
|
250100073 |
— | ||
|
3
|
3
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
4
|
4
506151845 Joint rotule ga*ball joint lh |
506151845 |
US $46.10 |
||
|
5
|
5
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
6
|
6
250100073
Nut-flange elastic din.6926
|
250100073 |
— | ||
|
7
|
7
506151556 Barre accoupl. *rod-tie |
506151556 |
US $55.03 |
||
|
8
|
8
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
9
|
9
506152017
Joint rotule *ball joint
|
506152017 |
— | ||
| replacement | |||||
|
9
|
9
506152212 Joint rotule *ball joint |
506152212 |
US $49.11 |
||
|
10
|
10
506151650 Capuchon prot. *cap-protection |
506151650 |
US $7.33 |
||
|
11
|
11
506145800 Bras direct.dr.*arm-steer.rh |
506145800 |
US $146.85 |
||
|
12
|
12
506145900 Bras direct.ga.*arm-steer.lh |
506145900 |
US $146.85 |
||
|
13
|
13
205083544 Screw-socket hd.din.912 |
205083544 |
US $8.65 |
||
|
14
|
14
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
15
|
15
506150400 Demi logement *half-housing |
506150400 |
US $9.74 |
||
|
16
|
16
506150500 Douille logem. *bushing-housing |
506150500 |
US $9.78 |
||
|
17
|
17
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
18
|
18
207087044 Screw-hex.cap din.931 |
207087044 |
US $14.35 |
||
|
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
20
|
20
230081044 Screw-hex.cap din.931 |
230081044 |
US $16 |
||
|
21
|
21
506152024 Arbre dir.peint*tube-main paint |
506152024 |
US $195.81 |
||
|
22
|
22
506150600 Plaque d arret *plate-stopper |
506150600 |
US $5.47 |
||
|
23
|
23
207087044 Screw-hex.cap din.931 |
207087044 |
US $14.35 |
||
|
24
|
24
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
25
|
25
506151547 Renfort *reiforcement |
506151547 |
US $5.41 |
||
|
26
|
26
250000082 Screw-hex.cap din.931 nylon-patch |
250000082 |
US $19.60 |
||
|
27
|
27
506151986 Guidon peint *bar-handle paint |
506151986 |
US $97.89 |
||
|
28
|
28
506152058
Gaine poignee *grip-handle
|
506152058 |
— | ||
| replacement | |||||
|
28
|
28
506152238 Gaine poignee *grip-handle |
506152238 |
US $95.76 |
||
|
29
|
29
506151660 Capuchon *capIncludes 29 to 30; |
506151660 |
US $30.23 |
||
|
30
|
30
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
31
|
31
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
32
|
32
415040700
Avertisseur *horn
|
415040700 |
— | ||
| replacement | |||||
|
32
|
32
549011291 Avertisseur *horn |
549011291 |
US $31.59 |
||
