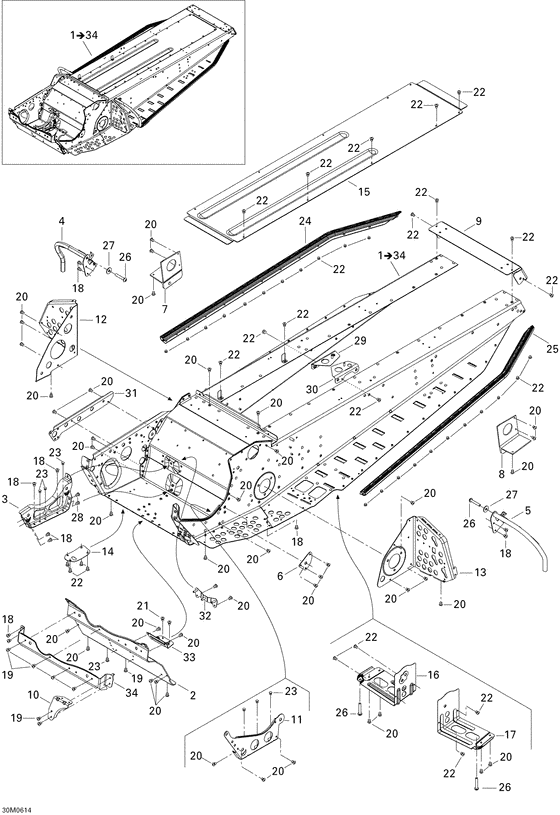

09- frame Diagram Bombardier Freestyle
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415129127
Chassis *frame service
Includes 1 to 34; |
415129127 |
— | ||
|
2
|
2
518323994
Tablier avant *front pan
|
518323994 |
— | ||
|
3
|
3
518323346 Supp.moteur *engine support |
518323346 |
US $16.76 |
||
|
4
|
4
518324162 Sup.acc.pi.dr.s*supp-toe hold rh weld |
518324162 |
US $47.91 |
||
|
5
|
5
518324163 Sup.acc.pi.ga.s*supp-toe hold lh weld |
518324163 |
US $47.91 |
||
|
6
|
6
518323507 Renfort ext. *reinf. outer |
518323507 |
US $11.49 |
||
|
7
|
7
518324734
Att.susp. *slide brkt
|
518324734 |
— | ||
|
8
|
8
518324733
Att.susp. *slide brkt
|
518324733 |
— | ||
|
9
|
9
518324279 Capuchon *rear cap |
518324279 |
US $19.92 |
||
|
10
|
10
518324439 Support gard.co*sup-guard belt |
518324439 |
US $11.49 |
||
|
11
|
11
518323995 Renfort int. *inner reinforc |
518323995 |
US $19.92 |
||
|
12
|
12
518323805
Renfort droit *rh.footrest
|
518323805 |
— | ||
|
13
|
13
518324527
Renfort gauche *reinforcement
|
518324527 |
— | ||
|
14
|
14
518324169 Plaque *plate |
518324169 |
US $7.31 |
||
|
15
|
15
518323996
Plaque *plate
|
518323996 |
— | ||
|
16
|
16
518324615 Marche-pied dr.*footrest-rh |
518324615 |
US $20.37 |
||
|
17
|
17
518324616
Marche-pied ga.*footrest-lh
|
518324616 |
— | ||
|
18
|
18
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
19
|
19
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
20
|
20
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
20
|
20
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
21
|
21
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
22
|
22
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
23
|
23
390910300 Rivet henrob *rivet-henrob |
390910300 |
US $17.75 |
||
|
24
|
24
518324957 Rouleau droit *rh.roller |
518324957 |
US $81.57 |
||
|
25
|
25
518324958 Rouleau gauche *lh.roller |
518324958 |
US $81.57 |
||
|
26
|
26
205982086 Screw-socket bn.hd.s.grip iso.7380 |
205982086 |
US $10.65 |
||
|
27
|
27
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
28
|
28
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
29
|
29
518324385
Renfort tunnel *frame form. reinf.
|
518324385 |
— | ||
|
30
|
30
518324386 Renfort tunnel *frame form. reinf. |
518324386 |
US $15.73 |
||
|
31
|
31
518323328 Raidisseur *stiffener |
518323328 |
US $11.49 |
||
|
32
|
32
518324599
Attache *holder
|
518324599 |
— | ||
|
33
|
33
518324207 Attache soude *weld plate hol |
518324207 |
US $16.76 |
||
|
34
|
34
518324220 Renf. frontale *front reinf. |
518324220 |
US $22.02 |
||
