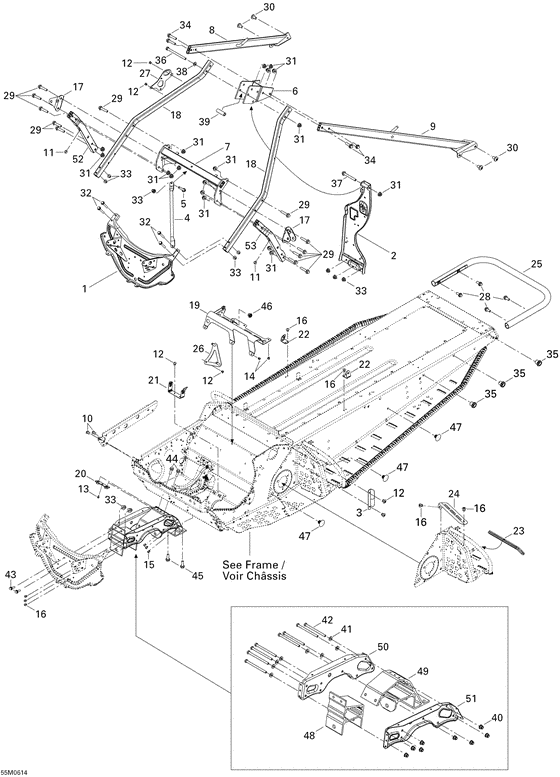

09- frame and components Diagram Bombardier Freestyle
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518324216
Plaque frontale*front plate
|
518324216 |
— | ||
|
2
|
2
518324209
Supp.direction *upp.col.suppor
|
518324209 |
— | ||
|
3
|
3
518317504 Protect.cable *protect.-cable |
518317504 |
US $6.26 |
||
|
4
|
4
518324988
Croisillon *brace
|
518324988 |
— | ||
|
5
|
5
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
6
|
6
518324196 Bloc attache *block-bracket |
518324196 |
US $70.35 |
||
|
7
|
7
518324193
Traverse sup.so*cross memb.upp.weld
|
518324193 |
— | ||
| replacement | |||||
|
7
|
7
518325150
Traverse sup.so*cross memb.upp.weld
|
518325150 |
— | ||
|
8
|
8
518324480 Membrure dr.sou*member-rh weld. |
518324480 |
US $103.99 |
||
|
9
|
9
518324481
Membrure ga.sou*member-lh weld.
|
518324481 |
— | ||
|
10
|
10
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
11
|
11
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
12
|
12
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
12
|
12
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
13
|
13
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
14
|
14
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
15
|
15
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
16
|
16
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
17
|
17
518324202 Attache amort. *brkt-shock |
518324202 |
US $11.49 |
||
|
18
|
18
518324212 Tube droit *tube rh |
518324212 |
US $67.29 |
||
|
19
|
19
518323532 Supp.silenc.adm*sup-intake air |
518323532 |
US $57.09 |
||
|
20
|
20
518324204 Attache soude *weld plate hol |
518324204 |
US $36.69 |
||
|
21
|
21
518322726 Attache gard.co*brkt-guard belt |
518322726 |
US $15.73 |
||
|
22
|
22
518324688 Attache *.bracket |
518324688 |
US $13.60 |
||
|
23
|
23
271001530 Moul.protect. *trim-protect. |
271001530 |
US $14.67 |
||
|
24
|
24
518323105 Plaque *plate |
518323105 |
US $10.47 |
||
|
25
|
25
518323992 Pare-choc *rear bumper |
518323992 |
US $85.65 |
||
|
26
|
26
518324312 Attache pompe *bracket pump |
518324312 |
US $11.49 |
||
|
27
|
27
518324315 Plaque *plate |
518324315 |
US $11.49 |
||
|
28
|
28
236282084 Screw-pan hd.torx black gm6174m |
236282084 |
US $19.60 |
||
|
29
|
29
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
30
|
30
250000154 Screw-pan hd.torx m8 x 13 |
250000154 |
US $19.60 |
||
|
31
|
31
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
32
|
32
207664544 Screw-hex.flange din.6921 |
207664544 |
US $45.50 |
||
|
33
|
33
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
34
|
34
207683544 Screw-hex.flange din.6921 |
207683544 |
US $21.80 |
||
|
35
|
35
415107300
Ajout *insert
|
415107300 |
— | ||
|
36
|
36
230081044 Screw-hex.cap din.931 |
230081044 |
US $16 |
||
|
37
|
37
207687044 Screw-hex.flange din.6921 |
207687044 |
US $9.45 |
||
|
38
|
38
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
39
|
39
506150500 Douille logem. *bushing-housing |
506150500 |
US $9.78 |
||
|
40
|
40
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
41
|
41
250200039 Rondelle plate *flat washer |
250200039 |
US $9.50 |
||
|
42
|
42
207069044 Screw-hex.cap din.931 |
207069044 |
US $31.45 |
||
|
43
|
43
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
44
|
44
207562044
Screw-hex.flange din.6921 s.grip
|
207562044 |
— | ||
|
45
|
45
250000257 Boulon pointu *cone screw m8 |
250000257 |
US $2.45 |
||
|
46
|
46
293450232 Ajout *insert |
293450232 |
US $4.05 |
||
|
47
|
47
518321954 Attache panneau*panel-fastener |
518321954 |
US $48.05 |
||
|
48
|
48
518324019
Attache avant *front attach
|
518324019 |
— | ||
|
49
|
49
518324020
Attache arr. *rear attach
|
518324020 |
— | ||
|
50
|
50
518324014
Renfort lat. *lat.reinforc.
|
518324014 |
— | ||
|
51
|
51
518324017
Renfort lat.ga.*lh.lat.reinfor
|
518324017 |
— | ||
|
52
|
52
518324214
Tube droit *tube rh
|
518324214 |
— | ||
|
53
|
53
518324215
Tube gauche *tube-lh
|
518324215 |
— | ||
