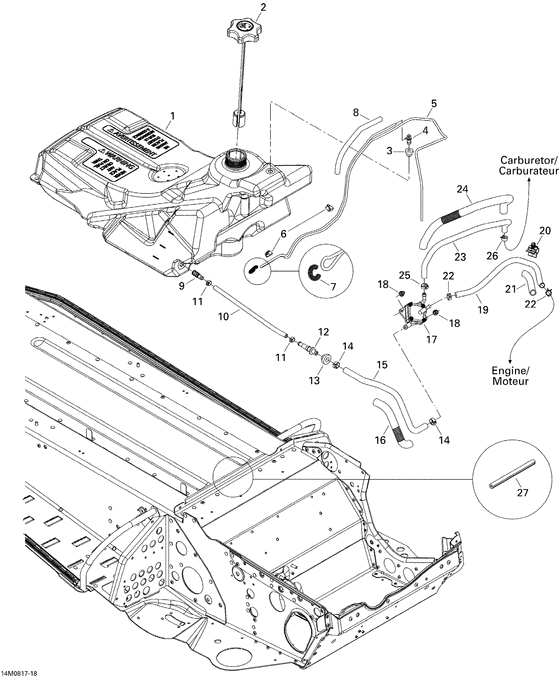

02- fuel system Diagram Bombardier Freestyle
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513033179 Reservoir essen*fuel tank |
513033179 |
US $258.01 |
||
|
2
|
2
513033361 Bouchon res.ess*cap-fuel tank |
513033361 |
US $55.03 |
||
|
3
|
3
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
4
|
4
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
5
|
5
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
6
|
6
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
7
|
7
414818200 Ressort *spring |
414818200 |
US $3.01 |
||
|
8
|
8
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
9
|
9
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
10
|
10
415005700 Boyau polyure *hose-polyurethane |
415005700 |
US $9.78 |
||
|
11
|
11
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
12
|
12
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
13
|
13
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
14
|
14
293650053 Bride serrage *clamp-oetiker |
293650053 |
US $20.40 |
||
|
15
|
15
513033374 Boyau forme *hose-formed |
513033374 |
US $29.53 |
||
|
16
|
16
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
17
|
17
403901815
Pompe a essence*fuel pump
|
403901815 |
— | ||
|
18
|
18
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
19
|
19
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
20
|
20
275500528 Attache boyau*hose-retainer |
275500528 |
US $3.83 |
||
|
21
|
21
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
22
|
22
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
23
|
23
513033022
Boyau 5/16 i.d.*hose-5/16 i.d.
|
513033022 |
— | ||
|
24
|
24
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
25
|
25
293650047 Bride serrage *clamp-oetiker |
293650047 |
US $21.70 |
||
|
26
|
26
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
27
|
27
509000263 Garniture *trime |
509000263 |
US $7.09 |
