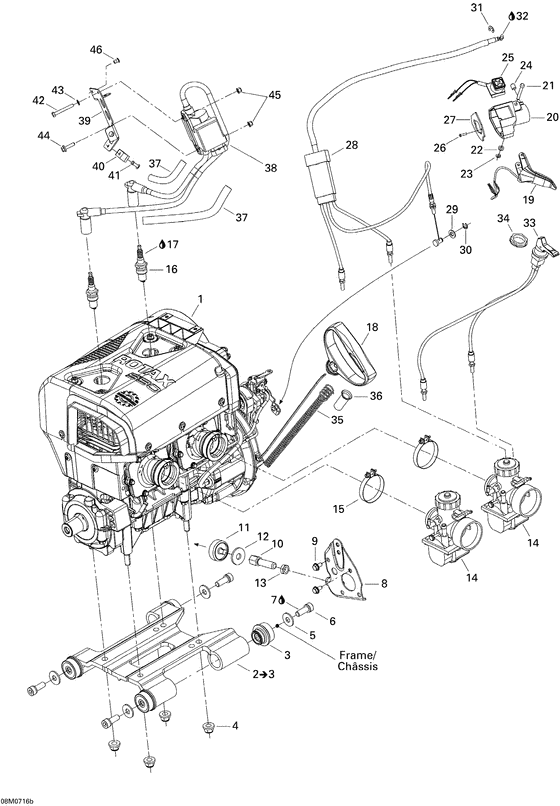

01- engine and engine support 550f Diagram Bombardier Freestyle
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400509764
Moteur 552 *engine-552
|
400509764 |
— | ||
|
2
|
2
512060034 Socle *engine supportIncludes 2 to 3; |
512060034 |
US $208.05 |
||
|
3
|
3
512059691 Tampon ancrage *rubber mount |
512059691 |
US $53.86 |
||
|
4
|
4
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
5
|
5
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
6
|
6
235202544 Screw-torx low head socket m10 x 25 |
235202544 |
US $1.64 |
||
|
7
|
7
413703400 Loctite 222ms *loctite-222ms |
413703400 |
US $19.33 |
||
|
8
|
8
512059910
Plaque app.pein*plate-paint
|
512059910 |
— | ||
|
9
|
9
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
10
|
10
512058800 Vis d arret *screw-stopper |
512058800 |
US $16.07 |
||
|
11
|
11
512059610
Butee *stopper
|
512059610 |
— | ||
|
12
|
12
512059057 Rondelle *washer |
512059057 |
US $19.60 |
||
|
13
|
13
732610019 Nut-jam hexagonal rh. |
732610019 |
US $9.80 |
||
|
14
|
14
403138786 Carburateur *carburator |
403138786 |
US $396.75 |
||
|
15
|
15
512059834 Bride *clamp |
512059834 |
US $11.90 |
||
|
16
|
16
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
16
|
16
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
17
|
17
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
18
|
18
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
19
|
19
512060307
Manette ass. *handle-assy
|
512060307 |
— | ||
| replacement | |||||
|
19
|
19
512061251 MANETTE ASS. *HANDLE-ASSY |
512061251 |
US $85.65 |
||
|
20
|
20
512060193 Logement acc. *housing-throttle |
512060193 |
US $23.41 |
||
|
21
|
21
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
22
|
22
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
23
|
23
293370050 Anneau retenue *circlip |
293370050 |
US $3 |
||
|
24
|
24
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
25
|
25
515176091
Interrupteur *kill switch
|
515176091 |
— | ||
| replacement | |||||
|
25
|
25
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
26
|
26
250000265 Screw-tapp.pan.hd.torx din.7981c |
250000265 |
US $2.20 |
||
|
27
|
27
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
28
|
28
512060195
Cable accelerat*cable-throttle
|
512060195 |
— | ||
|
29
|
29
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
30
|
30
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
31
|
31
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
32
|
32
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
33
|
33
512059914 Cable etrang. *cable-choke |
512059914 |
US $82.57 |
||
|
34
|
34
512060016 Ecrou plastique*nut-plastic |
512060016 |
US $7.09 |
||
|
35
|
35
512059535 Guide corde *guide-rope |
512059535 |
US $13.45 |
||
|
36
|
36
512059536 Tube *tube |
512059536 |
US $11.17 |
||
|
37
|
37
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
38
|
38
512060157 Module calibre *module-calib. |
512060157 |
US $550.77 |
||
|
39
|
39
512060160 Support module *module support |
512060160 |
US $10.17 |
||
|
40
|
40
420860945 Bride *clamp |
420860945 |
US $8.13 |
||
|
41
|
41
390407200 Rivet-pop 3/16 *rivet-pop 3/16 |
390407200 |
US $47 |
||
|
42
|
42
207054044 Screw-hex.cap din.931 |
207054044 |
US $9.80 |
||
|
43
|
43
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
44
|
44
207652044 Screw-hex.flange din.6921 |
207652044 |
US $2.45 |
||
|
45
|
45
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
46
|
46
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
46
|
46
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
