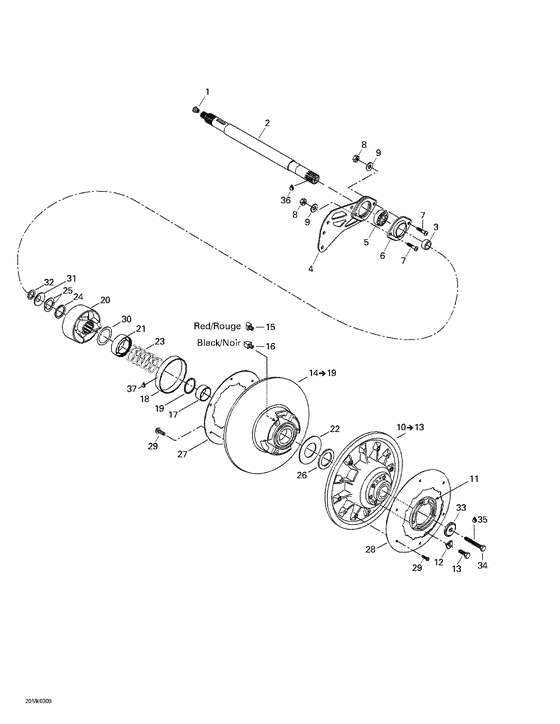

05- driven pulley Diagram Bombardier Mach
- Year
- 2003
- Sales region
- General
- Model
- Mach Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
207162244 Screw-hex.cap din.933 |
207162244 |
US $3.83 |
||
|
1
|
1
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
2
|
2
501026300 Arbre renvoi *shaft-counter |
501026300 |
US $568.11 |
||
|
3
|
3
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
4
|
4
080039300
Entretoise *spacer
|
080039300 |
— | ||
|
5
|
5
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
| replacement | |||||
|
5
|
5
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
6
|
6
501026900
Flasque *flange
|
501026900 |
— | ||
|
7
|
7
205483046 Screw-socket bn.hd.iso.7380 |
205483046 |
US $12.85 |
||
|
8
|
8
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
9
|
9
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
10
|
10
417126414
Flasque fixe as*flange-fix.ass.
Includes 10 - 13.; |
417126414 |
— | ||
|
11
|
11
415005800
Bague ajustem. *ring-adjust.
|
415005800 |
— | ||
|
12
|
12
415005900 Cale de reglage*shim-adjust. |
415005900 |
US $4.05 |
||
|
13
|
13
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
14
|
14
417126318
Flasque coul.as*flange-slid.as
Includes 14 - 19.; |
417126318 |
— | ||
|
15
|
15
417126373
Gliss.came arr.*shoe-cam slide rear
|
417126373 |
— | ||
|
16
|
16
417126374 Gliss. came av.*shoe-cam slide front |
417126374 |
US $4.08 |
||
|
18
|
18
414978100
Coussinet *bushing
|
414978100 |
— | ||
| replacement | |||||
|
18
|
18
417126902 Coussinet *coussinet |
417126902 |
US $45.56 |
||
|
19
|
19
371911200 Anneau retenue *circlip |
371911200 |
US $21.25 |
||
|
20
|
20
417126385
Came ass. *cam-ass.
|
417126385 |
— | ||
|
21
|
21
417126381 Protecteur *guard |
417126381 |
US $8.13 |
||
|
22
|
22
504099600 Rondelle butee *washer-stopper |
504099600 |
US $6.07 |
||
|
23
|
23
414978300 Ressort rappel *spring-release |
414978300 |
US $27.49 |
||
|
24
|
24
417126375
Entretoise *spacer
|
417126375 |
— | ||
|
25
|
25
371911000 Demi-cle *key-half |
371911000 |
US $38.34 |
||
|
26
|
26
504112300 Cale epaisseur *shim |
504112300 |
US $70.90 |
||
|
27
|
27
504149700
Couv.aerodynam.*cover-aerodyn.
|
504149700 |
— | ||
|
28
|
28
504151831 Couv.aerodynam.*cover-aerodyn. |
504151831 |
US $37.71 |
||
|
29
|
29
732600032
Screw-forming torx plus gm6174m
|
732600032 |
— | ||
|
30
|
30
417126322 Butee pivotante*swivel-abutment |
417126322 |
US $8.13 |
||
|
31
|
31
417300055
Protecteur *protector
|
417300055 |
— | ||
|
32
|
32
417300054
Entretoise *spacer
|
417300054 |
— | ||
|
33
|
33
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
34
|
34
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
35
|
35
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
36
|
36
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
37
|
37
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
