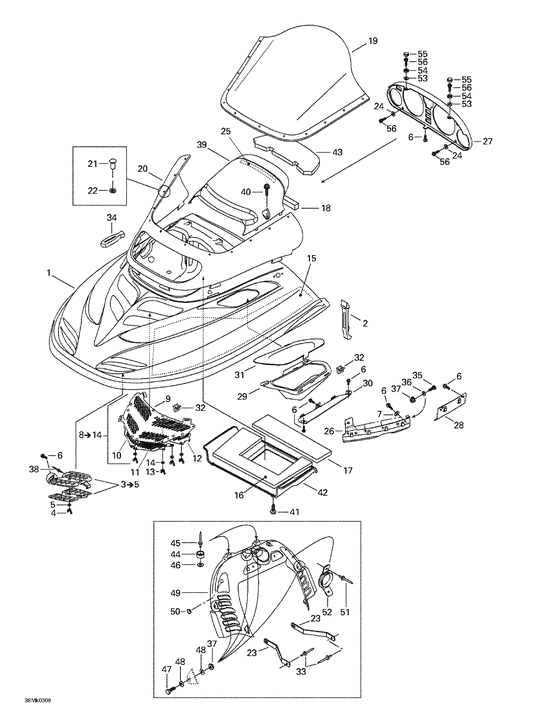

09- cab, console Diagram Bombardier Mach
- Year
- 2003
- Sales region
- General
- Model
- Mach Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
415045100
Mousse lat.dr. *foam-side rh
|
415045100 |
— | ||
|
|
517301300
Guide cap.ga.p.*guide-hood lh paint
|
517301300 |
— | ||
|
|
517289106
Gril.ga.coul.ar*gril-lh sl.rr
|
517289106 |
— | ||
|
|
517302208
Grille av.ga.as*grill-fr.lh assy
|
517302208 |
— | ||
|
|
517302167
Grille gauche *grill-lh
|
517302167 |
— | ||
|
1
|
1
517302484
Capot ret. *hood-rew.
|
517302484 |
— | ||
|
2
|
2
517302152 Loquet de capot*latch-hood |
517302152 |
US $14.67 |
||
|
3
|
3
517302205
Grille av.dr.a.*grill-fr.rh assy
Includes 3 - 5.; |
517302205 |
— | ||
|
4
|
4
414070300 Nut-wing ansi b18.17 |
414070300 |
US $19.60 |
||
|
5
|
5
234451418 Washer-lock serrated din.6798a |
234451418 |
US $5.30 |
||
|
6
|
6
732601210 Screw-tapp.hex.wr.hd.sltd. |
732601210 |
US $9.80 |
||
|
7
|
7
414833800
Washer-flat gauge
|
414833800 |
— | ||
| replacement | |||||
|
7
|
7
391301700
Rondelle *washer
|
391301700 |
— | ||
|
8
|
8
517302073
Grille cent.as.*grill-cent.assy
Includes 8 - 14.; |
517302073 |
— | ||
|
9
|
9
517289100
Grille cent.p. *grill-cent.paint
|
517289100 |
— | ||
|
10
|
10
517289103
Gril.coul.dr.av*grill-slid.rh fr
|
517289103 |
— | ||
|
11
|
11
517289104
Gril.coul.ga.av*gril-slid.lh fr.
|
517289104 |
— | ||
|
12
|
12
517289105
Gril.dr.coul.ar*gril-rh sl.rr
|
517289105 |
— | ||
|
13
|
13
414070300 Nut-wing ansi b18.17 |
414070300 |
US $19.60 |
||
|
14
|
14
234451418 Washer-lock serrated din.6798a |
234451418 |
US $5.30 |
||
|
15
|
15
517302184
Mousse lat.ga. *foam-side lh.
|
517302184 |
— | ||
|
16
|
16
415045300
Mousse centrale*foam-center
|
415045300 |
— | ||
|
17
|
17
415045400
Mousse arriere *foam-rear
|
415045400 |
— | ||
|
18
|
18
415045500
Mousse deflect.*foam-deflect.
|
415045500 |
— | ||
|
19
|
19
415045800
Pare-brise bas *windshield-low
|
415045800 |
— | ||
|
20
|
20
517302076
Supp.pare-brise*supp.-windshield
|
517302076 |
— | ||
|
21
|
21
572103500 Goujon *stud |
572103500 |
US $45.65 |
||
|
22
|
22
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
23
|
23
517296900
Attache peinte *bracket-paint
|
517296900 |
— | ||
|
24
|
24
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
25
|
25
415110900 Velcro mva *velcro mva #8-1/2 |
415110900 |
US $12.58 |
||
|
26
|
26
517301200
Guide cap.dr.p.*guide-hood rh paint
|
517301200 |
— | ||
|
27
|
27
572098600
Support ind. *support-ind.
|
572098600 |
— | ||
|
28
|
28
517302108
Guide peint *guide-paint
|
517302108 |
— | ||
|
29
|
29
517302155
Conduit air int*duct-inlet
|
517302155 |
— | ||
|
30
|
30
517302414
Plaque *plate
|
517302414 |
— | ||
|
31
|
31
517302156
Grille droite *grill-rh
|
517302156 |
— | ||
|
32
|
32
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
33
|
33
390910000 Rivet-pop 3/16 *rivet-pop 3/16 |
390910000 |
US $18.75 |
||
|
34
|
34
570023800 Loquet pare-bri*latch-windshield |
570023800 |
from US $6.09 |
||
|
35
|
35
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
36
|
36
420845270 Washer-lock serrated int.ext.m6 |
420845270 |
US $1.96 |
||
|
37
|
37
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
38
|
38
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
39
|
39
572107300
Deflect.adm.air*deflect-intake
|
572107300 |
— | ||
|
40
|
40
414745900 Screw-tuflock phillips |
414745900 |
US $21.80 |
||
|
41
|
41
243141640
Screw-plastite hex.wr.hd.
|
243141640 |
— | ||
|
42
|
42
572087800
Plaque *plate
|
572087800 |
— | ||
|
43
|
43
415123100
Mousse filtre *foam-filter
|
415123100 |
— | ||
|
44
|
44
415018100 Butee caout. *stopper-rubber |
415018100 |
US $15.65 |
||
|
45
|
45
390401600 Rivet-pop 1/8 *rivet-pop |
390401600 |
US $375.50 |
||
|
46
|
46
293150007 Rondelle *washer |
293150007 |
US $5.30 |
||
|
47
|
47
207152044 Screw-hex.cap din.933 |
207152044 |
US $11.70 |
||
|
48
|
48
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
49
|
49
517302249
Console *console
|
517302249 |
— | ||
|
50
|
50
572072100 Bouchon *cap |
572072100 |
US $62.60 |
||
|
51
|
51
390409400 Rivet-pop 5/32 *rivet-pop 5/32 |
390409400 |
US $7.10 |
||
|
52
|
52
517296800
Guide corde p. *guide-rope p
|
517296800 |
— | ||
|
53
|
53
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
54
|
54
414436800 Capuchon ret. *cap-retainer |
414436800 |
US $38.90 |
||
|
55
|
55
414436900 Cap.press.noir *cap-snap black |
414436900 |
US $4.98 |
||
|
56
|
56
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
