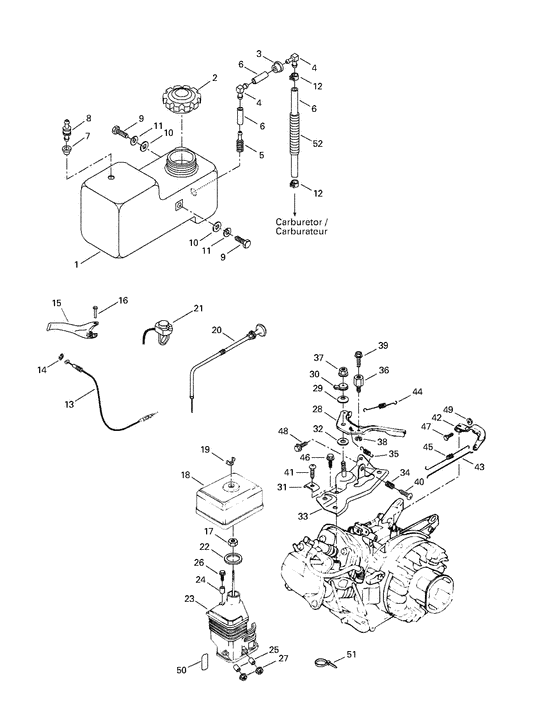

02- fuel system Diagram Bombardier Mini Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
571009800 Reservoir *fuel tank |
571009800 |
US $130.53 |
||
|
2
|
2
572039600 Bouchon *cap |
572039600 |
US $28.59 |
||
|
3
|
3
570045500 Passe-fils *grommet |
570045500 |
US $9.08 |
||
|
4
|
4
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
5
|
5
414865700 Crepine *filter-fuel |
414865700 |
US $12.21 |
||
|
6
|
6
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
7
|
7
570027700 Passe-fils *grommet |
570027700 |
US $55 |
||
|
8
|
8
414824700
Soupape retenue*valve-check
|
414824700 |
— | ||
| replacement | |||||
|
8
|
8
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
9
|
9
222061265
Screw-hex.cap din.933
|
222061265 |
— | ||
| replacement | |||||
|
9
|
9
207161244 Screw-hex.cap din.933 |
207161244 |
US $8.70 |
||
|
10
|
10
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
11
|
11
224761110
Washer-lock thin black din.127a
|
224761110 |
— | ||
| replacement | |||||
|
11
|
11
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
12
|
12
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
13
|
13
415087400
Cable accelerat*cable-throttle
|
415087400 |
— | ||
| replacement | |||||
|
13
|
13
512060024 Cable accelerat*cable-throttle |
512060024 |
US $73.41 |
||
|
14
|
14
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
15
|
15
581045600
Manette acc. *handle-throttle
|
581045600 |
— | ||
| replacement | |||||
|
15
|
15
506151227 Manette acc.p. *handle-throttle p. |
506151227 |
US $14.67 |
||
|
16
|
16
390502000
Rivet-tubular
|
390502000 |
— | ||
|
17
|
17
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
17
|
17
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
18
|
18
H17230ZE0820
Couvercle admi.*cover-intake
|
H17230ZE0820 |
— | ||
|
19
|
19
H90325044000
Ecrou *nut
|
H90325044000 |
— | ||
|
20
|
20
415108600 Cable etrang. *cable-choke |
415108600 |
US $106.47 |
||
|
21
|
21
410105500
Inter.urgence *switch-kill
|
410105500 |
— | ||
|
22
|
22
H16271ZE1000
Joint *packing
|
H16271ZE1000 |
— | ||
|
23
|
23
H17410ZE0030
Coude *elbow
Includes 23 - 25.; |
H17410ZE0030 |
— | ||
|
24
|
24
H17239ZE1000
Collet b *collar b
|
H17239ZE1000 |
— | ||
|
25
|
25
H17238ZE0010
Collet *collar
|
H17238ZE0010 |
— | ||
|
26
|
26
H957010602000
Boulon fl.6x20 *bolt fl.6x20
|
H957010602000 |
— | ||
|
27
|
27
H9405006000
Ecrou fl.6mm *nut fl.6mm
|
H9405006000 |
— | ||
| replacement | |||||
|
27
|
27
H9405006080
Ecrou fl.6mm *nut fl.6mm
|
H9405006080 |
— | ||
|
28
|
28
H16500ZH7810
Commande ass. *control assy.
Includes 28 - 41.; |
H16500ZH7810 |
— | ||
|
28
|
28
H16571ZH7000
Levier *lever control
|
H16571ZH7000 |
— | ||
|
29
|
29
H16574ZE1000
Ressort *spring lever
|
H16574ZE1000 |
— | ||
|
30
|
30
H16575ZH8000
Rondelle *washer
|
H16575ZH8000 |
— | ||
|
31
|
31
H16576891000
Porte cable *holder-cable
|
H16576891000 |
— | ||
|
32
|
32
H16578ZE1000
Entretoise *spacer
|
H16578ZE1000 |
— | ||
|
33
|
33
H16580ZH7810
Base *base
|
H16580ZH7810 |
— | ||
|
34
|
34
H16584883300
Ressort *spring
|
H16584883300 |
— | ||
|
35
|
35
H16592ZE1810
Ressort *spring
|
H16592ZE1810 |
— | ||
| replacement | |||||
|
35
|
35
512059048 Ressort rappel *spring-release |
512059048 |
US $7 |
||
|
36
|
36
H16594883010
Porte cable *holder-cable
|
H16594883010 |
— | ||
|
37
|
37
H90114SA0000
Ecrou *nut
|
H90114SA0000 |
— | ||
|
38
|
38
H90605230000
Circlip *circlip
|
H90605230000 |
— | ||
|
39
|
39
H93500040060H
Vis *screw
|
H93500040060H |
— | ||
|
40
|
40
H93500050250H
Vis *screw
|
H93500050250H |
— | ||
|
41
|
41
H93500050160A
New Genuine Part
|
H93500050160A |
— | ||
|
42
|
42
H16551ZE0010
Bras *arm governor
|
H16551ZE0010 |
— | ||
| replacement | |||||
|
42
|
42
H16551ZE1010
Bras *arm governor
|
H16551ZE1010 |
— | ||
|
43
|
43
H16555ZE0000
Tige *rod governor
|
H16555ZE0000 |
— | ||
|
44
|
44
H16561ZE0020
Ressort *spring governor
|
H16561ZE0020 |
— | ||
|
45
|
45
H16562ZE0020
Ressort *spring thro.
|
H16562ZE0020 |
— | ||
|
46
|
46
H90013883000
Vis *screw
|
H90013883000 |
— | ||
|
47
|
47
H90015ZE5010
Boulon *bolt
|
H90015ZE5010 |
— | ||
|
48
|
48
H90022888010
Vis *screw fl.6x20
|
H90022888010 |
— | ||
|
49
|
49
H9405006000
Ecrou fl.6mm *nut fl.6mm
|
H9405006000 |
— | ||
| replacement | |||||
|
49
|
49
H9405006080
Ecrou fl.6mm *nut fl.6mm
|
H9405006080 |
— | ||
|
50
|
50
H87528ZE1810
New Genuine Part
|
H87528ZE1810 |
— | ||
|
51
|
51
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
52
|
52
414612400
Gaine *housing
|
414612400 |
— | ||
| replacement | |||||
|
52
|
52
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
