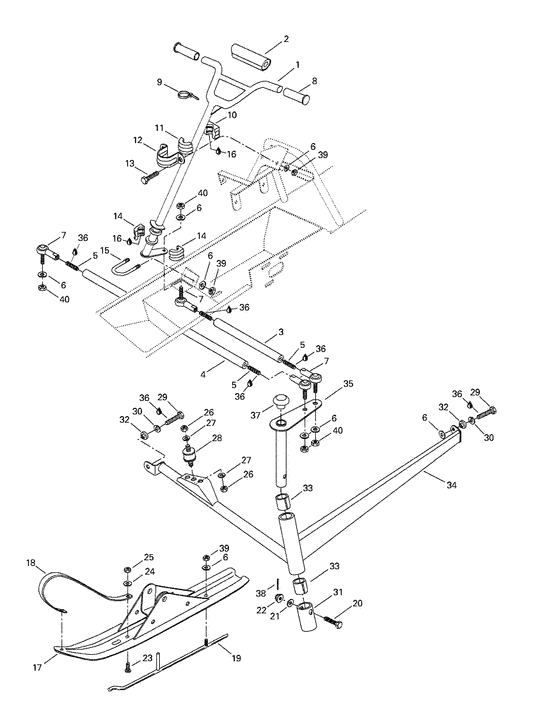

07- steering system and ski Diagram Bombardier Mini Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
506142900
Bras osc.ga.sou*arm-swing lh.w
|
506142900 |
— | ||
| replacement | |||||
|
|
506151422
Bras osc.ga. p.*arm-swing lh paint
|
506151422 |
— | ||
|
|
506143500
Jambe-ski ga.so*leg-ski weld.lh
|
506143500 |
— | ||
|
1
|
1
506143100
Guidon
|
506143100 |
— | ||
|
2
|
2
572103400
Couss.securite *pad-steering
|
572103400 |
— | ||
|
3
|
3
506148700
Barre accoup. *rod-tie
|
506148700 |
— | ||
| replacement | |||||
|
3
|
3
506151186
Barre accoupl. *rod-tie
|
506151186 |
— | ||
|
4
|
4
506147700
Barre accoup. *rod-tie
|
506147700 |
— | ||
| replacement | |||||
|
4
|
4
506151187
Barre accoupl. *rod-tie
|
506151187 |
— | ||
|
5
|
5
223584565
Vis de pression
|
223584565 |
— | ||
|
6
|
6
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
6
|
6
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
7
|
7
415108500 Joint rotule *joint-ball |
415108500 |
US $14.25 |
||
|
8
|
8
572064100 Gaine poignee *grip-handle |
572064100 |
US $22.98 |
||
|
9
|
9
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
10
|
10
572064400 Douille *bushing |
572064400 |
US $6.07 |
||
|
11
|
11
572064500 Douille *bushing |
572064500 |
US $6.07 |
||
|
12
|
12
517126200
Support retenue*support-retainer
|
517126200 |
— | ||
|
13
|
13
222082065
Screw-hex.cap din.933
|
222082065 |
— | ||
| replacement | |||||
|
13
|
13
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
14
|
14
572067100 Demi-douille *half-bushing |
572067100 |
US $24.44 |
||
|
15
|
15
506060600 Bride en u *clamp-u |
506060600 |
US $17.88 |
||
|
16
|
16
413706100
Graisse lith. *grease lith.
|
413706100 |
— | ||
|
17
|
17
505068300
Ski ass. *ski-assy
|
505068300 |
— | ||
|
18
|
18
572099500 Poignee ski *handle-ski |
572099500 |
US $30.41 |
||
|
19
|
19
505068400
Lisse ski soude*runner-ski weld.
|
505068400 |
— | ||
|
20
|
20
505070178 Boulon *bolt |
505070178 |
US $60.95 |
||
|
21
|
21
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
21
|
21
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
22
|
22
732610083
Nut-hex.castle din.935
|
732610083 |
— | ||
| replacement | |||||
|
22
|
22
232201414 Nut-hex.castle din.935 |
232201414 |
US $16 |
||
|
23
|
23
216362560
Screw-ctsk.ov.hd.ph.din.966a-a2
|
216362560 |
— | ||
| replacement | |||||
|
23
|
23
208562560 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208562560 |
US $15.05 |
||
|
24
|
24
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
25
|
25
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
25
|
25
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
26
|
26
228001045
Nut-hexagonal din.934
|
228001045 |
— | ||
| replacement | |||||
|
26
|
26
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
27
|
27
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
27
|
27
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
28
|
28
570128800
Tampon ancrage *mount-rubber
|
570128800 |
— | ||
|
29
|
29
222082565
Screw-hex.cap din.933
|
222082565 |
— | ||
| replacement | |||||
|
29
|
29
207182544 Screw-hex.cap din.933 |
207182544 |
US $11.70 |
||
|
30
|
30
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
30
|
30
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
31
|
31
503182700
Entretoise *spacer
|
503182700 |
— | ||
| replacement | |||||
|
31
|
31
505070457 Entretoise *spacer |
505070457 |
US $17.10 |
||
|
32
|
32
503177000
Entretoise *spacer
|
503177000 |
— | ||
|
33
|
33
415087300 Coussinet *cushion |
415087300 |
US $31.59 |
||
|
34
|
34
506142800
Bras osc.dr.sou*arm-swing rh.w
|
506142800 |
— | ||
| replacement | |||||
|
34
|
34
506151421
Bras osc.dr. p.*arm-swing rh paint
|
506151421 |
— | ||
|
35
|
35
506143400
Jambe-ski dr.so*leg-ski weld.rh
|
506143400 |
— | ||
|
36
|
36
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
36
|
36
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
37
|
37
572079100 Bouchon *cap |
572079100 |
US $5.30 |
||
|
38
|
38
371800200 Goupille fendue*pin-cotter |
371800200 |
US $7.10 |
||
|
39
|
39
228581045
Nut-stop elastic din.985
|
228581045 |
— | ||
| replacement | |||||
|
39
|
39
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
40
|
40
228081045
Nut-hexagonal din.934
|
228081045 |
— | ||
| replacement | |||||
|
40
|
40
232081414 Nut-hexagonal din.934 |
232081414 |
US $9.40 |
||
