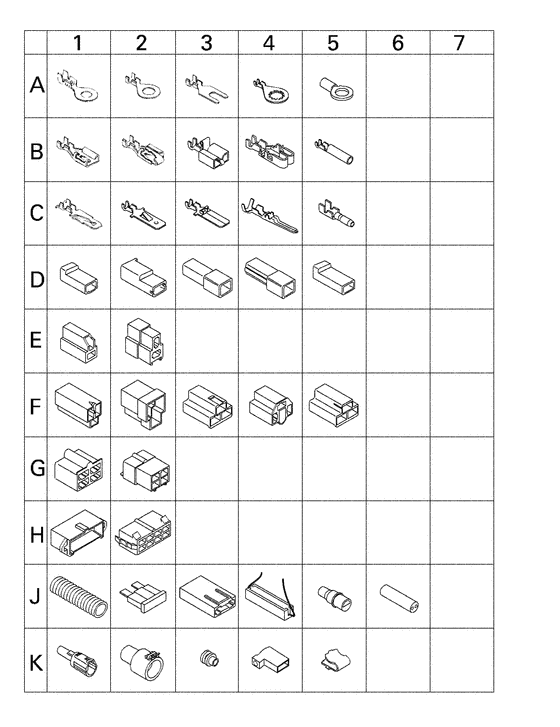

10- electrical accessories Diagram Bombardier Mini Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
B2
|
B2
561503800
Raccord femelle*receptacle
|
561503800 |
— | ||
| replacement | |||||
|
B2
|
B2
515175321 Cosse femelle *terminal-femal. |
515175321 |
US $62.60 |
||
|
D2
|
D2
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
F5
|
F5
409008600
Logement male *housing-male
|
409008600 |
— | ||
|
J3
|
J3
409004000 Porte fusible *holder-fuse |
409004000 |
US $7.31 |
||
|
A3
|
A3
561503000
Cosse ouverte
(16/14 gauge-8 mm stud); |
561503000 |
— | ||
|
B3
|
B3
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
G1
|
G1
409204900 Logement femel.*housing-female |
409204900 |
US $35.45 |
||
|
J4
|
J4
410911000
Resistance *res.pw10-30e
|
410911000 |
— | ||
| replacement | |||||
|
J4
|
J4
515175241 Resistance *resistance |
515175241 |
US $19.47 |
||
|
A4
|
A4
409001800
New Genuine Part
(16/14 gauge-10 mm stud); |
409001800 |
— | ||
|
D3
|
D3
409204700
New Genuine Part
|
409204700 |
— | ||
|
B4
|
B4
409003600
Cosse femelle *terminal-femal.
|
409003600 |
— | ||
|
G2
|
G2
409209300 Logement male *housing-male |
409209300 |
US $36.55 |
||
|
J5
|
J5
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
A5
|
A5
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
D4
|
D4
409201300
New Genuine Part
|
409201300 |
— | ||
|
B5
|
B5
290964068
Cosse femelle *terminal-femal
|
290964068 |
— | ||
| replacement | |||||
|
B5
|
B5
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
H1
|
H1
572151500
New Genuine Part
|
572151500 |
— | ||
|
J6
|
J6
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
B1
|
B1
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
D5
|
D5
409201200
Logement de raccord femelle (simple)
|
409201200 |
— | ||
|
C1
|
C1
409206100
Cosse male *terminal-male
|
409206100 |
— | ||
| replacement | |||||
|
C1
|
C1
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
H2
|
H2
572151200
Log.racc.fem. *housing-recept
|
572151200 |
— | ||
|
K1
|
K1
409208800
New Genuine Part
|
409208800 |
— | ||
|
B1
|
B1
409205300
Cosse femelle *terminal-femal.
|
409205300 |
— | ||
| replacement | |||||
|
B1
|
B1
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
E1
|
E1
409204600 Logement femel.*housing-female |
409204600 |
US $40.50 |
||
|
C1
|
C1
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
C1
|
C1
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
J1
|
J1
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
K2
|
K2
409207900 Logement male *housing-male |
409207900 |
US $10.17 |
||
|
B1
|
B1
561503100 Cosse femelle *terminal-femal.(Single 14 / Double 18/18 gauge); |
561503100 |
US $52 |
||
|
E2
|
E2
409204500
Logement male *housing-male
|
409204500 |
— | ||
|
C2
|
C2
409201000
New Genuine Part
|
409201000 |
— | ||
|
J1
|
J1
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
K3
|
K3
409208500
Joint *seal
|
409208500 |
— | ||
|
B2
|
B2
409011400
Cosse femelle *terminal-femal
|
409011400 |
— | ||
| replacement | |||||
|
B2
|
B2
515175320 Cosse femelle *terminal-femal. |
515175320 |
US $156.50 |
||
|
F1
|
F1
409204300
Logement femel.*housing-female
|
409204300 |
— | ||
|
C3
|
C3
409011100 Cosse male *terminal-male |
409011100 |
US $126.75 |
||
|
J1
|
J1
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
A1
|
A1
409012500
Cosse a anneau *barrel-open
(12/10-goujon 10 mm); |
409012500 |
— | ||
|
K3
|
K3
409012300 Joint *seal |
409012300 |
US $58.50 |
||
|
B2
|
B2
409011500 Cosse femelle *terminal-femal |
409011500 |
US $73.10 |
||
|
F2
|
F2
409204200 Logement male *housing-male |
409204200 |
US $50.70 |
||
|
C4
|
C4
409011300 Cosse male *terminal-male |
409011300 |
US $76.50 |
||
|
J1
|
J1
410112800
Gaine *tubing
|
410112800 |
— | ||
|
A1
|
A1
409012600
Cosse a anneau *barrel-open
(12/10 gauge-.257`` stud); |
409012600 |
— | ||
| replacement | |||||
|
A1
|
A1
278001392 Cosse a anneau *barrel-open(12/10 gauge-.257`` stud); |
278001392 |
US $62.10 |
||
|
B2
|
B2
409205100
Terminal femelle (calibre 18/16)
|
409205100 |
— | ||
|
F3
|
F3
409008500 Logement femel.*housing-female |
409008500 |
US $3.89 |
||
|
C5
|
C5
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
K4
|
K4
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
J1
|
J1
410112900
Gaine *tubing
|
410112900 |
— | ||
| replacement | |||||
|
J1
|
J1
409901300
Gaine low temp.vinyl
|
409901300 |
— | ||
|
A2
|
A2
561502700
New Genuine Part
(16/14 gauge-5/16`` stud); |
561502700 |
— | ||
|
B2
|
B2
561503200
Cosse femelle *terminal-femal.
(Single 14 / Double 18/18 gauge); |
561503200 |
— | ||
| replacement | |||||
|
B2
|
B2
515175253 Cosse femelle *terminal-femal(Single 14 / Double 18/18 gauge); |
515175253 |
US $73.10 |
||
|
D1
|
D1
409204800
Logement de terminal femelle (1 circuit)
|
409204800 |
— | ||
|
F4
|
F4
409202700 Logement femel.*housing-female |
409202700 |
US $58.30 |
||
|
K5
|
K5
409205600 Clip *clip |
409205600 |
US $20.25 |
||
|
J2
|
J2
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
A2
|
A2
409003200
Cosse a anneau *barrel-open
(16/14 gauge-1/4`` stud); |
409003200 |
— | ||
