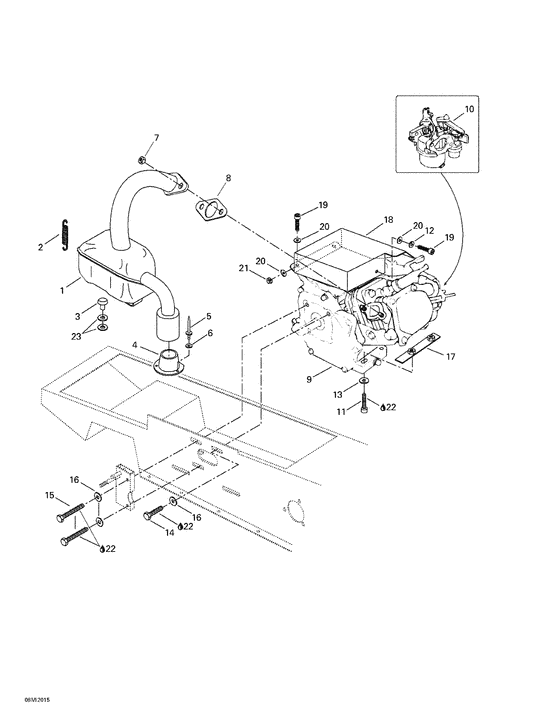

01- engine support and muffler Diagram Bombardier Mini Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
514098700 Silencieux soud*muffler-weld |
514098700 |
US $159.09 |
||
|
2
|
2
415104800 Ressort *spring |
415104800 |
US $14.25 |
||
|
3
|
3
570044700 Butoir caout. *bumper-rubber |
570044700 |
US $20.34 |
||
|
4
|
4
570028700 Rondelle echapp*grommet-exhaus |
570028700 |
US $22.39 |
||
|
5
|
5
390407200 Rivet-pop 3/16 *rivet-pop 3/16 |
390407200 |
US $47 |
||
|
6
|
6
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
7
|
7
H94001080000S
Ecrou hex.8mm *nut-hex.8mm
|
H94001080000S |
— | ||
|
8
|
8
H18381ZH8800
Joint *gasket
|
H18381ZH8800 |
— | ||
|
9
|
9
400101103
New Genuine Part
|
400101103 |
— | ||
|
10
|
10
H16100ZH7U51
Carburateur *carburetor
|
H16100ZH7U51 |
— | ||
| replacement | |||||
|
10
|
10
H16100ZK7U51
Carburateur *carburetor
|
H16100ZK7U51 |
— | ||
|
11
|
11
207084544 Screw-hex.cap din.931 |
207084544 |
US $19.20 |
||
|
12
|
12
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
13
|
13
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
16
|
16
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
17
|
17
512057400 Plaque butee so*plate-stop.wel |
512057400 |
US $17.29 |
||
|
18
|
18
512059187 Prot.moteur *protector-engine |
512059187 |
US $46.89 |
||
|
19
|
19
207063044 Screw-hex.cap din.931 |
207063044 |
US $16 |
||
|
20
|
20
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
21
|
21
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
23
|
23
583183400
Rondelle
|
583183400 |
— | ||
