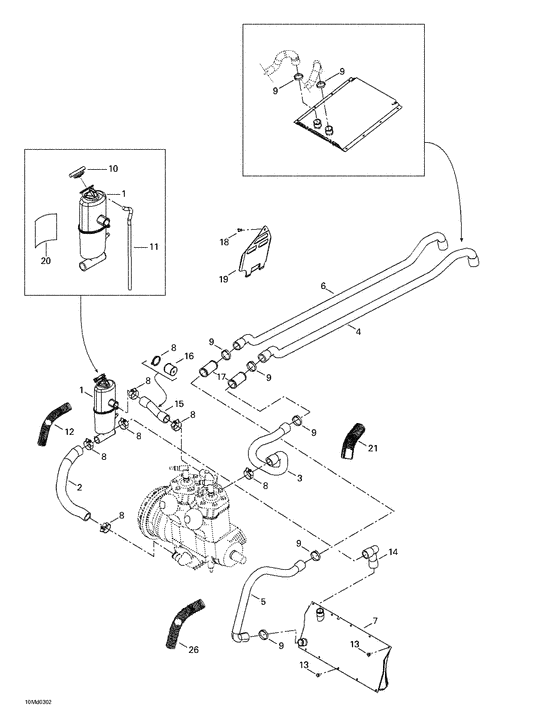

01- cooling system Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000182
Res.antigel *tank-coolant
|
509000182 |
— | ||
| replacement | |||||
|
1
|
1
509000325 Res.antigel *tank-coolant |
509000325 |
US $81.57 |
||
|
2
|
2
509000135 Boyau entre mot*hose-inlet eng |
509000135 |
US $41.77 |
||
|
3
|
3
509000220 Boyau sort.mot.*engine hose out. |
509000220 |
US $41.77 |
||
|
4
|
4
509000221
Boyau sort.mot.*engine hose out.
|
509000221 |
— | ||
|
5
|
5
509000222 Boyau entre rad*rad.hose-inlet |
509000222 |
US $47.91 |
||
|
6
|
6
509000223 Boyau entre rad*rad.hose-inlet |
509000223 |
US $92.77 |
||
|
7
|
7
518323387
Radiateur av.s.*front rad.-weld.
|
518323387 |
— | ||
| replacement | |||||
|
7
|
7
518323903 Radiateur avant*front radiator |
518323903 |
US $496.71 |
||
|
8
|
8
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
9
|
9
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
10
|
10
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
11
|
11
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
12
|
12
415084700 Gaine *protector tube |
415084700 |
US $2.53 |
||
|
13
|
13
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
13
|
13
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
14
|
14
509000184
Boyau sort.rad.*hose-out.rad.
|
509000184 |
— | ||
| replacement | |||||
|
14
|
14
509000266 Boyau sort.rad.*hose-out.rad. |
509000266 |
US $28.51 |
||
|
15
|
15
509000196
Boyau *hose
|
509000196 |
— | ||
|
16
|
16
509000197 Etrangleur *choke |
509000197 |
US $16.29 |
||
|
17
|
17
509000224 Raccord *fitting |
509000224 |
US $16.42 |
||
|
18
|
18
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
19
|
19
509000163
Deflecteur *deflector
|
509000163 |
— | ||
| replacement | |||||
|
19
|
19
509000257 Deflecteur *deflector |
509000257 |
US $11.49 |
||
|
20
|
20
509000190 Feuille reflect*reflectrice sheet |
509000190 |
US $9.13 |
||
|
21
|
21
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
