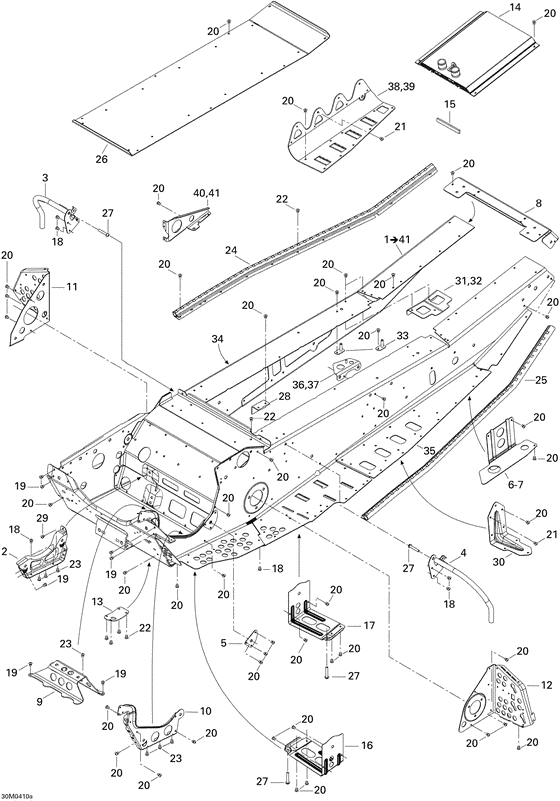

09- frame Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415128813
Chassis *frame service
INCLUDES 1 TO 41; |
415128813 |
— | ||
|
2
|
2
518323346 Supp.moteur *engine support |
518323346 |
US $16.76 |
||
|
3
|
3
518324162 Sup.acc.pi.dr.s*supp-toe hold rh weld |
518324162 |
US $47.91 |
||
|
4
|
4
518324163 Sup.acc.pi.ga.s*supp-toe hold lh weld |
518324163 |
US $47.91 |
||
|
5
|
5
518323507 Renfort ext. *reinf. outer |
518323507 |
US $11.49 |
||
|
6
|
6
518322666
Attache susp.dr*brkt-slide rhblack
|
518322666 |
— | ||
|
7
|
7
518322667
Attache susp.ga*bracket-slide lh blk
|
518322667 |
— | ||
|
8
|
8
518323835
Capuchon *rear cap
|
518323835 |
— | ||
|
9
|
9
518324093 Traverse centr.*cross-link |
518324093 |
US $49.93 |
||
|
10
|
10
518323241 Renfort int. *inner reinforcement |
518323241 |
US $22.71 |
||
|
11
|
11
518323805
Renfort droit *rh.footrest
|
518323805 |
— | ||
|
12
|
12
518323765
Renfort gauche *reinforcement
|
518323765 |
— | ||
| replacement | |||||
|
12
|
12
518324527
Renfort gauche *reinforcement
|
518324527 |
— | ||
|
13
|
13
518324169 Plaque *plate |
518324169 |
US $7.31 |
||
|
14
|
14
518324218
Radiateur arr.s*rear rad. weld
|
518324218 |
— | ||
|
15
|
15
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
16
|
16
518323499
Renf.marche-pie*renf.foot.rh
|
518323499 |
— | ||
|
17
|
17
518323502
Renf.marche-pie*renf.foot.lh
|
518323502 |
— | ||
|
18
|
18
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
19
|
19
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
20
|
20
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
20
|
20
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
21
|
21
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
22
|
22
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
23
|
23
390910300 Rivet henrob *rivet-henrob |
390910300 |
US $17.75 |
||
|
24
|
24
518323310
Rouleau droit *roller-rh
|
518323310 |
— | ||
|
25
|
25
518323311
Rouleau gauche *roller-lh
|
518323311 |
— | ||
|
26
|
26
518323323
Plaque centrale*center plate
|
518323323 |
— | ||
|
28
|
28
518323185
Renfort *reinforcement
|
518323185 |
— | ||
|
29
|
29
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
30
|
30
518323578 Renfort central*reinf.-center |
518323578 |
US $54.03 |
||
|
31
|
31
518323919
Renf.tunnel dr.*reinf-frame rh
|
518323919 |
— | ||
|
32
|
32
518323920
Renf.tunnel ga.*reinf-frame lh
|
518323920 |
— | ||
| replacement | |||||
|
32
|
32
518324432 Renf.tunnel ga.*reinf-frame lh |
518324432 |
US $10.47 |
||
|
33
|
33
518322791 Att.reserv.so. *brkt-tank weld |
518322791 |
US $11.49 |
||
|
34
|
34
518324094
Marche-pied dr.*footrest-rh
|
518324094 |
— | ||
|
35
|
35
518324095
Marche-pied ga.*footrest-lh
|
518324095 |
— | ||
|
36
|
36
518323336
Renfort tunnel *frame form. reinf.
|
518323336 |
— | ||
|
37
|
37
518323337
Renfort tunnel *frame form. reinf.
|
518323337 |
— | ||
|
38
|
38
518323334
Doublure tun.dr*liner-tun.rh
|
518323334 |
— | ||
| replacement | |||||
|
38
|
38
518325023 Doublure tun.dr*liner-tun.rh |
518325023 |
US $43.81 |
||
|
39
|
39
518323335
Doublure tun.ga*liner-tun.lh<
|
518323335 |
— | ||
| replacement | |||||
|
39
|
39
518325024
Doublure tun.ga*liner-tun.lh<
|
518325024 |
— | ||
|
40
|
40
518323187 Attache *bracket |
518323187 |
US $44.83 |
||
|
41
|
41
518323188 Attache *bracket |
518323188 |
US $42.81 |
||
