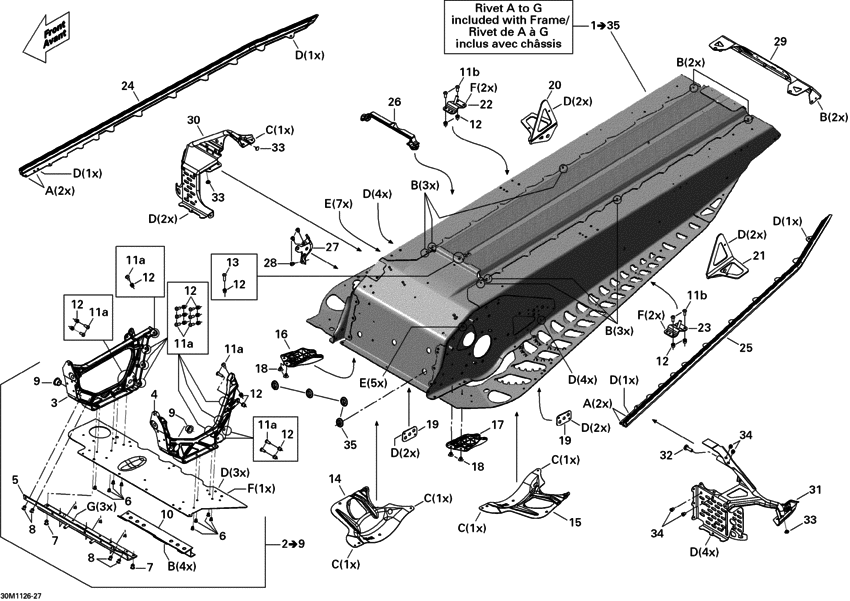

09- Frame Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415129560
FRAME ASS Y, 120"
|
415129560 |
— | ||
|
2
|
2
518326348
E-MODULE ASS Y
|
518326348 |
— | ||
|
3
|
3
518325922
Longeron dr *rh member
|
518325922 |
— | ||
|
4
|
4
518325558 LH MEMBER |
518325558 |
US $223.33 |
||
|
5
|
5
518325818 FRONT MEMBER |
518325818 |
US $55.93 |
||
|
6
|
6
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
7
|
7
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
8
|
8
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
9
|
9
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
9
|
9
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
10
|
10
518326120 ENGINE SUPPORT |
518326120 |
US $42.81 |
||
|
11a
|
11a
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
11b
|
11b
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
12
|
12
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
13
|
13
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
14
|
14
518324874 Renfort dr *reinforcement |
518324874 |
US $22.39 |
||
|
15
|
15
518324875 Renfort ga *reinforcement |
518324875 |
US $22.39 |
||
|
16
|
16
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
17
|
17
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
18
|
18
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
18
|
18
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
19
|
19
518201321 Plaque renfort *plate-reinf. |
518201321 |
US $8.38 |
||
|
20
|
20
518324885 Att.susp.dr. *slide brkt rh |
518324885 |
US $33.61 |
||
|
21
|
21
518324886 Att.susp. *slide brkt |
518324886 |
US $33.61 |
||
|
22
|
22
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
23
|
23
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
24
|
24
518324812 Rouleau droit *roller-rh |
518324812 |
US $170.29 |
||
|
25
|
25
518324813 Rouleau gauche *roller-lh |
518324813 |
US $170.29 |
||
|
26
|
26
518326656 JOINT *SEAL |
518326656 |
US $8.38 |
||
|
27
|
27
518325559 RH ENGINE SUPPORT |
518325559 |
US $18.85 |
||
|
28
|
28
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
29
|
29
518325421
Capuchon *rear cap
|
518325421 |
— | ||
|
30
|
30
518326216 ETRIER DROIT *RH.STIRUP |
518326216 |
US $151.95 |
||
|
31
|
31
518326239 ETRIER GA *LH.STIRUP |
518326239 |
US $151.95 |
||
|
32
|
32
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
33
|
33
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
34
|
34
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
35
|
35
293730052 BLACK PLUG |
293730052 |
US $12.52 |
||
|
A
|
A
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
B
|
B
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
C
|
C
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
D
|
D
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
E
|
E
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
F
|
F
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
G
|
G
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
