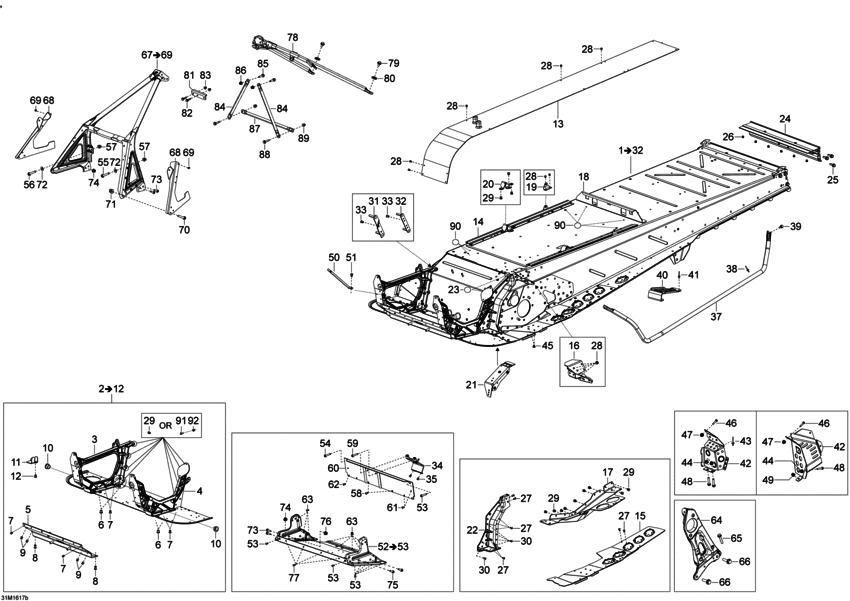

09- Frame - 600 E-Tec Diagram Bombardier Skandic
- Year
- 2016
- Model
- Skandic Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518328839 CHASSIS *FRAME XU E-TEC SC-5 BLACK |
518328839 |
US $4,751.19 |
||
|
1
|
1
518328857 FRAME SWT XU E-TEC SC-5 BLACK |
518328857 |
US $5,508.05 |
||
|
2
|
2
518328813 MODULE E ETEC |
518328813 |
US $860.85 |
||
|
3
|
3
518326795 RH MEMBER |
518326795 |
US $306.88 |
||
|
4
|
4
518326796 LH MEMBER |
518326796 |
US $201.93 |
||
|
5
|
5
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
6
|
6
605636002 CLINCH NUT HEXSERT M8 |
605636002 |
US $9.55 |
||
|
7
|
7
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
8
|
8
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
9
|
9
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
10
|
10
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
11
|
11
518328194 MUFFLER SUPPORT |
518328194 |
US $16.29 |
||
|
12
|
12
293150163 RIVET HUCKLOK 4,8 MM HKLP-R6-5GAT |
293150163 |
US $3.96 |
||
|
13
|
13
509000975 TUNNEL RADIATOR ETEC |
509000975 |
US $767.02 |
||
|
14
|
14
518326107 FASTENING RAIL |
518326107 |
US $14.67 |
||
|
15
|
15
518328821 FOOTREST LH |
518328821 |
US $79.53 |
||
|
15
|
15
XXX
Not Sold
|
XXX |
— | ||
|
15
|
15
518328822 FOOTREST RH |
518328822 |
US $79.53 |
||
|
16
|
16
605355235 FASTENING BRACKET |
605355235 |
US $51.97 |
||
|
16
|
16
518327884 FASTENING BRACKET |
518327884 |
US $22.39 |
||
|
17
|
17
518328016 DRIVE AXLE COVER LH |
518328016 |
US $184.59 |
||
|
17
|
17
518328014 DRIVE AXLE COVER LH |
518328014 |
US $184.59 |
||
|
17
|
17
518328017 DRIVE AXLE COVER RH |
518328017 |
US $184.59 |
||
|
17
|
17
518328015 DRIVE AXLE COVER RH |
518328015 |
US $184.59 |
||
|
18
|
18
518325986 BATTERY SUPPORT PLATE |
518325986 |
US $69.33 |
||
|
18
|
18
518327003 TUNNEL SUPPORT |
518327003 |
US $23.41 |
||
|
19
|
19
518327457 SEAT BOX BRACKET |
518327457 |
US $26.49 |
||
|
20
|
20
518326109 SUPPORT TUBE BRACKET LH |
518326109 |
US $41.77 |
||
|
20
|
20
518326110 SUPPORT TUBE BRACKET RH |
518326110 |
US $41.77 |
||
|
21
|
21
518326430 CLINCH NUT PLATE |
518326430 |
US $42.81 |
||
|
21
|
21
518328096 CLINCH NUT PLATE |
518328096 |
US $42.81 |
||
|
22
|
22
518325524 FRAME CORNER LH |
518325524 |
US $47.91 |
||
|
22
|
22
518325643 FRAME CORNER LH |
518325643 |
US $52.75 |
||
|
22
|
22
518328024 FRAME CORNER RH |
518328024 |
US $47.91 |
||
|
22
|
22
518325644 FRAME CORNER RH |
518325644 |
US $47.91 |
||
|
23
|
23
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
24
|
24
518328748 REAR PROFILE 59 |
518328748 |
US $209.05 |
||
|
24
|
24
518328749 REAR PROFILE 69 |
518328749 |
US $209.05 |
||
|
25
|
25
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
26
|
26
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
27
|
27
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
28
|
28
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
29
|
29
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
30
|
30
293150183 RIVET *RIVET |
293150183 |
US $2.04 |
||
|
31
|
31
518326123 Gearbox front plate |
518326123 |
US $15.73 |
||
|
32
|
32
518326124 Gearbox rear plate |
518326124 |
US $14.67 |
||
|
33
|
33
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
33
|
33
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
34
|
34
518325943 Support mag *mag support |
518325943 |
US $22.39 |
||
|
35
|
35
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
36
|
36
518326963 FOOTBOARD SUPPORT TUBE, LH |
518326963 |
US $122.37 |
||
|
36
|
36
518327595 FOOTBOARD SUPPORT TUBE LH |
518327595 |
US $78.49 |
||
|
36
|
36
518326964 FOOTBOARD SUPPORT TUBE, RH |
518326964 |
US $122.37 |
||
|
36
|
36
518327596 FOOTBOARD SUPPORT TUBE RH |
518327596 |
US $78.49 |
||
|
37
|
37
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
38
|
38
207662056 SCREW HEX. FLANGE M6 X 20 |
207662056 |
US $1.31 |
||
|
39
|
39
520001208 BLACK REAR FOOTREST |
520001208 |
US $17.82 |
||
|
40
|
40
293150102 Rivet-pop 3/16 *pop rivet 3/16 |
293150102 |
US $9.40 |
||
|
41
|
41
518328819 TOE HOOK WT LH BLACK |
518328819 |
US $90.73 |
||
|
41
|
41
518328921 TOE HOOK LH BLACK 69 LTS |
518328921 |
US $66.25 |
||
|
41
|
41
518328820 TOE HOOK WT RH BLACK |
518328820 |
US $90.73 |
||
|
41
|
41
518328922 TOE HOOK RH 69 BLACK |
518328922 |
US $66.25 |
||
|
42
|
42
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
43
|
43
605636003 Clinch nut m6 hexsert |
605636003 |
US $5.46 |
||
|
44
|
44
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
45
|
45
207662056 SCREW HEX. FLANGE M6 X 20 |
207662056 |
US $1.31 |
||
|
46
|
46
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
47
|
47
250000717 TORX HEAD SCREW M6 X 16 |
250000717 |
US $2.72 |
||
|
48
|
48
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
49
|
49
514054846 SPRING BRACKET |
514054846 |
US $4.15 |
||
|
50
|
50
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
51
|
51
518326213 MODULE S *CROSS MEMBER |
518326213 |
US $749.67 |
||
|
52
|
52
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
53
|
53
210262050 SCREW-FORMING HEX.HD.FL.BZN |
210262050 |
US $27.20 |
||
|
54
|
54
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
55
|
55
207563034 Screw-hex.flange din.6921 s.grip |
207563034 |
US $13.60 |
||
|
56
|
56
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
57
|
57
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
58
|
58
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
59
|
59
518325620 SUPPORT PLATE |
518325620 |
US $98.89 |
||
|
60
|
60
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
61
|
61
293150163 RIVET HUCKLOK 4,8 MM HKLP-R6-5GAT |
293150163 |
US $3.96 |
||
|
62
|
62
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
63
|
63
518328434 PULLEY SUPPORT |
518328434 |
US $127.45 |
||
|
64
|
64
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
65
|
65
207583086 Screw-hex.flange din.6921 s.grip |
207583086 |
US $5.71 |
||
|
66
|
66
518326754 FRONT MEMBER ASS Y |
518326754 |
US $657.87 |
||
|
67
|
67
502007077 BUMPER FASTENER LH |
502007077 |
US $48.93 |
||
|
67
|
67
502007078 BUMPER FASTENER RH |
502007078 |
US $48.93 |
||
|
68
|
68
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
69
|
69
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
70
|
70
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
71
|
71
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
72
|
72
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
73
|
73
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
74
|
74
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
75
|
75
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
76
|
76
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
77
|
77
518326103
Upper support tube welded
|
518326103 |
— | ||
|
78
|
78
207662056 SCREW HEX. FLANGE M6 X 20 |
207662056 |
US $1.31 |
||
|
79
|
79
XXX
Not Sold
|
XXX |
— | ||
|
80
|
80
518327029 EXTENTION PLATE |
518327029 |
US $7.31 |
||
|
81
|
81
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
82
|
82
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
83
|
83
518325114 Support colonne*support |
518325114 |
US $19.92 |
||
|
84
|
84
207662056 SCREW HEX. FLANGE M6 X 20 |
207662056 |
US $1.31 |
||
|
85
|
85
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
86
|
86
518325115 Support colonne*upper column |
518325115 |
US $19.92 |
||
|
87
|
87
207662556 HEX. FLANGE SCREW M6 X 25 |
207662556 |
US $5.71 |
||
|
88
|
88
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
89
|
89
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
90
|
90
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
91
|
91
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
