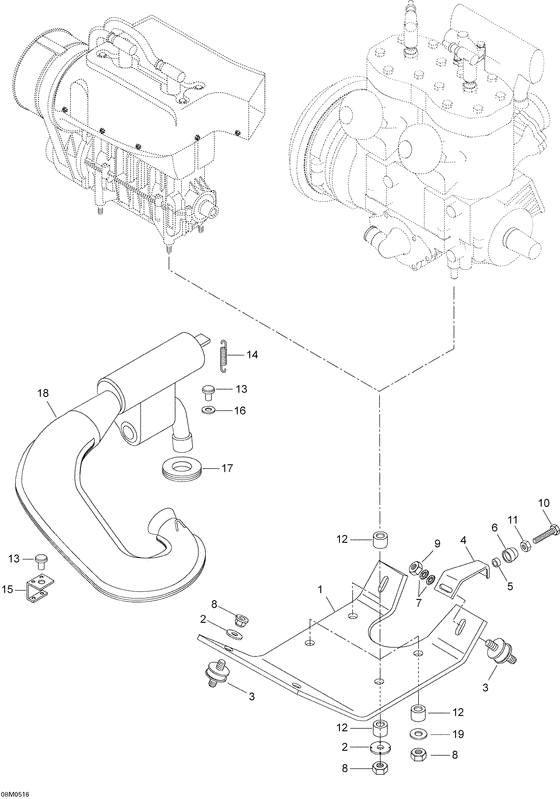

01- engine and engine support, 550f Diagram Bombardier Skandic
- Year
- 2005
- Sales region
- General
- Model
- Skandic Wide Track
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
M5342951
Support moteur *support-engine
550F; |
M5342951 |
— | ||
|
2
|
2
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
3
|
3
570128700 Tampon ancrage *mount-rubber |
570128700 |
US $52.14 |
||
|
4
|
4
M539902
Support *support
|
M539902 |
— | ||
|
5
|
5
M2846014
Rondelle caout.*washer-rubber
|
M2846014 |
— | ||
|
6
|
6
M5440091
Douille *sleeve
|
M5440091 |
— | ||
| replacement | |||||
|
6
|
6
605449240 Douille *sleeve |
605449240 |
US $30.57 |
||
|
7
|
7
M20068
Washer-lock
|
M20068 |
— | ||
|
8
|
8
233601416 Nut-locking elastic din.982 |
233601416 |
US $24 |
||
|
9
|
9
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
10
|
10
M40121
Screw-hex.cap m8x40
|
M40121 |
— | ||
|
11
|
11
M33003 Nut |
M33003 |
US $1.79 |
||
|
12
|
12
M5440678 Chemise *sleeve550F; |
M5440678 |
US $20.37 |
||
|
13
|
13
570048700
Butoir caout. *bumper-rubber
|
570048700 |
— | ||
| replacement | |||||
|
13
|
13
514053654 Butoir caout. *bumper rubber |
514053654 |
US $111.12 |
||
|
14
|
14
420938795 Ressort *spring |
420938795 |
US $40.65 |
||
|
15
|
15
M5442681
Support *support
|
M5442681 |
— | ||
|
16
|
16
M20087
Washer
|
M20087 |
— | ||
|
17
|
17
570039000 Grommet-exhaust d70550F; |
570039000 |
US $29.29 |
||
|
18
|
18
605150131 Tuyau echapp.as*pipe-tuned as550F; |
605150131 |
US $783.34 |
||
