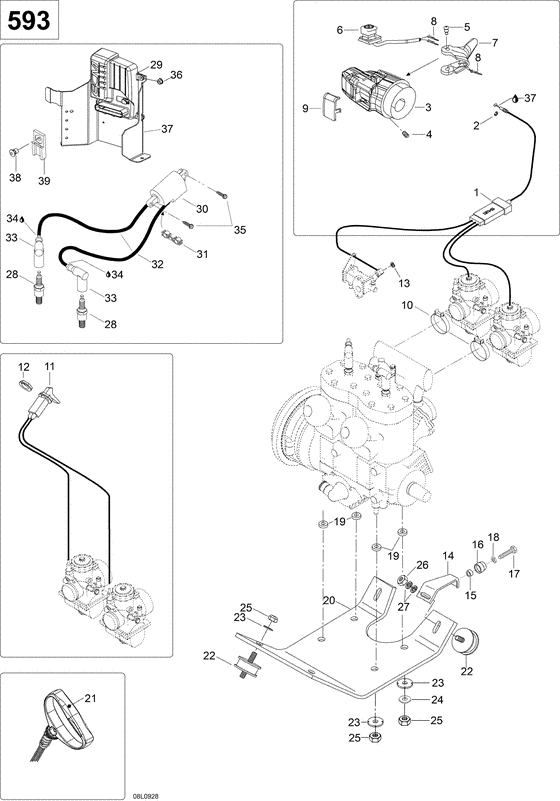

01- engine and engine support Diagram Bombardier Skandic
- Year
- 2009
- Sales region
- General
- Model
- Skandic Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
M5246328
Cable accelerat*cable-throttle
|
M5246328 |
— | ||
|
2
|
2
M31038 Circlip *circlip |
M31038 |
US $1.96 |
||
|
3
|
3
605355737 Logement acc. *housing-throttle rew. |
605355737 |
US $60.13 |
||
|
4
|
4
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
5
|
5
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
6
|
6
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
7
|
7
512059348 Manette ass. *handle-assy |
512059348 |
US $85.65 |
||
|
8
|
8
M42603
Cosse male *terminal-male
|
M42603 |
— | ||
|
9
|
9
572100901 Couv.interrupt.*cover-switch |
572100901 |
US $14.35 |
||
|
10
|
10
414532700 Collet *collar |
414532700 |
US $34.65 |
||
|
11
|
11
M535482
Cable etrang. *cable-choke
Includes 11 to 12; |
M535482 |
— | ||
| replacement | |||||
|
11
|
11
535482 ChokeIncludes 11 to 12; |
535482 |
US $72.30 |
||
|
12
|
12
512059364 Ecrou plastique*nut-plastic |
512059364 |
US $42 |
||
|
13
|
13
M31035
Circlip *circlip
|
M31035 |
— | ||
|
14
|
14
605352447 Support *torque support |
605352447 |
US $19.92 |
||
|
15
|
15
M2846014
Rondelle caout.*washer-rubber
|
M2846014 |
— | ||
|
16
|
16
605449240 Douille *sleeve |
605449240 |
US $30.57 |
||
|
17
|
17
M40121
Screw-hex.cap m8x40
|
M40121 |
— | ||
|
18
|
18
M33003 Nut |
M33003 |
US $1.79 |
||
|
19
|
19
M5446347 Chemise *sleeve |
M5446347 |
US $17.29 |
||
|
20
|
20
605248305 Socle *engine support |
605248305 |
US $821.07 |
||
|
21
|
21
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
22
|
22
570128700 Tampon ancrage *mount-rubber |
570128700 |
US $52.14 |
||
|
23
|
23
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
24
|
24
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
25
|
25
233601416 Nut-locking elastic din.982 |
233601416 |
US $24 |
||
|
26
|
26
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
27
|
27
M20068
Washer-lock
|
M20068 |
— | ||
|
28
|
28
512059552 Bougie br9ecs-5*plug-spark br9ecs-5 |
512059552 |
US $116.80 |
||
|
29
|
29
605155103
Calibration module
|
605155103 |
— | ||
|
30
|
30
512059968 Bobine allumage*coil-ignitionIncludes 30 to 35; |
512059968 |
US $61.15 |
||
|
36
|
36
M33200 Flange nut m6 |
M33200 |
US $1.96 |
||
|
37
|
37
605353805 Support uce *support-ecu |
605353805 |
US $47.91 |
||
|
38
|
38
M36005
Rivet *rivet
|
M36005 |
— | ||
| replacement | |||||
|
38
|
38
36005 Rivet |
36005 |
US $2.33 |
||
|
39
|
39
515175917 Clip *clip |
515175917 |
US $11.17 |
||
