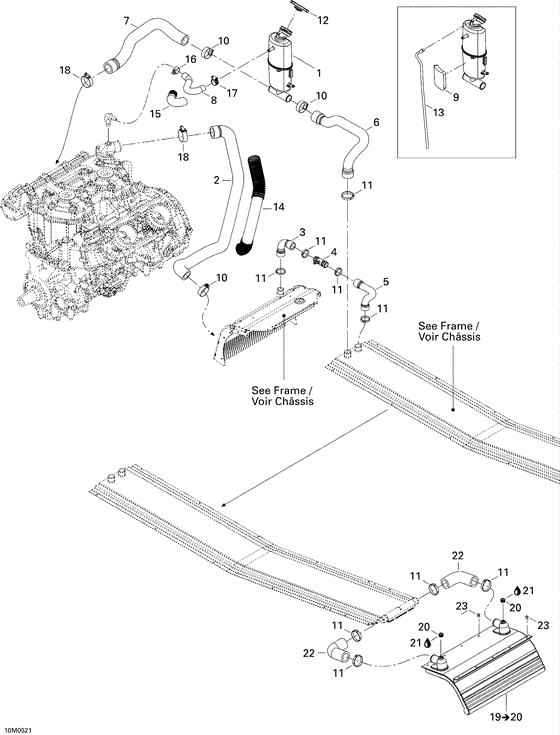

01- cooling system Diagram Bombardier Summit
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000323
Res.antigel *tank-coolant
|
509000323 |
— | ||
| replacement | |||||
|
1
|
1
509000409 Res.antigel *tank-coolant |
509000409 |
US $82.57 |
||
|
2
|
2
509000312
Boyau sortie mo*hose-outlet en
|
509000312 |
— | ||
| replacement | |||||
|
2
|
2
509000395 Boyau sortie mo*hose-outlet en |
509000395 |
US $54.03 |
||
|
3
|
3
509000337 Boyau inter rad*hose-radiator |
509000337 |
US $18.33 |
||
|
4
|
4
509000336
Raccord en t *t-fitting
|
509000336 |
— | ||
|
5
|
5
509000338 Boyau radiateur*hose-radiator |
509000338 |
US $20.37 |
||
|
6
|
6
509000313 Boyau sort.rad.*hose-out.rad. |
509000313 |
US $37.71 |
||
|
7
|
7
509000351 Boyau radiateur*radiator hose |
509000351 |
US $28.51 |
||
|
8
|
8
509000297 Boyau purge *breather hose |
509000297 |
US $16.29 |
||
|
9
|
9
509000353 Mousse *foam |
509000353 |
US $6.07 |
||
|
10
|
10
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
11
|
11
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
12
|
12
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
13
|
13
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
14
|
14
515176260 Gaine 35mm *tubing-35mm |
515176260 |
US $10.47 |
||
|
15
|
15
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
16
|
16
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
17
|
17
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
18
|
18
509000352 Bride serrage *gear clamp |
509000352 |
US $8.13 |
||
|
19
|
19
518324335
Radiateur ar so*rear rad weld
Includes 19 To 20; |
518324335 |
— | ||
|
20
|
20
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
US $5.61 |
||
|
21
|
21
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
22
|
22
509000322 Boyau arri+re *hose-rear |
509000322 |
US $17.29 |
||
|
23
|
23
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
