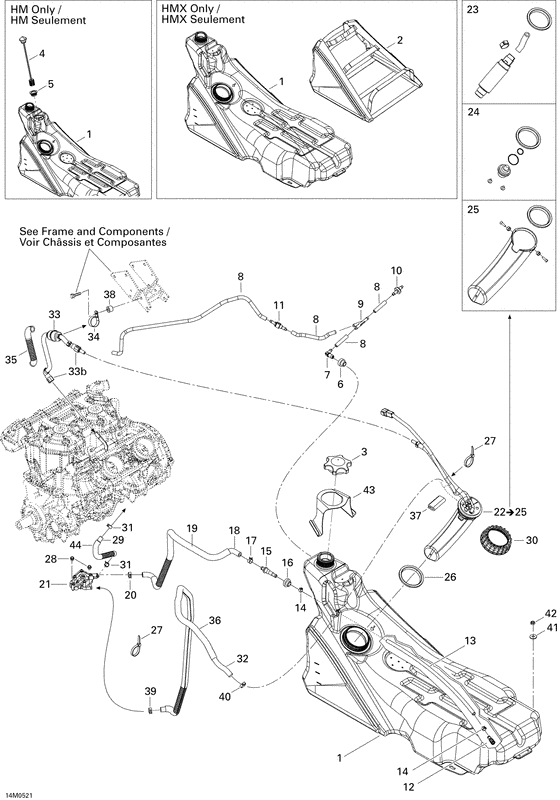

02- fuel system Diagram Bombardier Summit
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513033093
Reservoir essen*fuel tank
Highmark; |
513033093 |
— | ||
|
1
|
1
513033112
Reservoir essen*fuel tank
Highmark X; |
513033112 |
— | ||
|
2
|
2
513033075 Couvre reserv. *tank coverHighmark X; |
513033075 |
US $129.78 |
||
|
3
|
3
513033024
Bouchon essence*cap-fuel
|
513033024 |
— | ||
|
4
|
4
513033092
Indicat.essence*fuel gauge
Highmark; |
513033092 |
— | ||
|
5
|
5
293720058 Passe-fils *grommetHighmark; |
293720058 |
US $12.43 |
||
|
6
|
6
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
7
|
7
414580700 Raccord male *connector-male |
414580700 |
US $26.60 |
||
|
8
|
8
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
9
|
9
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
10
|
10
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
11
|
11
275500505 Soupape retenue*valve-check |
275500505 |
US $27.56 |
||
|
12
|
12
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
13
|
13
513033070 Boyau polyure *hose-polyurethane |
513033070 |
US $12.22 |
||
|
14
|
14
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
15
|
15
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
16
|
16
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
17
|
17
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
18
|
18
513033121 Boyau forme *hose-formed |
513033121 |
US $53.01 |
||
|
19
|
19
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
20
|
20
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
21
|
21
403901816
Pompe a essence*pump-fuel
|
403901816 |
— | ||
|
22
|
22
513033120 Pompe essence *fuel pumpIncludes 22 To 25; |
513033120 |
US $595.65 |
||
|
23
|
23
861302700 Ensemble pompe*kit pump hose |
861302700 |
US $449.79 |
||
|
24
|
24
861302100 Ens.regulateur*kit regulator |
861302100 |
US $184.59 |
||
|
25
|
25
861302800
Ens.r+servoir *transl. tank fuel kit
|
861302800 |
— | ||
|
26
|
26
513033039 Joint etanche *seal |
513033039 |
US $11 |
||
|
27
|
27
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
28
|
28
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
|
29
|
29
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
30
|
30
513033040 Ecrou mod.pompe*nut-fuel pump mod |
513033040 |
from US $26.10 |
||
|
31
|
31
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
32
|
32
513033022
Boyau 5/16 i.d.*hose-5/16 i.d.
|
513033022 |
— | ||
|
33
|
33
513033133 Filtre essence *fuel filter |
513033133 |
US $91.77 |
||
|
33b
|
33b
513033135 Attache verrou *locking tab |
513033135 |
US $14.18 |
||
|
34
|
34
513033047 Attache collier*open clamp |
513033047 |
US $6.95 |
||
|
35
|
35
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
36
|
36
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
37
|
37
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
38
|
38
503189448 Entretoise *spacer |
503189448 |
US $11.49 |
||
|
39
|
39
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
40
|
40
293650047 Bride serrage *clamp-oetiker |
293650047 |
US $21.70 |
||
|
41
|
41
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
42
|
42
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
43
|
43
513033066 Bretelle *support |
513033066 |
US $15.90 |
||
|
44
|
44
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
