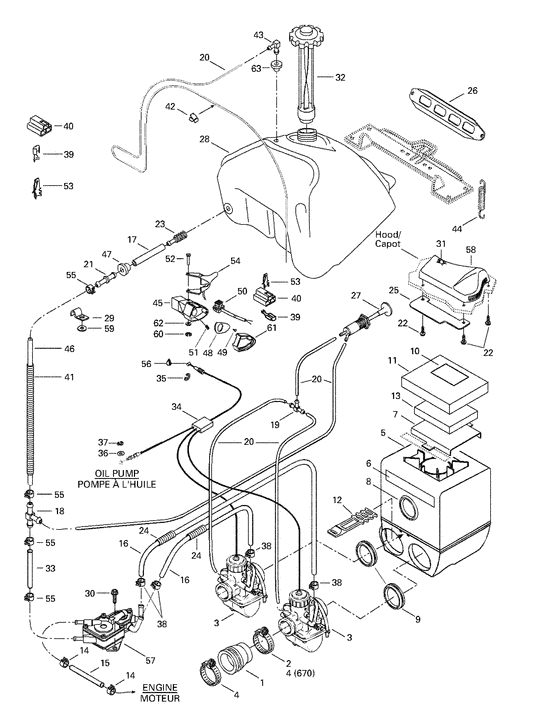

02- fuel system Diagram Bombardier Summit
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
580667102
New Genuine Part
Summit 670.; |
580667102 |
— | ||
|
|
570273900 Passe-fils *grommetSummit 583. Summit 670.; |
570273900 |
US $11.76 |
||
|
|
570048400
Adapteur carb. *adaptor-carb.
Summit 670.; |
570048400 |
— | ||
|
|
403801200
Pompe a essence*pump-fuel
Summit 583. Summit 670.; |
403801200 |
— | ||
| replacement | |||||
|
|
513032919
Pompe a essence*pump-fuel
Summit 583. Summit 670.; |
513032919 |
— | ||
|
|
414872100 Crepine *filter-fuelSummit 583. Summit 670.; |
414872100 |
US $14.03 |
||
|
|
415080000
Gaine *protector tube
Summit 583. Summit 670.; |
415080000 |
— | ||
|
|
415111400
Boyau forme *tube-formed
Summit 583. Summit 670.; |
415111400 |
— | ||
|
|
415005700 Boyau polyure *hose-polyurethaneSummit 583. Summit 670.; |
415005700 |
US $9.78 |
||
|
|
403136500
Carburateur vm 38-388 (pdm)
Summit 583.; |
403136500 |
— | ||
|
|
414966201
Cable accelerat*cable-throttle
Summit 670.; |
414966201 |
— | ||
|
|
403136900
Carburateur vm 40-103 (pdm)
Summit 670.; |
403136900 |
— | ||
|
|
570049000
Adap.admis.vm40*adap-air vm-40
Summit 670.; |
570049000 |
— | ||
|
|
403134900
Carburateur vm 38-385 (mag)
Summit 500.; |
403134900 |
— | ||
|
|
415119300 Raccord en t *fitting-tSummit 583. Summit 670.; |
415119300 |
US $30.10 |
||
|
|
403136600
Carburateur vm 38-389 (mag)
Summit 583.; |
403136600 |
— | ||
|
|
403137000
Carburateur vm 38-104 (mag)
Summit 670.; |
403137000 |
— | ||
|
|
572101900
Manette ass. *handle-assy
Summit 670.; |
572101900 |
— | ||
| replacement | |||||
|
|
512059172
Manette ass. *handle-assy
Summit 670.; |
512059172 |
— | ||
|
|
415080300 Conduit d ess. *line-fuelSummit 583. Summit 670.; |
415080300 |
US $190.60 |
||
|
|
414655700 Bride a ressort*clamp-springSummit 583. Summit 670.; |
414655700 |
US $9.50 |
||
|
|
414872700 Raccord male *connector-maleSummit 583. Summit 670.; |
414872700 |
US $9.80 |
||
|
1
|
1
570048100
Adapteur carb. *adaptor-carb.
Summit 500. Summit 583.; |
570048100 |
— | ||
|
2
|
2
415038400
Collet *collar
Summit 500. Summit 583.; |
415038400 |
— | ||
| replacement | |||||
|
2
|
2
293650156
Bride serrage *clamp-gemi
Summit 500. Summit 583.; |
293650156 |
— | ||
|
3
|
3
403134800
Carburateur vm 38-384 (pdm)
Summit 500.; |
403134800 |
— | ||
|
4
|
4
414532800
Collet *collar
|
414532800 |
— | ||
|
5
|
5
580667101
New Genuine Part
Includes 5 - 13. Summit 500. Summit 583.; |
580667101 |
— | ||
|
6
|
6
414857500
Decal.h.a.c. *decal-h.a.c.
|
414857500 |
— | ||
|
7
|
7
517283900 Grille adm. *grill-intake |
517283900 |
US $9.71 |
||
|
8
|
8
570044000
Adap.hac *adap-hac
|
570044000 |
— | ||
|
9
|
9
570048900
Adap.admis.vm38*adap-air vm-38
Summit 500. Summit 583.; |
570048900 |
— | ||
|
10
|
10
414161500
New Genuine Part
|
414161500 |
— | ||
|
11
|
11
415105900
Mousse ext. *foam-lower
|
415105900 |
— | ||
|
12
|
12
570069700
Loquet *latch
|
570069700 |
— | ||
|
13
|
13
415014800 Filtre a air *filter-air |
415014800 |
US $12.19 |
||
|
14
|
14
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
15
|
15
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
16
|
16
415117800 Boyau forme *tube-formed |
415117800 |
US $13.21 |
||
|
18
|
18
414222500 Raccord en t *t-fittingSummit 500.; |
414222500 |
US $21.90 |
||
|
19
|
19
414222400 Raccord en t *fitting-t |
414222400 |
US $21.90 |
||
|
20
|
20
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
21
|
21
414518500 Raccord male *connector-maleSummit 500.; |
414518500 |
US $27.35 |
||
|
22
|
22
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
23
|
23
414865700 Crepine *filter-fuelSummit 500.; |
414865700 |
US $12.21 |
||
|
24
|
24
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
25
|
25
517298800
Deflecteur *deflector
|
517298800 |
— | ||
|
26
|
26
517249200
Support res.ess*support-tank fuel
|
517249200 |
— | ||
|
27
|
27
415060500 Amorceur *primer |
415060500 |
US $41.99 |
||
|
28
|
28
572108900
Reservoir essen*tank-fuel
|
572108900 |
— | ||
|
29
|
29
415018200 Pince *clip |
415018200 |
US $3.83 |
||
|
30
|
30
732601120
Screw-forming hex.hd.fl.din.7500
|
732601120 |
— | ||
| replacement | |||||
|
30
|
30
210361280 Screw-forming hex.hd.fl.din.7500 |
210361280 |
US $9.70 |
||
|
31
|
31
414972600 Filtre a air *filter-air |
414972600 |
US $42.81 |
||
|
32
|
32
572161200 Bouchon res.ess*cap-fuel tank |
572161200 |
US $36.69 |
||
|
33
|
33
415080200
Boyau polyure *polyurethane hose
Summit 500.; |
415080200 |
— | ||
|
34
|
34
414968801
Cable acc.vm-38*cable-throttle
Summit 500. Summit 583.; |
414968801 |
— | ||
|
35
|
35
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
36
|
36
414753300
Rondelle *washer
|
414753300 |
— | ||
|
37
|
37
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
38
|
38
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
39
|
39
561503200
Cosse femelle *terminal-femal.
|
561503200 |
— | ||
| replacement | |||||
|
39
|
39
515175253 Cosse femelle *terminal-femal |
515175253 |
US $73.10 |
||
|
40
|
40
409008500 Logement femel.*housing-female |
409008500 |
US $3.89 |
||
|
41
|
41
415079900 Gaine *protector tubeSummit 500.; |
415079900 |
US $2.67 |
||
|
42
|
42
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
43
|
43
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
44
|
44
517182100 Ressort *spring |
517182100 |
US $55.85 |
||
|
45
|
45
572086700
Logement acc. *housing-throttle
|
572086700 |
— | ||
| replacement | |||||
|
45
|
45
512060193 Logement acc. *housing-throttle |
512060193 |
US $23.41 |
||
|
46
|
46
415080200
Boyau polyure *polyurethane hose
Summit 500.; |
415080200 |
— | ||
|
47
|
47
570045500 Passe-fils *grommetSummit 500.; |
570045500 |
US $9.08 |
||
|
48
|
48
572099400
Plaque *plate
|
572099400 |
— | ||
| replacement | |||||
|
48
|
48
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
49
|
49
414473200 Screw-thread cut.ph.pan type25 |
414473200 |
US $10.70 |
||
| replacement | |||||
|
49
|
49
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
50
|
50
414612700
Inter.urgence *switch-kill
|
414612700 |
— | ||
|
51
|
51
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
52
|
52
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
53
|
53
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
53
|
53
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
54
|
54
572090300
Manette ass. *handle-assy
Summit 500. Summit 583.; |
572090300 |
— | ||
| replacement | |||||
|
54
|
54
512059153
Manette ass. *handle-assy
Summit 500. Summit 583.; |
512059153 |
— | ||
|
55
|
55
414554800 Bride a ressort*clamp-springSummit 500.; |
414554800 |
US $11.70 |
||
|
56
|
56
413701700
New Genuine Part
|
413701700 |
— | ||
|
57
|
57
403801100
Pompe a essence*pump-fuel
Summit 500.; |
403801100 |
— | ||
|
58
|
58
572077900 Couvercle adm. *cover-intake |
572077900 |
US $14.25 |
||
|
59
|
59
414438900 Rondelle *washer |
414438900 |
US $1.96 |
||
|
60
|
60
414439000 Circlip *circlip |
414439000 |
US $27.35 |
||
|
61
|
61
572044600 Couvercle acc. *cover-throttleSummit 500.; |
572044600 |
US $13.21 |
||
|
62
|
62
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
63
|
63
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
63
|
63
709200285
GROMMET
|
709200285 |
— | ||
