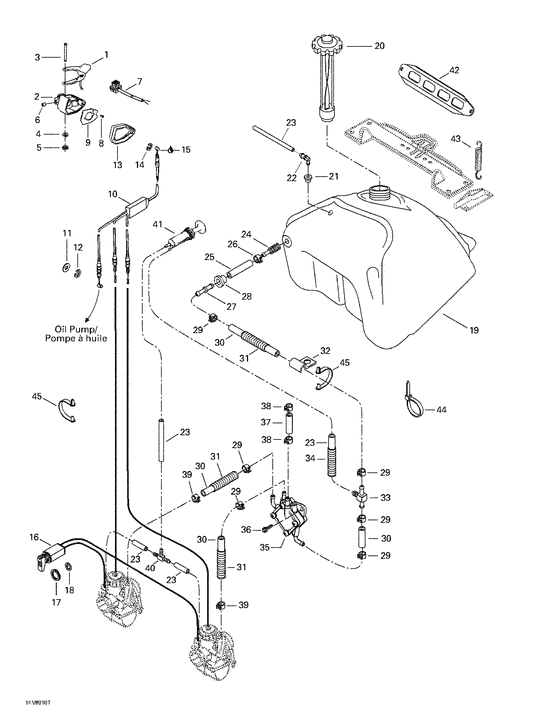

02- fuel system Diagram Bombardier Summit
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
512059144
Manette ass. *handle-assy
|
512059144 |
— | ||
| replacement | |||||
|
1
|
1
512060214 Manette ass. *handle-assy |
512060214 |
US $55.03 |
||
|
2
|
2
512059334
Logement acc. *housing-throttle
|
512059334 |
— | ||
| replacement | |||||
|
2
|
2
512060193 Logement acc. *housing-throttle |
512060193 |
US $23.41 |
||
|
3
|
3
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
4
|
4
414438900 Rondelle *washer |
414438900 |
US $1.96 |
||
|
5
|
5
414439000 Circlip *circlip |
414439000 |
US $27.35 |
||
|
6
|
6
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
7
|
7
512059146
Inter.urgence *switch-kill
|
512059146 |
— | ||
| replacement | |||||
|
7
|
7
512059482
Inter.urgence *switch-kill
|
512059482 |
— | ||
|
8
|
8
414473200 Screw-thread cut.ph.pan type25 |
414473200 |
US $10.70 |
||
| replacement | |||||
|
8
|
8
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
9
|
9
572099400
Plaque *plate
|
572099400 |
— | ||
| replacement | |||||
|
9
|
9
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
10
|
10
414883100 Cable accelerat*cable-throttle |
414883100 |
US $77.49 |
||
|
11
|
11
414753300
Rondelle *washer
|
414753300 |
— | ||
|
12
|
12
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
13
|
13
572044600 Couvercle acc. *cover-throttle |
572044600 |
US $13.21 |
||
|
14
|
14
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
15
|
15
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
16
|
16
414967000
Cable etrang. *cable-choke
|
414967000 |
— | ||
|
17
|
17
512059364 Ecrou plastique*nut-plastic |
512059364 |
US $42 |
||
|
18
|
18
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
19
|
19
572108900
Reservoir essen*tank-fuel
|
572108900 |
— | ||
|
20
|
20
572161200 Bouchon res.ess*cap-fuel tank |
572161200 |
US $36.69 |
||
|
21
|
21
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
21
|
21
709200285
GROMMET
|
709200285 |
— | ||
|
22
|
22
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
23
|
23
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
24
|
24
414865700 Crepine *filter-fuel |
414865700 |
US $12.21 |
||
|
26
|
26
513033011
Bride serrage *clamp
|
513033011 |
— | ||
|
27
|
27
414518500 Raccord male *connector-male |
414518500 |
US $27.35 |
||
|
28
|
28
570045500 Passe-fils *grommet |
570045500 |
US $9.08 |
||
|
29
|
29
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
30
|
30
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
31
|
31
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
32
|
32
415018200 Pince *clip |
415018200 |
US $3.83 |
||
|
33
|
33
414222500 Raccord en t *t-fitting |
414222500 |
US $21.90 |
||
|
34
|
34
515175442
Gaine *housing
|
515175442 |
— | ||
|
35
|
35
403801000
Pompe a essence*pump-fuel
|
403801000 |
— | ||
|
36
|
36
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
37
|
37
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
38
|
38
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
39
|
39
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
40
|
40
414222400 Raccord en t *fitting-t |
414222400 |
US $21.90 |
||
|
41
|
41
415060500 Amorceur *primer |
415060500 |
US $41.99 |
||
|
42
|
42
517249200
Support res.ess*support-tank fuel
|
517249200 |
— | ||
|
43
|
43
517182100 Ressort *spring |
517182100 |
US $55.85 |
||
|
44
|
44
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
45
|
45
414379300 Pince cable *clip-cable |
414379300 |
US $30.35 |
||
