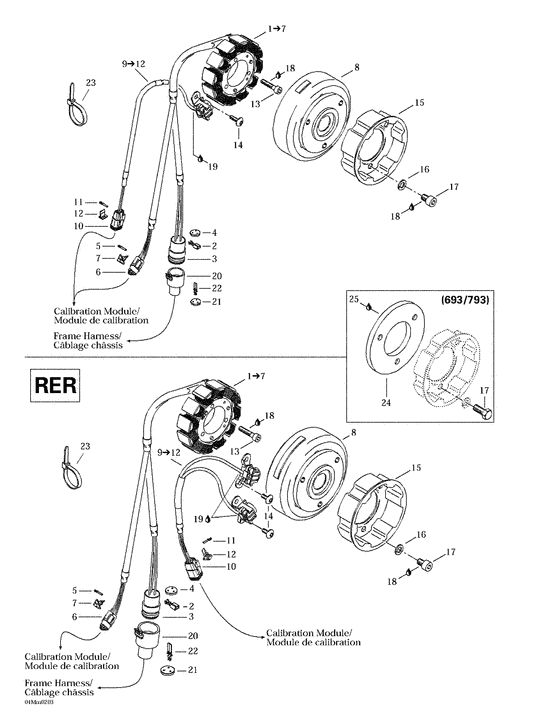

03- magneto (12V, 290W) Diagram Bombardier Summit
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $41 |
||
|
|
410922939
Volant moteur *flywheel
|
410922939 |
— | ||
|
|
420640321
Screw-taptite
|
420640321 |
— | ||
|
|
410922940 Capteur ass. *pickup-assy. |
410922940 |
US $177.45 |
||
|
|
420852532 Poulie *pulleySummit 700. Summit 800.; |
420852532 |
US $27.34 |
||
| replacement | |||||
|
|
420852533 Poulie *pulleySummit 700. Summit 800.; |
420852533 |
US $27.34 |
||
|
|
278000739 Bloc 4 circ.mal*housing-tab(4 circuits) (RER); |
278000739 |
US $21.42 |
||
|
|
207182044 Screw-hex.cap din.933Summit 700. Summit 800.; |
207182044 |
US $9.50 |
||
|
|
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
1
|
1
410922936 Plaque reacteur*plate-statorIncludes 1 - 7.; |
410922936 |
US $590.55 |
||
|
2
|
2
409011900 Cosse femelle *terminal-femal. |
409011900 |
US $50.70 |
||
|
3
|
3
409208200 Logement femel.*housing-female |
409208200 |
US $14.25 |
||
|
4
|
4
409208500
Joint *seal
|
409208500 |
— | ||
|
5
|
5
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
6
|
6
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
7
|
7
409207200 Verrou femelle *lock-female |
409207200 |
US $5.87 |
||
|
8
|
8
410922937 Volant moteur *flywheel |
410922937 |
US $351.68 |
||
|
9
|
9
410922938
Capteur ass. *pickup-assy.
Includes 9 - 12.; |
410922938 |
— | ||
|
10
|
10
409207300 Logement femel.*housing-female(2 circuits); |
409207300 |
US $10.85 |
||
|
11
|
11
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
12
|
12
515175708
Verrou femelle *lock-female
|
515175708 |
— | ||
|
13
|
13
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
14
|
14
420640321
Screw-taptite
|
420640321 |
— | ||
|
15
|
15
420852419
Poulie demarrag*pull-starting
Summit 600.; |
420852419 |
— | ||
| replacement | |||||
|
15
|
15
420852590 Pull-startingSummit 600.; |
420852590 |
US $33.07 |
||
|
16
|
16
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
17
|
17
420841520 Screw-allen m8 x 12Summit 600.; |
420841520 |
US $19.60 |
||
|
18
|
18
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
20
|
20
409207900 Logement male *housing-male |
409207900 |
US $10.17 |
||
|
21
|
21
409208500
Joint *seal
|
409208500 |
— | ||
|
22
|
22
409011100 Cosse male *terminal-male |
409011100 |
US $126.75 |
||
|
23
|
23
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
24
|
24
420866756 Contrepoids *flywheelSummit 700. Summit 800.; |
420866756 |
US $97.89 |
||
|
25
|
25
413711400
Loctite 648 *loctite-648
Summit 700. Summit 800.; |
413711400 |
— | ||
