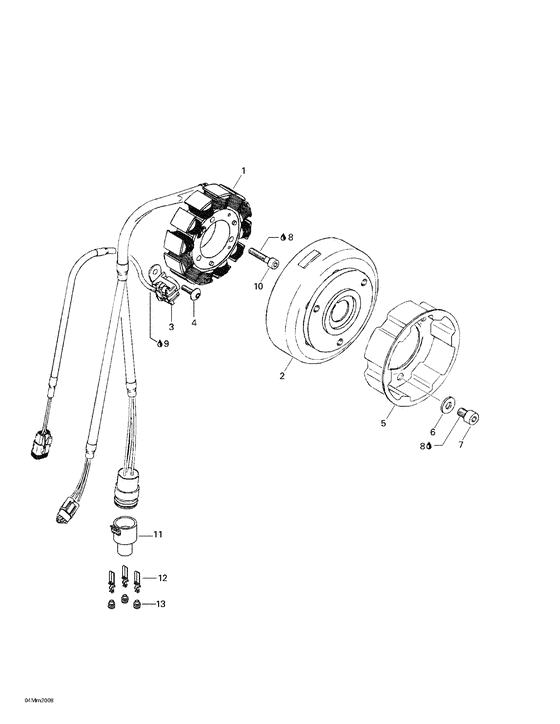

03- magneto 12v 290w Diagram Bombardier Summit
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
410922923
Plaque reacteur*plate-stator
|
410922923 |
— | ||
| replacement | |||||
|
1
|
1
410922936 Plaque reacteur*plate-stator |
410922936 |
US $590.55 |
||
|
2
|
2
410922933
Volant moteur *flywheel
|
410922933 |
— | ||
| replacement | |||||
|
2
|
2
410922937 Volant moteur *flywheel |
410922937 |
US $351.68 |
||
|
3
|
3
410922925 Capteur ass. *pickup-assy. |
410922925 |
US $87.67 |
||
|
4
|
4
420640321
Screw-taptite
|
420640321 |
— | ||
|
5
|
5
420852419
Poulie demarrag*pull-starting
|
420852419 |
— | ||
| replacement | |||||
|
5
|
5
420852590 Pull-starting |
420852590 |
US $33.07 |
||
|
6
|
6
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
7
|
7
420841520 Screw-allen m8 x 12 |
420841520 |
US $19.60 |
||
|
8
|
8
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
10
|
10
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
11
|
11
409207900 Logement male *housing-male |
409207900 |
US $10.17 |
||
|
12
|
12
409011100 Cosse male *terminal-male |
409011100 |
US $126.75 |
||
|
13
|
13
409208500
Joint *seal
|
409208500 |
— | ||
