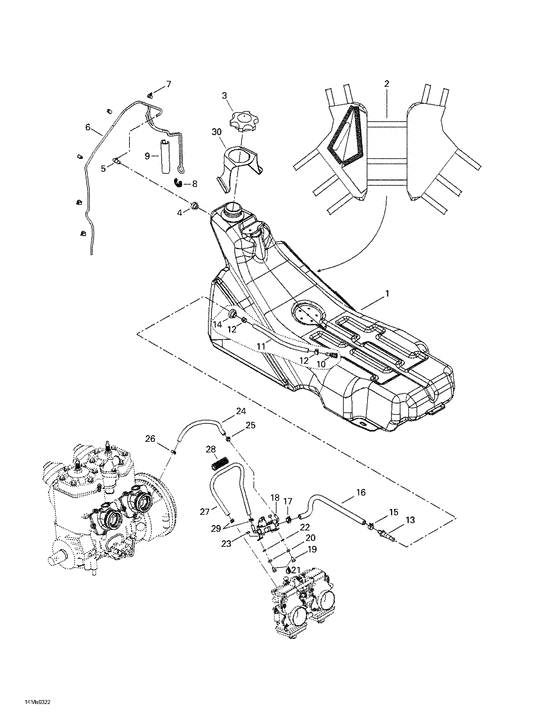

02- fuel system Diagram Bombardier Summit
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513033069
Reservoir essen*fuel tank
|
513033069 |
— | ||
| replacement | |||||
|
1
|
1
860200028
Res. ess. trans*trans. fuelkit
|
860200028 |
— | ||
|
2
|
2
513033075 Couvre reserv. *tank cover |
513033075 |
US $129.78 |
||
|
3
|
3
513033024
Bouchon essence*cap-fuel
|
513033024 |
— | ||
|
4
|
4
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
5
|
5
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
6
|
6
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
7
|
7
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
8
|
8
414818200 Ressort *spring |
414818200 |
US $3.01 |
||
|
9
|
9
512059750 Protecteur *protector |
512059750 |
US $8.13 |
||
|
10
|
10
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
11
|
11
513033070 Boyau polyure *hose-polyurethane |
513033070 |
US $12.22 |
||
|
12
|
12
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
13
|
13
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
14
|
14
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
15
|
15
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
16
|
16
513033073
Boyau forme *hose-formed
|
513033073 |
— | ||
|
17
|
17
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
18
|
18
403901811 Pompe a essence*pump-fuel |
403901811 |
US $126.45 |
||
|
19
|
19
250000035 Phil-truss m/s m6 x 25 |
250000035 |
US $19.60 |
||
|
20
|
20
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
21
|
21
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
22
|
22
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
23
|
23
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
24
|
24
513033035 Boyau forme *hose-formed |
513033035 |
US $23.41 |
||
|
25
|
25
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
26
|
26
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
27
|
27
415117800 Boyau forme *tube-formed |
415117800 |
US $13.21 |
||
|
28
|
28
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
29
|
29
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
30
|
30
513033066 Bretelle *support |
513033066 |
US $15.90 |
||
