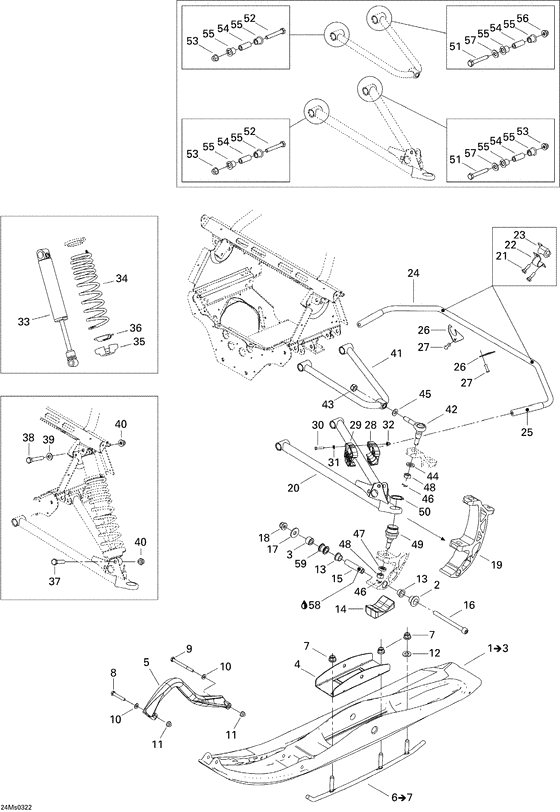

07- front suspension and ski Diagram Bombardier Summit
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
505070881 Coussinet stab.*bushing-torsion bar |
505070881 |
US $4.03 |
||
|
|
505071296
Bras inf.dr.p. *arm-lower r.h.paint
|
505071296 |
— | ||
| replacement | |||||
|
|
860509800
Bras inf.ass.d.*lower ars rh ass.
|
860509800 |
— | ||
|
|
505071047
Ski gauche ass *ski lh ass y
|
505071047 |
— | ||
| replacement | |||||
|
|
505071392
Ski gauche ass *ski lh ass y
|
505071392 |
— | ||
|
|
505071281
Bras inf.gauche*arm-lower lh
|
505071281 |
— | ||
| replacement | |||||
|
|
860509900
Bras inf.ass.g.*lower ars lh ass.
|
860509900 |
— | ||
|
|
505070791
Bras sup.peint *arm-upper paint
|
505070791 |
— | ||
|
1
|
1
505071046
Ski droit ass. *ski rh ass y
Includes 1 - 3.; |
505071046 |
— | ||
| replacement | |||||
|
1
|
1
505071391 Ski droit ass. *ski rh ass yIncludes 1 - 3.; |
505071391 |
US $126.45 |
||
|
2
|
2
505070743 Coussinet *cushion |
505070743 |
US $13.21 |
||
|
3
|
3
505070823 Coussinet *cushion |
505070823 |
US $11.17 |
||
|
4
|
4
505070745 Renfort ski p. *reinf-ski paint |
505070745 |
US $16 |
||
|
5
|
5
505070963 Poignee *handle |
505070963 |
US $35.77 |
||
|
6
|
6
505070891
Lisse au carbure
Includes 6 - 7.; |
505070891 |
— | ||
|
7
|
7
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
8
|
8
207085044 Screw-hex.cap din.931 |
207085044 |
US $19.20 |
||
|
9
|
9
230080044 Screw-hex.cap din.931 |
230080044 |
US $19.60 |
||
|
10
|
10
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
11
|
11
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
12
|
12
399910100
Washer-flat, yic
|
399910100 |
— | ||
|
13
|
13
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
13
|
13
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
14
|
14
505070671
Butee de ski *stopper-ski
|
505070671 |
— | ||
|
15
|
15
506133300 Entretoise *spacer |
506133300 |
US $22.44 |
||
|
16
|
16
250000069
Screw-socket hd. m10 x 125
|
250000069 |
— | ||
|
17
|
17
234002410 Washer-flat din.9021b |
234002410 |
US $9.60 |
||
|
18
|
18
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
19
|
19
505071214
Jambe ski usine*leg-ski mach.rh
|
505071214 |
— | ||
|
20
|
20
860509500
Bras inf.ass.d.*lower ars rh ass.summit
Includes 20, 49 and 50; |
860509500 |
— | ||
| replacement | |||||
|
20
|
20
860509800
Bras inf.ass.d.*lower ars rh ass.
Includes 20, 49 and 50; |
860509800 |
— | ||
|
20
|
20
860509400
Bras inf.ass.g.*lower ars lh ass.summit
Includes 20, 49 and 50; |
860509400 |
— | ||
| replacement | |||||
|
20
|
20
860509900
Bras inf.ass.g.*lower ars lh ass.
Includes 20, 49 and 50; |
860509900 |
— | ||
|
21
|
21
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
22
|
22
506095800 Bride *clamp |
506095800 |
US $34.10 |
||
|
23
|
23
505070665 Coussinet stab.*bushing-torsion bar |
505070665 |
US $4.40 |
||
|
24
|
24
505070785
Stabilisateur p*stabilisator-p
|
505070785 |
— | ||
|
25
|
25
505070750 Embout stabilis*boot-stabilisator |
505070750 |
US $9.78 |
||
|
26
|
26
505070874
Bouchon *plug-end
|
505070874 |
— | ||
|
27
|
27
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
28
|
28
505070667
Demi couliss.dr*half-slider rh
|
505070667 |
— | ||
|
29
|
29
505070668
Demi couliss.ga*half-slider lh
|
505070668 |
— | ||
| replacement | |||||
|
29
|
29
505071269
Demi couliss.ga*half-slider lh
|
505071269 |
— | ||
|
30
|
30
207152544 Screw-hex.cap din.933 |
207152544 |
US $8.70 |
||
|
31
|
31
391301700
Rondelle *washer
|
391301700 |
— | ||
|
32
|
32
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
33
|
33
505071135
Amort. avant *shock-front
|
505071135 |
— | ||
| replacement | |||||
|
33
|
33
505071644
Amort. avant *shock-front
|
505071644 |
— | ||
|
34
|
34
505070760
Ressort peint *spring-paint
|
505070760 |
— | ||
|
35
|
35
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| replacement | |||||
|
35
|
35
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
36
|
36
503141600
Capuchon *cap
|
503141600 |
— | ||
|
37
|
37
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
38
|
38
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
39
|
39
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
40
|
40
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
41
|
41
505071222
Bras sup.peint *arm-upper paint
|
505071222 |
— | ||
| replacement | |||||
|
41
|
41
505071857 Bras sup. dr *arm-upp right |
505071857 |
US $194.79 |
||
|
42
|
42
505071110
Joint rotule su*joint-ball upper
|
505071110 |
— | ||
|
43
|
43
250000047 Nut-stop elastic din.985 |
250000047 |
US $2.45 |
||
|
44
|
44
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
45
|
45
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
46
|
46
211400017 Goupille fendue*pin-cotter |
211400017 |
US $20.50 |
||
|
47
|
47
505071184
Entretoise *spacer
|
505071184 |
— | ||
|
48
|
48
232221414 Nut-hex.castle din.935 |
232221414 |
US $20.50 |
||
|
49
|
49
505071074
Joint rotule *ball joint
|
505071074 |
— | ||
| replacements | |||||
|
49
|
49
505071673 Cale epaisseur *shim |
505071673 |
US $17.29 |
||
|
49
|
49
505072048
Joint rotule *ball joint
|
505072048 |
— | ||
|
50
|
50
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
51
|
51
250000114 Cone screw m10 x 75 |
250000114 |
US $5.83 |
||
|
52
|
52
207007044 Screw-hex.cap iso.4014 |
207007044 |
US $29.90 |
||
|
53
|
53
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
54
|
54
505070960 Douille alum. *bushing-alum. |
505070960 |
US $44 |
||
|
55
|
55
505070566 Coussinet *bushing |
505070566 |
US $2.30 |
||
|
56
|
56
233601416 Nut-locking elastic din.982 |
233601416 |
US $24 |
||
|
57
|
57
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
58
|
58
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
59
|
59
505071215 Entretoise *spacer |
505071215 |
US $29.34 |
||
