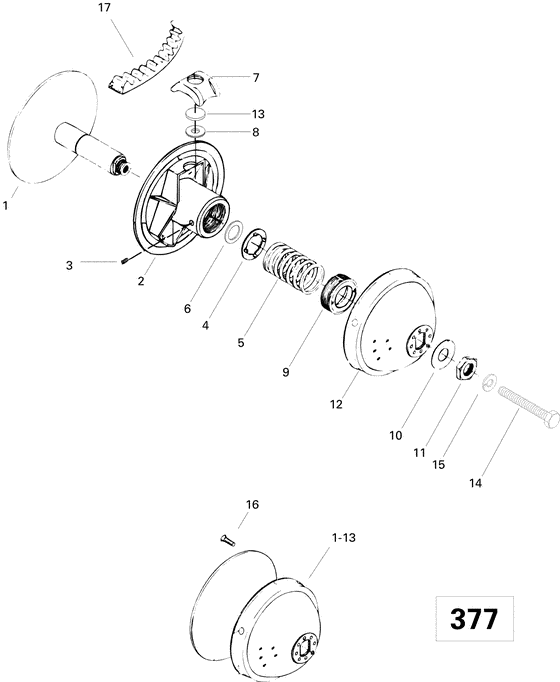

05- drive pulley e Diagram Bombardier Touring
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
417209800
Drive pulley ass'y
Includes 1 to 13; |
417209800 |
— | ||
|
1
|
1
417120200
Demi-poulie fixe
|
417120200 |
— | ||
|
2
|
2
417120300
Demi-poulie coulissante
|
417120300 |
— | ||
|
3
|
3
417116800
Vis blocage *screw-locking
|
417116800 |
— | ||
|
4
|
4
417116200
Rondelle guide *washer-guide
|
417116200 |
— | ||
|
5
|
5
417118400
Ressort rou.ble*spring red/ble
|
417118400 |
— | ||
|
6
|
6
417116100
Circlip *circlip
|
417116100 |
— | ||
|
7
|
7
417118100
Bloc centrifuge*block-centrifu
|
417118100 |
— | ||
|
8
|
8
417120400 Pesee calibrat.*weigh-adjust. |
417120400 |
US $18.21 |
||
|
9
|
9
417117300
Sup.coussinet *suppo.-bushing
|
417117300 |
— | ||
|
10
|
10
417116500
Rondelle retenu*washer-retaine
|
417116500 |
— | ||
|
11
|
11
417118300 Ecrou *nut |
417118300 |
US $30.57 |
||
|
12
|
12
417118600
Capuchon *cap
|
417118600 |
— | ||
| replacement | |||||
|
12
|
12
417125200
Capuchon *cap
|
417125200 |
— | ||
|
13
|
13
417114500
Capsule *capsule
|
417114500 |
— | ||
|
14
|
14
417113800 Boulon *bolt-pulley drive |
417113800 |
US $13.21 |
||
|
15
|
15
392002800 Washer-lock helical spring |
392002800 |
US $7.10 |
||
|
16
|
16
732600021
Screw-forming hex.hd.gm6174m
|
732600021 |
— | ||
| replacement | |||||
|
16
|
16
210361686
Screw-forming hex.hd.gm6174m
|
210361686 |
— | ||
|
17
|
17
414883300
Courroie *belt-drive
|
414883300 |
— | ||
| replacement | |||||
|
17
|
17
415060600 Courroie *belt-drive |
415060600 |
US $121.18 |
||
