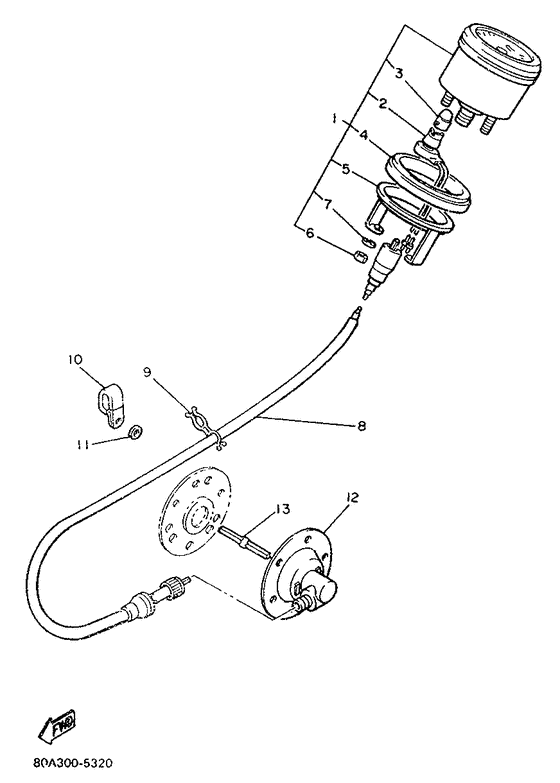

Meter Diagram Yamaha BR250 Bravo
- Model code
- 81F
- Engine Capacity
- 246
- Year
- 1996
- Sales region
- Europe (General) (999)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
80V-83510-20-00 Speedometer Assy (Km/h) |
80V-83510-20-00 |
from US $115.50 |
||
|
02
|
02
8V7-83536-40-00 Socket Cord Assy |
8V7-83536-40-00 |
from US $26.35 |
||
| replacement | |||||
|
02
|
02
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
04
|
04
8G6-83523-00-00 Damper |
8G6-83523-00-00 |
from US $10.64 |
||
|
05
|
05
8G6-83519-00-00 Bracket, Meter |
8G6-83519-00-00 |
from US $17.95 |
||
|
06
|
06
95302-05600-00 Nut, Hexagon |
95302-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
07
|
07
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
08
|
08
8Y8-83550-00-00 Speedometer Cable Assy |
8Y8-83550-00-00 |
from US $21.23 |
||
|
09
|
09
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
10
|
10
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
11
|
11
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
11
|
11
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
11
|
11
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
12
|
12
8R4-47700-00-00
Meter Gear Housing
|
8R4-47700-00-00 |
— | ||
|
13
|
13
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
