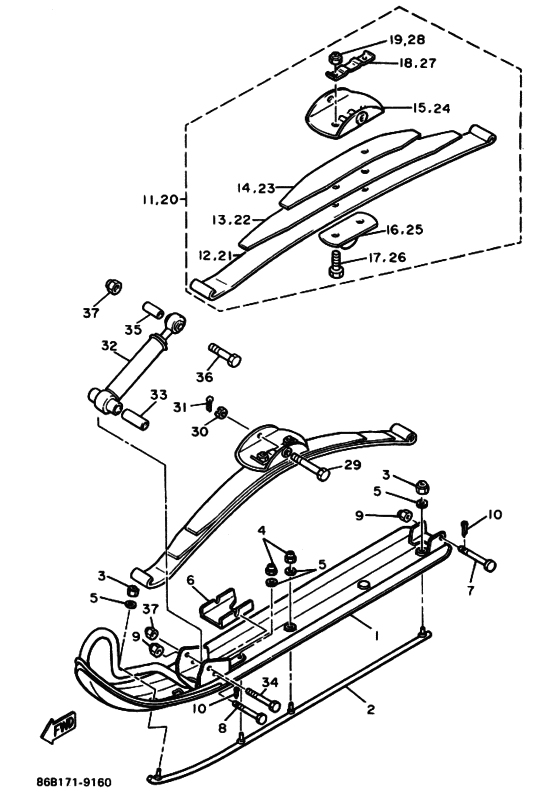

Ski Diagram Yamaha BR250 Bravo Transporter
- Model code
- 8BC1
- Engine Capacity
- 246
- Year
- 1994
- Sales region
- Europe (010)
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Color Variant
- A
- Power
- 18 hp
- Model
- Bravo Transporter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86C-23710-00-00
Ski Comp. 1
|
86C-23710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
8E3-23710-09-00
Ski Comp. 1
|
8E3-23710-09-00 |
— | ||
|
2
|
2
8E3-23731-01-00 Runner 1 |
8E3-23731-01-00 |
from US $37.80 |
||
| replacement | |||||
|
2
|
2
8E3-23731-01-XX
New Genuine Part
|
8E3-23731-01-XX |
— | ||
|
3
|
3
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
3
|
3
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
4
|
4
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
5
|
5
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
888-23735-00-00 Plate, Wear 1 |
888-23735-00-00 |
from US $39.38 |
||
|
7
|
7
90102-08028-00 Bolt, With Hole |
90102-08028-00 |
from US $4.53 |
||
|
8
|
8
90102-08027-00 Bolt, With Hole |
90102-08027-00 |
from US $5.95 |
||
|
9
|
9
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
9
|
9
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
10
|
10
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
11
|
11
8R4-23760-00-00 Spring Assembly 1 |
8R4-23760-00-00 |
US $169.24 |
||
| replacement | |||||
|
11
|
11
8R4-23760-10-00 Spring Assy 1 |
8R4-23760-10-00 |
US $169.24 |
||
|
12
|
12
8F3-23761-00-00
Leaf 1
|
8F3-23761-00-00 |
— | ||
| replacement | |||||
|
12
|
12
8F3-23761-10-00
Leaf 1
|
8F3-23761-10-00 |
— | ||
|
13
|
13
8F3-23762-00-00 Leaf 2 |
8F3-23762-00-00 |
from US $51.05 |
||
| replacement | |||||
|
13
|
13
8F3-23762-10-00 Leaf 2 |
8F3-23762-10-00 |
from US $51.05 |
||
|
14
|
14
8F3-23763-00-00 Leaf 3 |
8F3-23763-00-00 |
from US $34.15 |
||
| replacement | |||||
|
14
|
14
8F3-23763-10-00 Leaf 3 |
8F3-23763-10-00 |
from US $34.15 |
||
|
15
|
15
8G6-23766-00-00 Saddle 1 |
8G6-23766-00-00 |
from US $37.30 |
||
|
16
|
16
878-23768-00-00 Seat, Spring 1 |
878-23768-00-00 |
US $34.92 |
||
|
17
|
17
90109-105E7-00
Bolt(83T)
|
90109-105E7-00 |
— | ||
|
18
|
18
90215-10155-00 Washer, Lock |
90215-10155-00 |
from US $9.78 |
||
|
19
|
19
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
20
|
20
8R4-23770-00-00 Spring Assy 2 |
8R4-23770-00-00 |
from US $225.20 |
||
| replacement | |||||
|
20
|
20
8R4-23770-10-00 Spring Assy 2 |
8R4-23770-10-00 |
from US $225.20 |
||
|
21
|
21
8F3-23761-00-00
Leaf 1
|
8F3-23761-00-00 |
— | ||
| replacement | |||||
|
21
|
21
8F3-23761-10-00
Leaf 1
|
8F3-23761-10-00 |
— | ||
|
22
|
22
8F3-23762-00-00 Leaf 2 |
8F3-23762-00-00 |
from US $51.05 |
||
| replacement | |||||
|
22
|
22
8F3-23762-10-00 Leaf 2 |
8F3-23762-10-00 |
from US $51.05 |
||
|
23
|
23
8F3-23763-00-00 Leaf 3 |
8F3-23763-00-00 |
from US $34.15 |
||
| replacement | |||||
|
23
|
23
8F3-23763-10-00 Leaf 3 |
8F3-23763-10-00 |
from US $34.15 |
||
|
24
|
24
8G6-23766-00-00 Saddle 1 |
8G6-23766-00-00 |
from US $37.30 |
||
|
25
|
25
878-23768-00-00 Seat, Spring 1 |
878-23768-00-00 |
US $34.92 |
||
|
26
|
26
90109-105E7-00
Bolt(83T)
|
90109-105E7-00 |
— | ||
|
27
|
27
90215-10155-00 Washer, Lock |
90215-10155-00 |
from US $9.78 |
||
|
28
|
28
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
29
|
29
90102-12030-00 Bolt, With Hole |
90102-12030-00 |
from US $7.93 |
||
|
30
|
30
90171-12040-00 Nut |
90171-12040-00 |
from US $3.97 |
||
| replacement | |||||
|
30
|
30
95307-12900-00 Nut, Castle |
95307-12900-00 |
from US $3.97 |
||
|
31
|
31
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
32
|
32
8J5-23350-00-00
Shock Absorber Assembly
|
8J5-23350-00-00 |
— | ||
|
33
|
33
90387-08262-00 Collar |
90387-08262-00 |
from US $3.97 |
||
|
34
|
34
97001-08055-00 Bolt |
97001-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
34
|
34
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
35
|
35
90387-08224-00 Collar |
90387-08224-00 |
from US $2.83 |
||
|
36
|
36
97001-08070-00 Bolt, Flat Head |
97001-08070-00 |
from US $4.68 |
||
| replacement | |||||
|
36
|
36
97027-08070-00 Bolt, Hexagon |
97027-08070-00 |
from US $4.68 |
||
|
37
|
37
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
37
|
37
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
