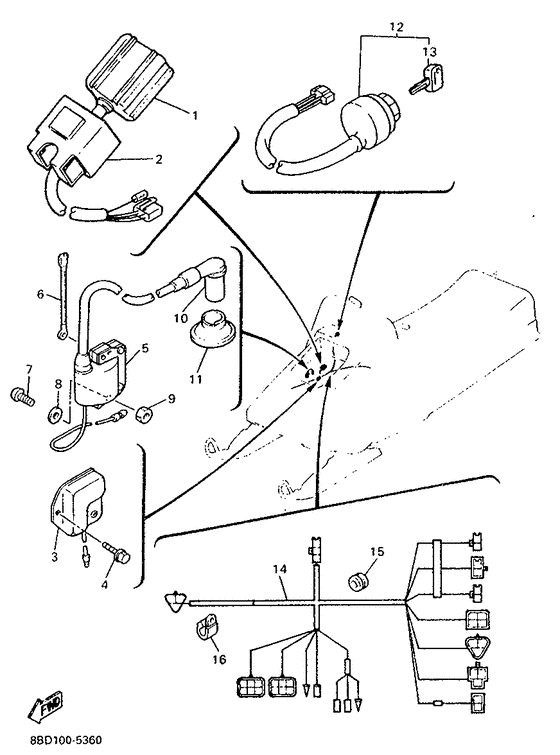

Electrical 1 Diagram Yamaha BR250 Bravo
- Model code
- 8BD2
- Engine Capacity
- 246
- Year
- 1995
- Sales region
- Canada (999)
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8AU-85540-00-00 C.d.i. Unit Assy |
8AU-85540-00-00 |
from US $106.33 |
||
|
02
|
02
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
03
|
03
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
04
|
04
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
04
|
04
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
05
|
05
86B-82310-00-00 Ignition Coil Assy |
86B-82310-00-00 |
from US $71.71 |
||
| replacements | |||||
|
05
|
05
86B-82310-10-00 Ignition Coil Assy |
86B-82310-10-00 |
from US $74.77 |
||
|
05
|
05
86B-82310-11-00 Ignition Coil Assy |
86B-82310-11-00 |
from US $74.77 |
||
|
05
|
05
86B-82310-12-00 |
86B-82310-12-00 |
from US $74.77 |
||
|
05
|
05
86B-82310-13-00 Ignition Coil Assy |
86B-82310-13-00 |
from US $74.77 |
||
|
06
|
06
83Y-82318-00-00 Wire, Sub-Lead |
83Y-82318-00-00 |
from US $4.96 |
||
|
07
|
07
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
10
|
10
5K1-82370-20-00
Plug Cap Assy
|
5K1-82370-20-00 |
— | ||
|
11
|
11
8G5-82372-00-00 Seal, Plug Cap |
8G5-82372-00-00 |
from US $3.38 |
||
|
12
|
12
8R4-82510-20-00 Main Switch Assy |
8R4-82510-20-00 |
from US $93.67 |
||
|
13
|
13
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
14
|
14
8BD-82590-00-00
Wire Harness Assy
|
8BD-82590-00-00 |
— | ||
|
15
|
15
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $2.08 |
||
|
16
|
16
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
