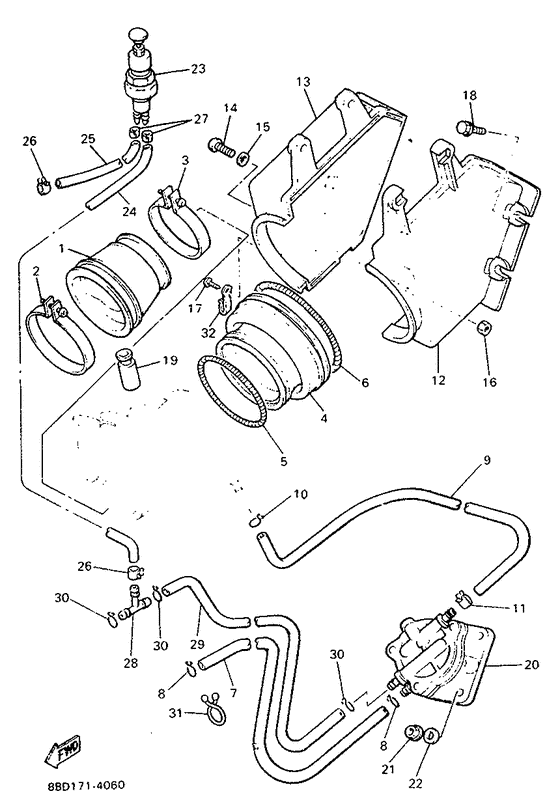

Intake Diagram Yamaha BR250 Bravo
- Model code
- 8BD2
- Engine Capacity
- 246
- Year
- 1995
- Sales region
- Canada (999)
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8R4-13555-00-00 Manifold, Intake |
8R4-13555-00-00 |
from US $16.72 |
||
|
02
|
02
90460-64065-00 Hose Clamp Assy |
90460-64065-00 |
from US $6.80 |
||
| replacement | |||||
|
02
|
02
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $5.06 |
||
|
03
|
03
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
04
|
04
8R4-14453-00-00 Joint, Air Cleaner 1 |
8R4-14453-00-00 |
from US $8.32 |
||
|
05
|
05
905-06062-61-00 Spring, Tension (8R4) |
905-06062-61-00 |
from US $1.98 |
||
|
06
|
06
90506-06262-00 Spring, Tension |
90506-06262-00 |
from US $1.98 |
||
|
07
|
07
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $5.06 |
||
|
08
|
08
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
08
|
08
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
09
|
09
91A20-07014-00 Hose |
91A20-07014-00 |
from US $3.97 |
||
| replacement | |||||
|
09
|
09
91A21-07020-00 Hose |
91A21-07020-00 |
from US $4.30 |
||
|
10
|
10
90467-11009-00 Clip |
90467-11009-00 |
from US $1.07 |
||
|
11
|
11
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.52 |
||
|
12
|
12
8R4-14431-00-00
Silencer, Intake 1
|
8R4-14431-00-00 |
— | ||
|
13
|
13
8R4-14441-01-00 Silencer 2 |
8R4-14441-01-00 |
from US $7.08 |
||
|
14
|
14
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
15
|
15
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
15
|
15
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
16
|
16
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
16
|
16
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
17
|
17
97702-60510-00 Screw, Tapping |
97702-60510-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
97707-60510-00 Screw, Tapping |
97707-60510-00 |
from US $0.59 |
||
|
18
|
18
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
19
|
19
8J5-26352-00-00 Boot |
8J5-26352-00-00 |
from US $1.70 |
||
|
20
|
20
8A5-24410-02-00 Fuel Pump Assy |
8A5-24410-02-00 |
from US $98.14 |
||
|
21
|
21
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
22
|
22
90201-06727-00 Washer, Plate (8H9) |
90201-06727-00 |
from US $1.28 |
||
|
23
|
23
8X8-24360-01-00 Primer Pump AssyUr for u.s.a/canada |
8X8-24360-01-00 |
from US $103.07 |
||
|
24
|
24
91A20-03028-00 Tube, Flexible VinylUr for u.s.a/canada |
91A20-03028-00 |
from US $1.48 |
||
| replacement | |||||
|
24
|
24
91A20-03036-00 Tube, Flexible VinylUr for u.s.a/canada |
91A20-03036-00 |
from US $2.64 |
||
|
25
|
25
91A20-03036-00 Tube, Flexible VinylUr for u.s.a/canada |
91A20-03036-00 |
from US $2.64 |
||
|
26
|
26
90467-07055-00 ClipUr for u.s.a/canada |
90467-07055-00 |
from US $1.60 |
||
| replacement | |||||
|
26
|
26
90467-07093-00 ClipUr for u.s.a/canada |
90467-07093-00 |
from US $1.70 |
||
|
27
|
27
90468-02025-00 ClipUr for u.s.a/canada |
90468-02025-00 |
from US $2.91 |
||
|
28
|
28
815-24379-00-00 Pipe, Joint 4Ur for u.s.a/canada |
815-24379-00-00 |
from US $11.66 |
||
|
29
|
29
91A20-07014-00 HoseUr for u.s.a/canada |
91A20-07014-00 |
from US $3.97 |
||
| replacement | |||||
|
29
|
29
91A21-07020-00 HoseUr for u.s.a/canada |
91A21-07020-00 |
from US $4.30 |
||
|
30
|
30
90467-11009-00 ClipUr for u.s.a/canada |
90467-11009-00 |
from US $1.07 |
||
|
31
|
31
90464-16039-00 Clamp (3Y2)Ur for u.s.a/canada |
90464-16039-00 |
from US $1.81 |
||
|
32
|
32
90465-08333-00 Clamp |
90465-08333-00 |
from US $13.31 |
||
