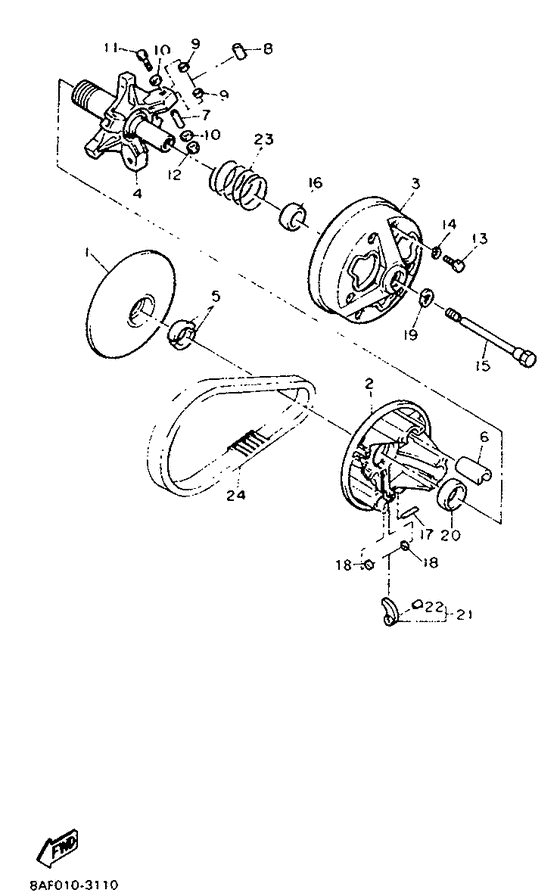

Primary sheave Diagram Yamaha BR250 Bravo
- Model code
- 8BD2
- Engine Capacity
- 246
- Year
- 1995
- Sales region
- Canada (999)
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
84J-17611-00-00 Sheave, Primary Fixed |
84J-17611-00-00 |
from US $78.02 |
||
|
02
|
02
8V0-17621-01-00
Sheave, Primary Sliding
|
8V0-17621-01-00 |
— | ||
|
03
|
03
8V0-17631-00-00 Cap |
8V0-17631-00-00 |
from US $77.37 |
||
|
04
|
04
8V0-17640-02-00
Spider Complete
|
8V0-17640-02-00 |
— | ||
|
05
|
05
8V0-17639-00-00 Stopper |
8V0-17639-00-00 |
from US $6.94 |
||
|
06
|
06
88X-17653-00-00 Slider |
88X-17653-00-00 |
from US $10.06 |
||
|
07
|
07
90387-057W5-00 Collar |
90387-057W5-00 |
from US $6.80 |
||
|
08
|
08
90387-087W7-00 Collar |
90387-087W7-00 |
from US $10.68 |
||
|
09
|
09
90202-08205-00 Washer, Plate |
90202-08205-00 |
from US $4.58 |
||
|
10
|
10
90201-050P9-00 Washer, Plate |
90201-050P9-00 |
from US $1.39 |
||
|
11
|
11
97027-05035-00 Bolt, Hexagon |
97027-05035-00 |
from US $2.90 |
||
|
12
|
12
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
13
|
13
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
14
|
14
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
15
|
15
8V0-17647-00-00 Bolt (L=156.5Mm) |
8V0-17647-00-00 |
from US $11.93 |
||
| replacement | |||||
|
15
|
15
8V0-17647-10-00 Bolt (L=156.5Mm) |
8V0-17647-10-00 |
from US $11.93 |
||
|
16
|
16
90389-28032-00 Bush |
90389-28032-00 |
from US $34.68 |
||
|
17
|
17
93607-44190-00 Pin, Dowel |
93607-44190-00 |
from US $4.99 |
||
|
18
|
18
90201-077F5-00 Washer, Plate |
90201-077F5-00 |
from US $1.25 |
||
|
19
|
19
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.74 |
||
|
20
|
20
90389-40029-00 Bush |
90389-40029-00 |
from US $39.65 |
||
|
21
|
21
8V8-W176A-00-00 Weight, With Bush |
8V8-W176A-00-00 |
from US $61.77 |
||
|
22
|
22
90386-07152-00 Bush |
90386-07152-00 |
from US $14.99 |
||
|
23
|
23
90501-554E8-00 Spring, Compression |
90501-554E8-00 |
from US $18.84 |
||
|
24
|
24
89X-17641-00-00 V-Belt |
89X-17641-00-00 |
from US $68.10 |
||
| replacement | |||||
|
24
|
24
89X-17641-01-00 V-Belt |
89X-17641-01-00 |
from US $63.86 |
||
